Component Locator
›
Stationary Windows Connector End Views
Stationary Windows Connector End Views

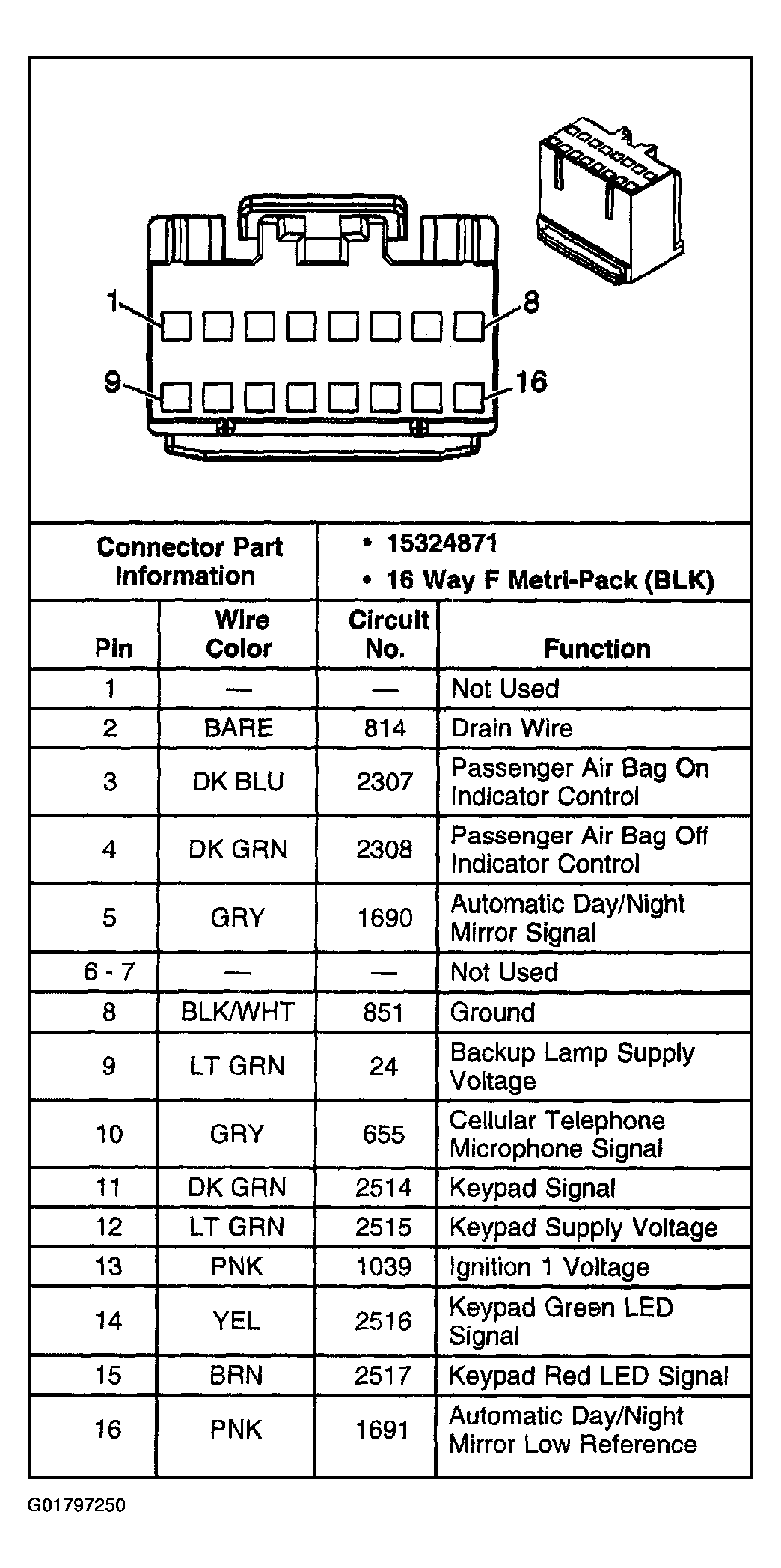

Fig 1: Inside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
