ABS Component Views

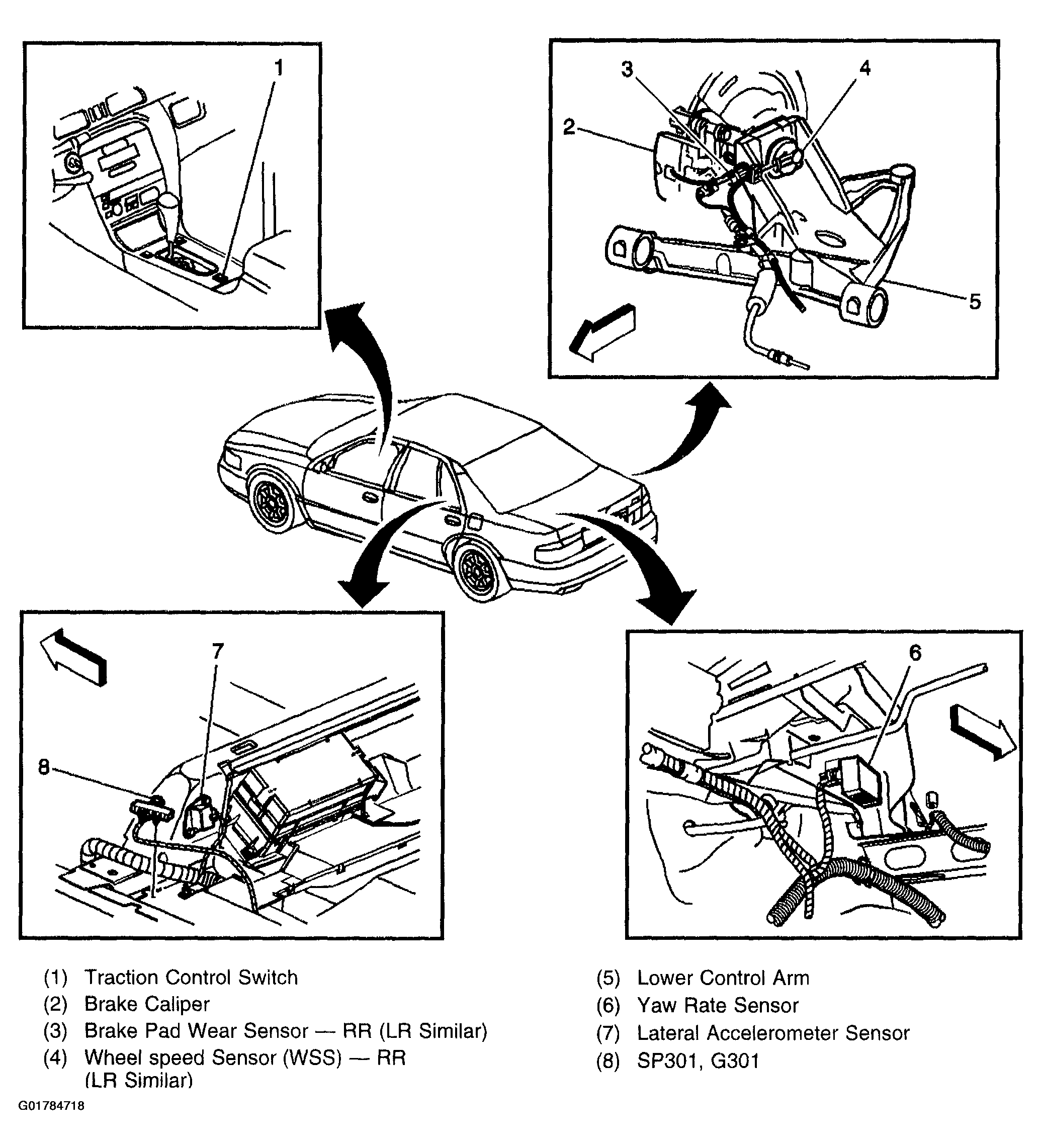

Fig 1: Identifying Anti-Lock Brake System Sub-System (1 Of 2)
G01784718Courtesy of GENERAL MOTORS CORP.

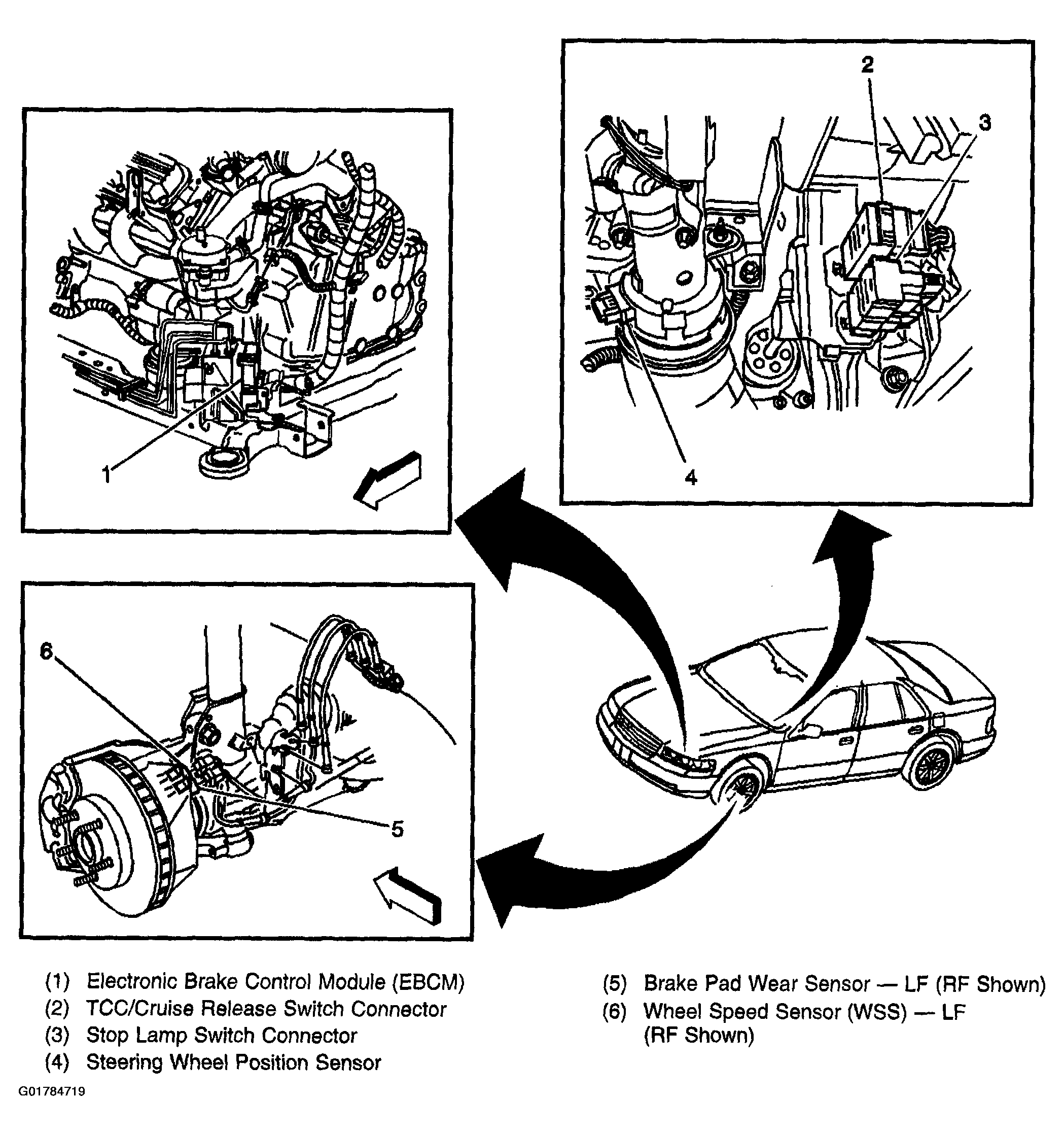

Fig 2: Identifying Anti-Lock Brake System Sub-System (2 Of 2)
G01784719Courtesy of GENERAL MOTORS CORP.
