Steering Column Module Connector End View C1

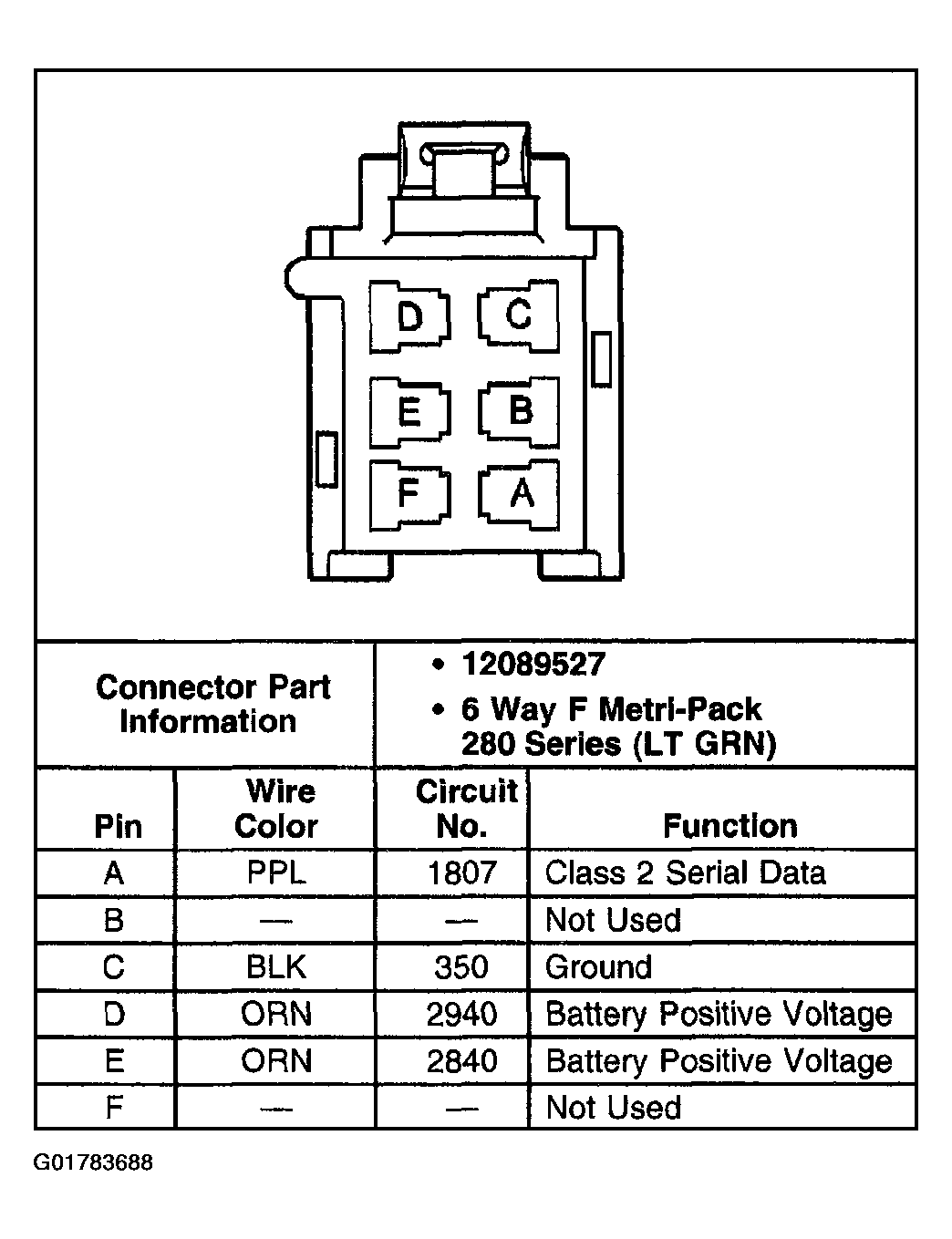

Fig 1: Steering Column Module C1
G01783688Courtesy of GENERAL MOTORS CORP.
