Steering Column Module Connector End View C2

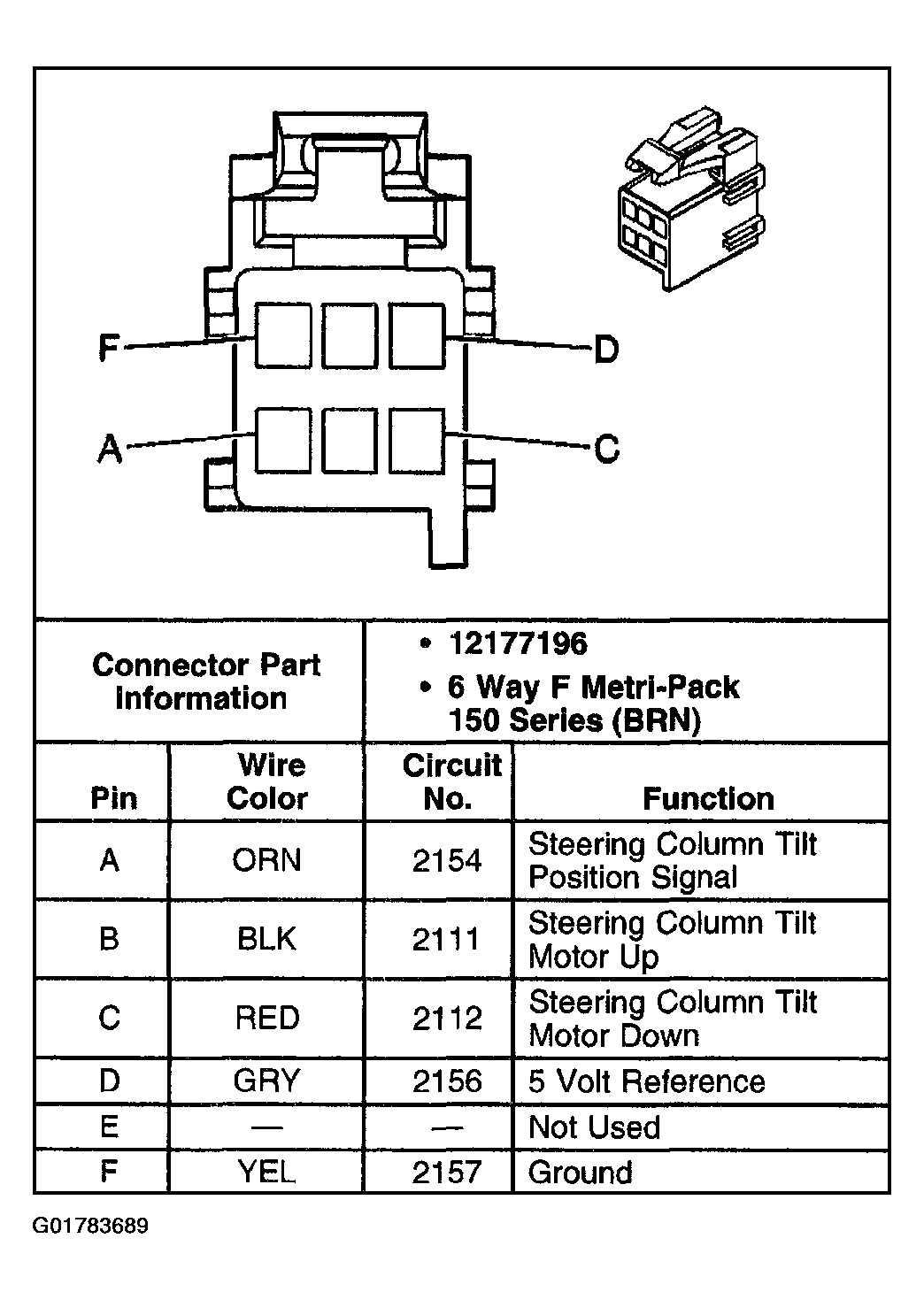

Fig 1: Steering Column Module C2
G01783689Courtesy of GENERAL MOTORS CORP.
