Steering Column Module Connector End View C3

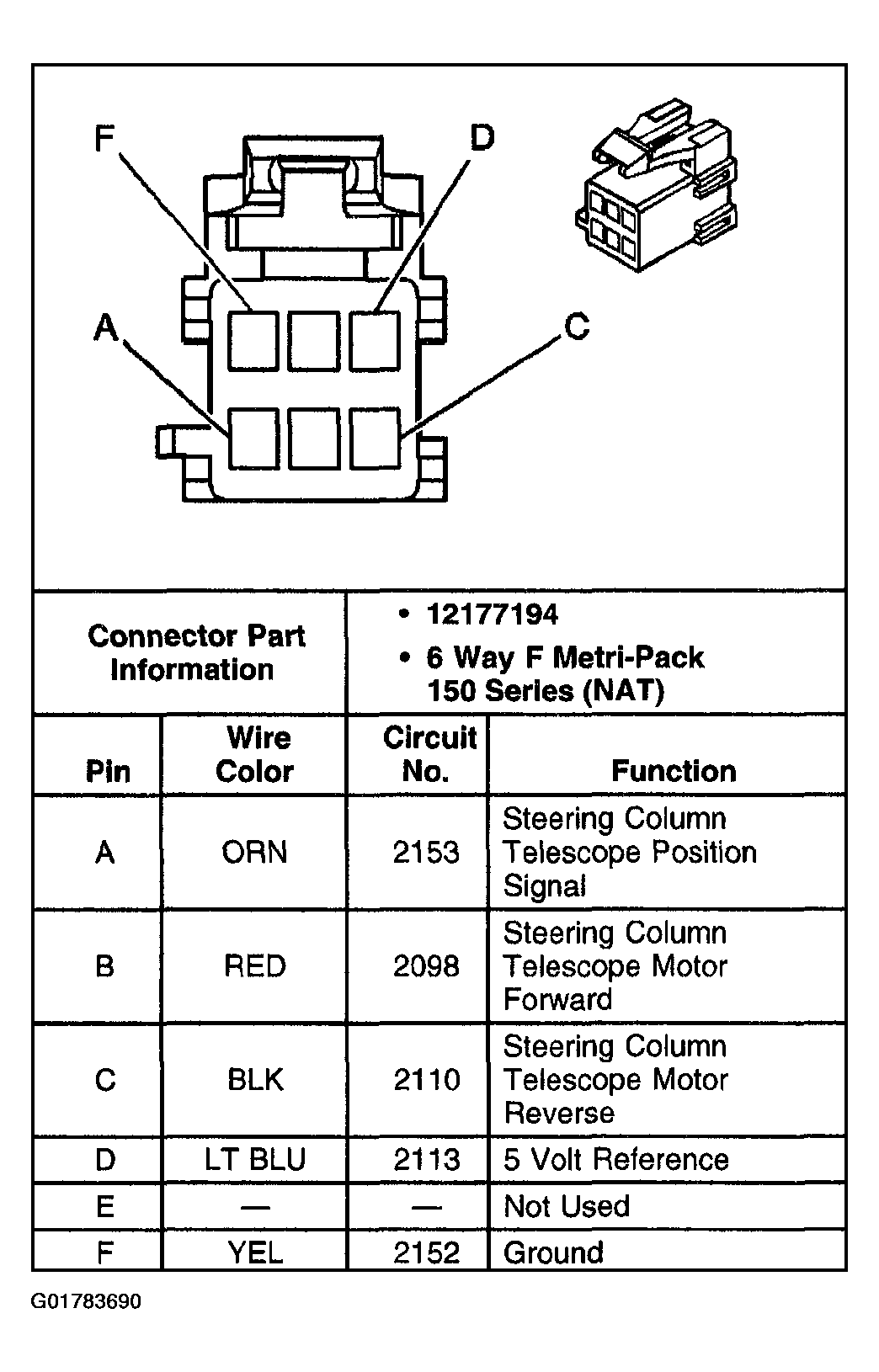

Fig 1: Steering Column Module C3
G01783690Courtesy of GENERAL MOTORS CORP.
