Steering Column Module Connector End View C4

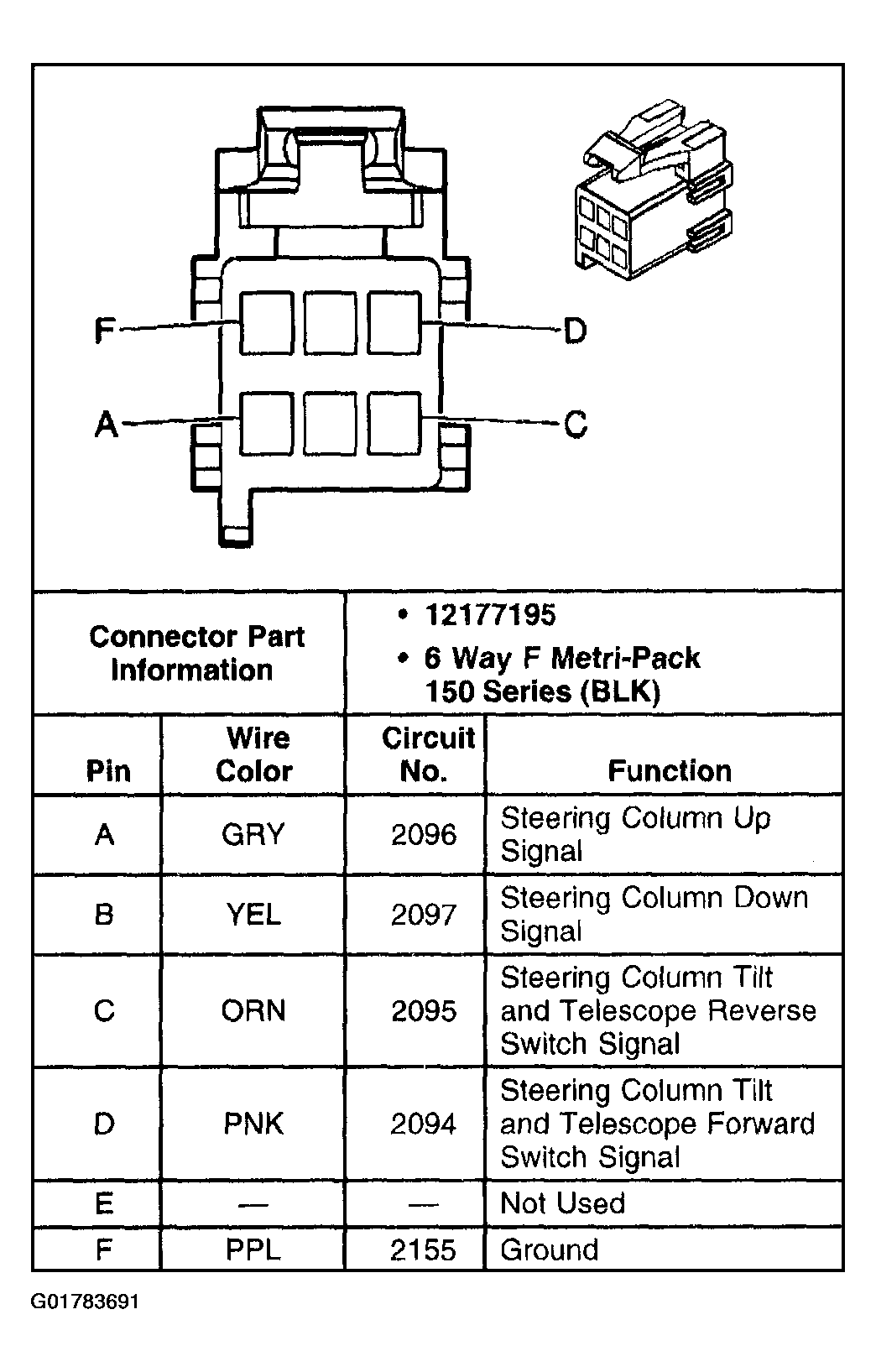

Fig 1: Steering Column Module C4
G01783691Courtesy of GENERAL MOTORS CORP.
