Automatic Level Control (ALC) Compressor Connector End View
Automatic Level Control (ALC) Compressor Connector End View

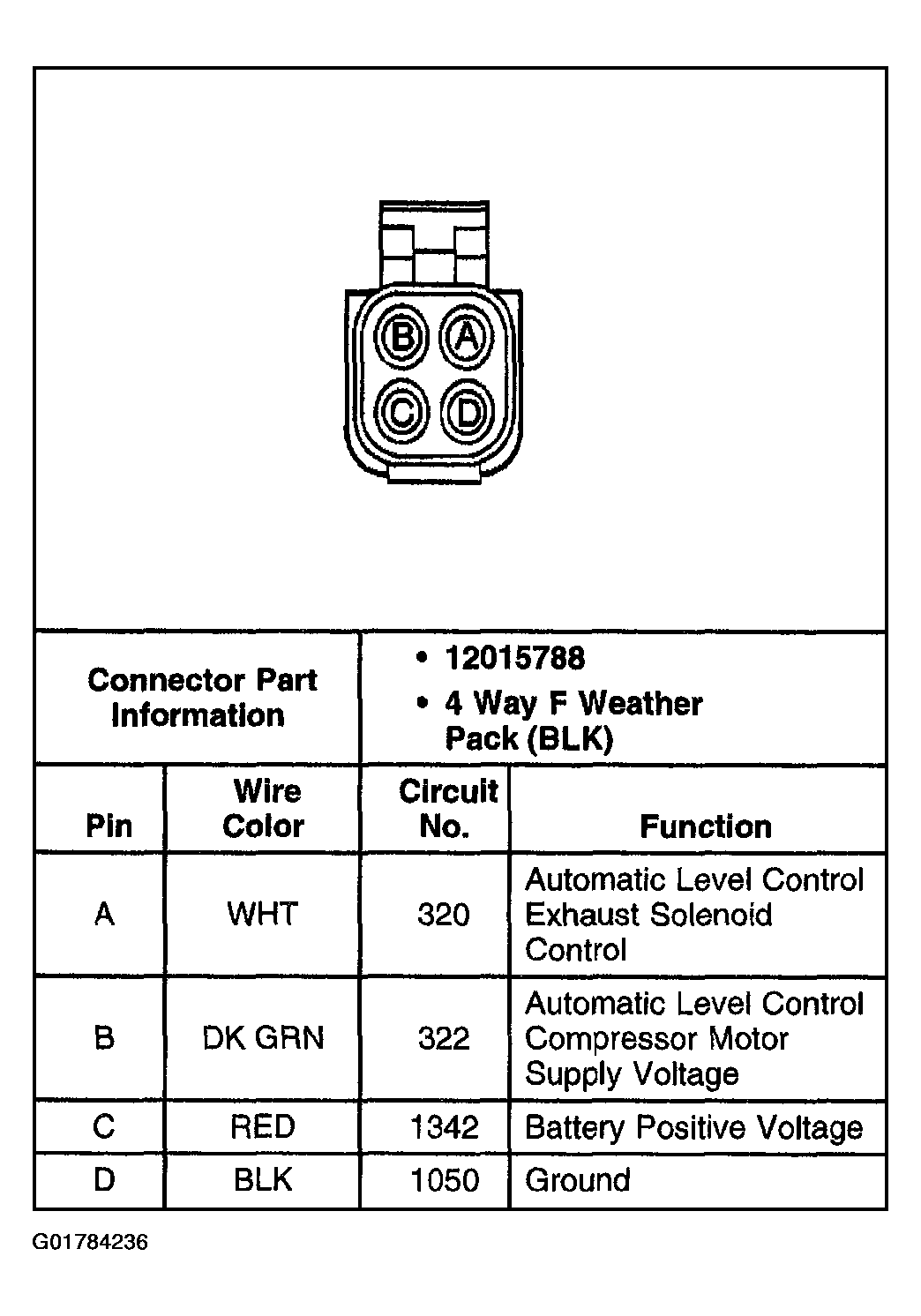

Fig 1: Automatic Level Control (ALC) Compressor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
