Home › Cadillac › 2002 › Seville SLS › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Steering Controls Connector End Views › Automatic Level Control (ALC) Module Connector End View (1 Of 2)

Automatic Level Control (ALC) Module Connector End View (1 Of 2)

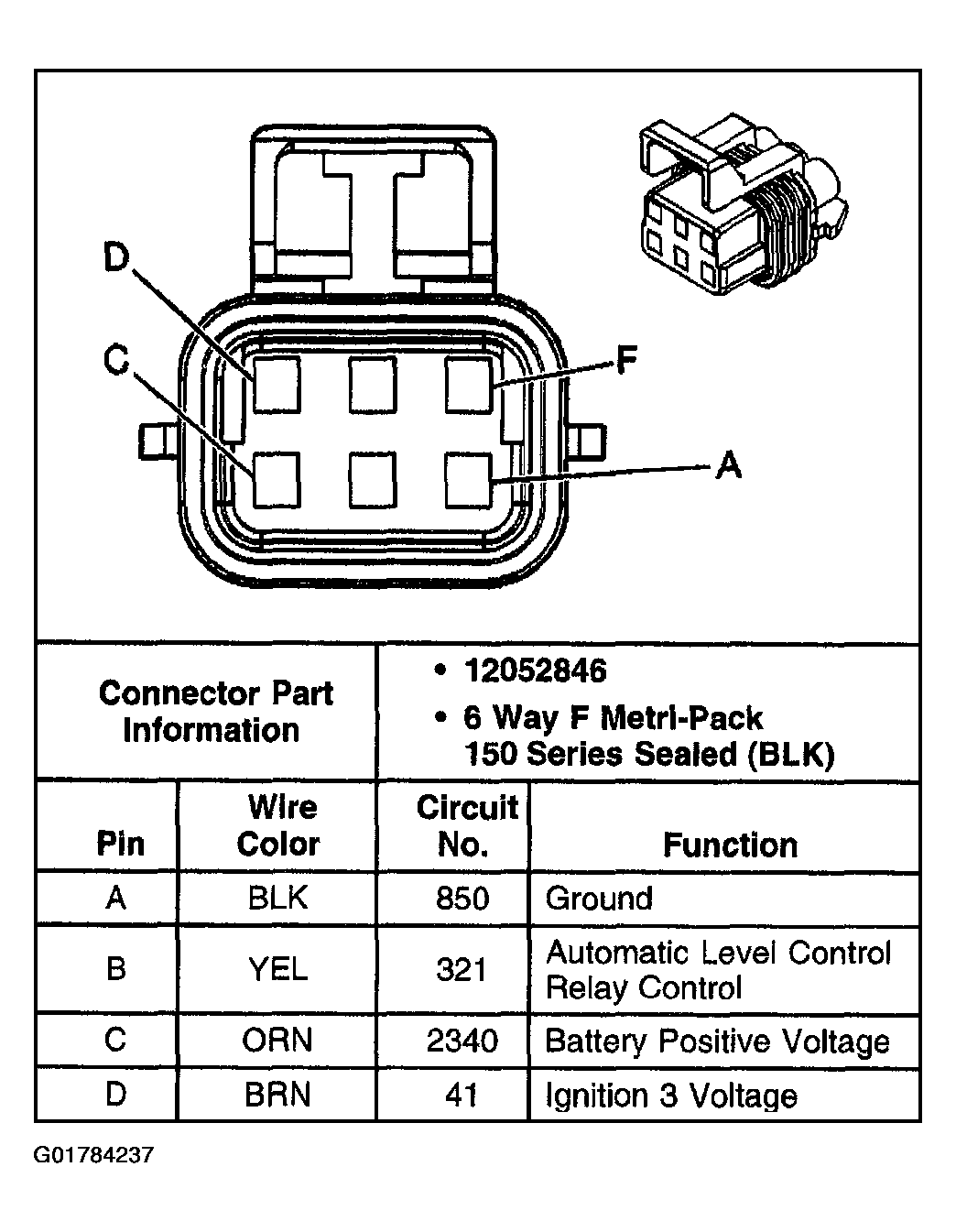

Fig 1: Automatic Level Control (ALC) Module (1 Of 2)
G01784237Courtesy of GENERAL MOTORS CORP.
