Automatic Level Control (ALC) Module Connector End View (2 Of 2)

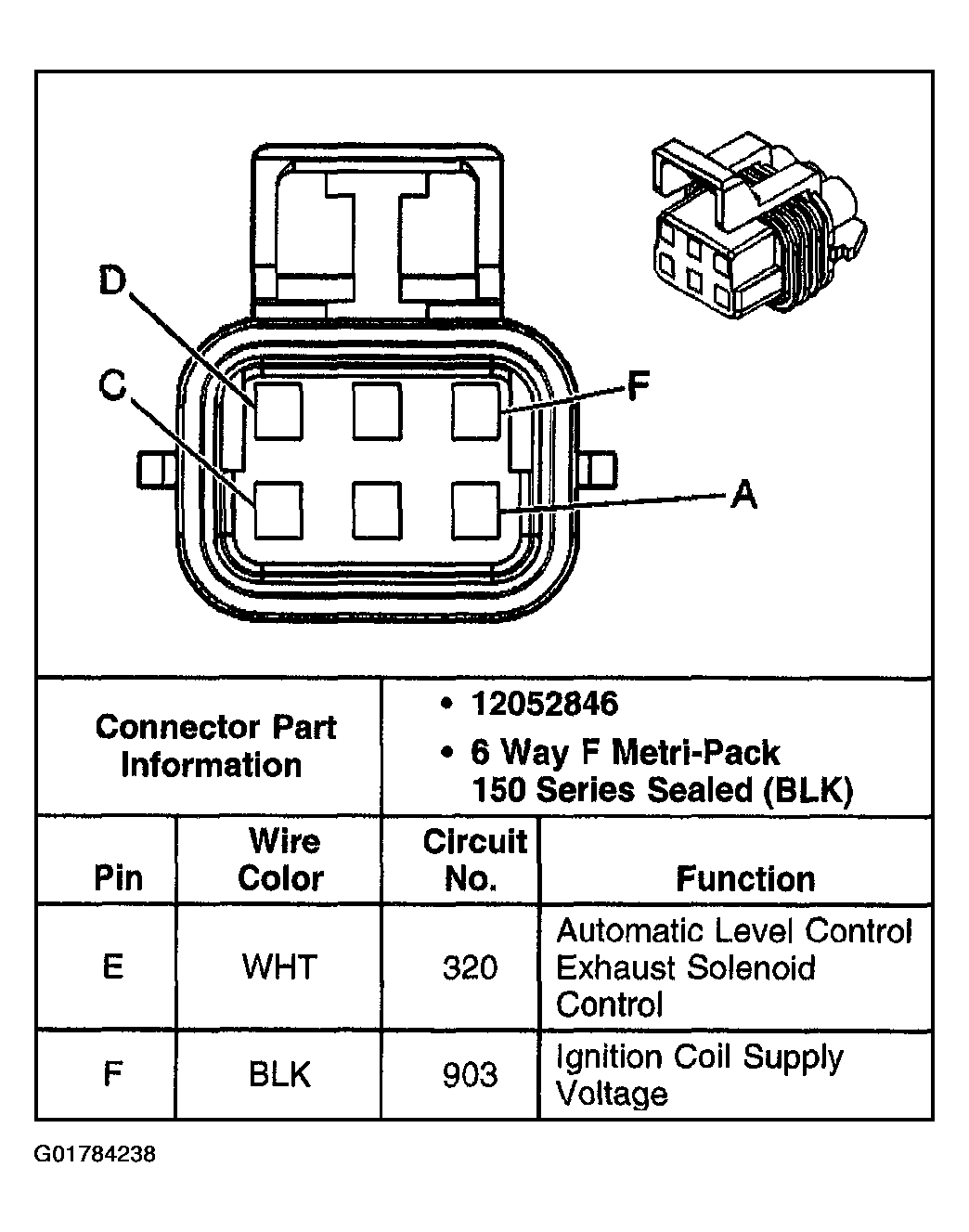

Fig 1: Automatic Level Control (ALC) Module (2 Of 2)
G01784238Courtesy of GENERAL MOTORS CORP.
