Engine Oil Level Switch Connector End View

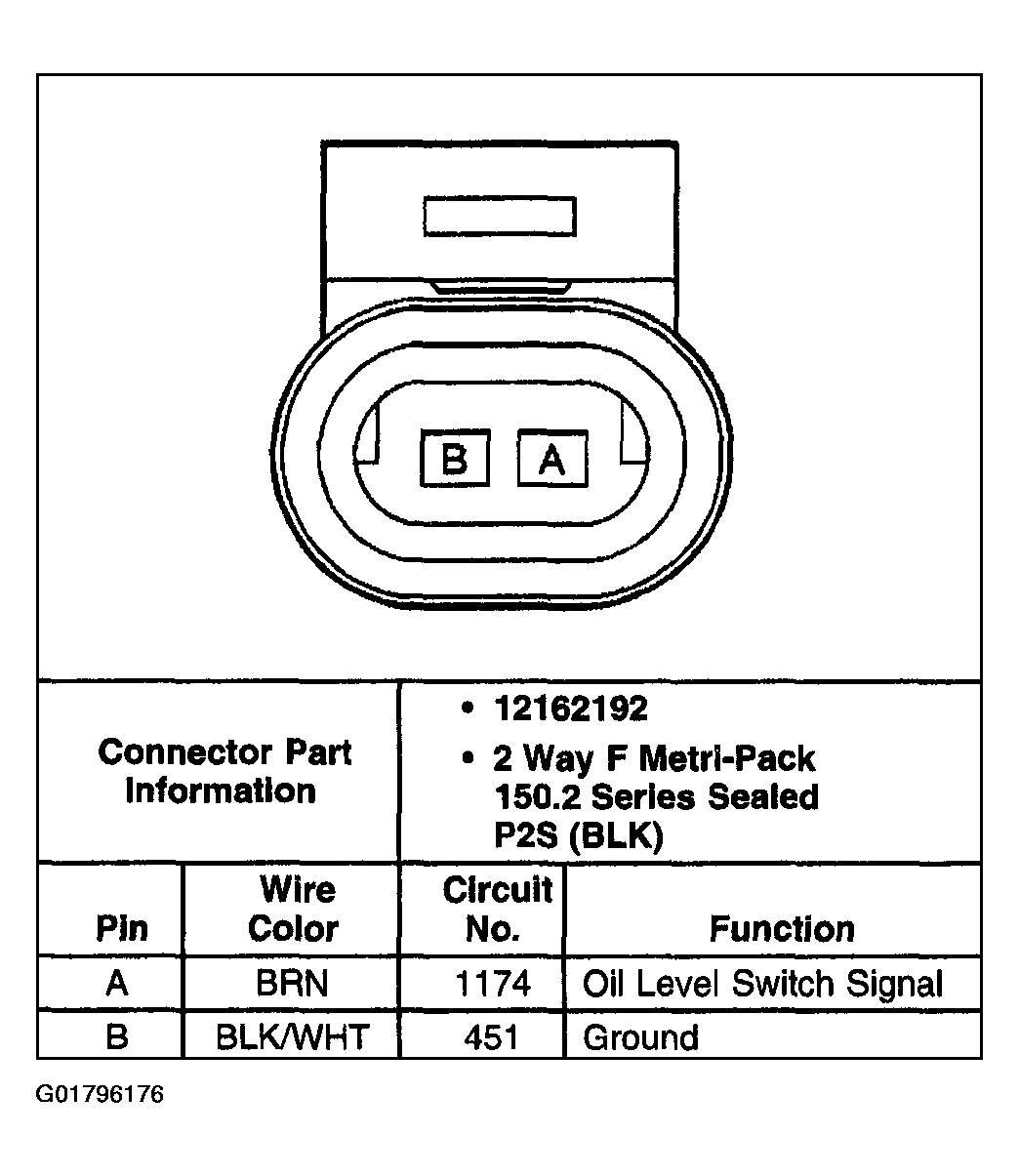

Fig 1: Engine Oil Level Switch
G01796176Courtesy of GENERAL MOTORS CORP.
