Headrest Position Sensor Connector End View - Driver
Headrest Position Sensor Connector End View - Driver

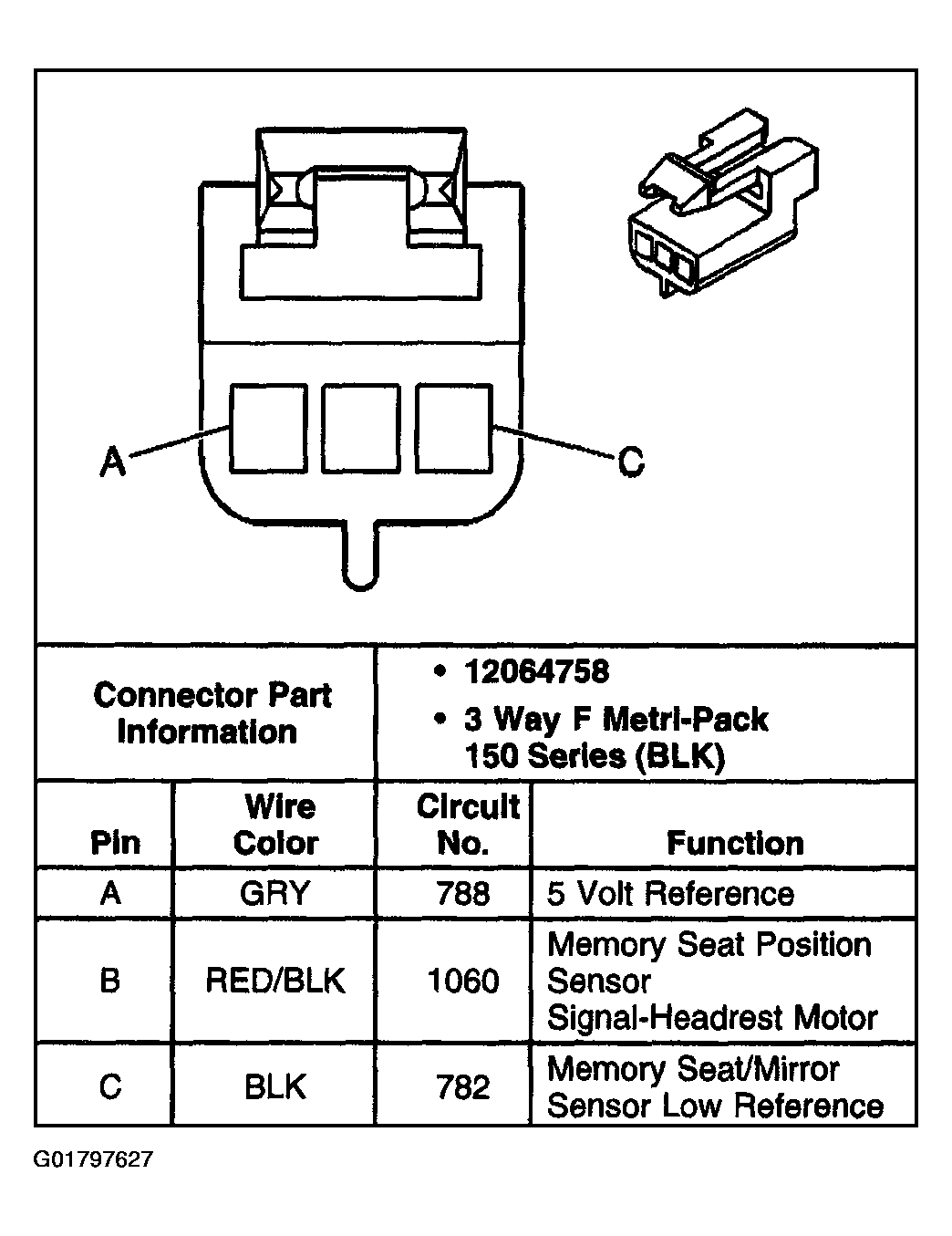

Fig 1: Headrest Position Sensor - Driver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
