Heated Seat Module Connector End View - Driver C3

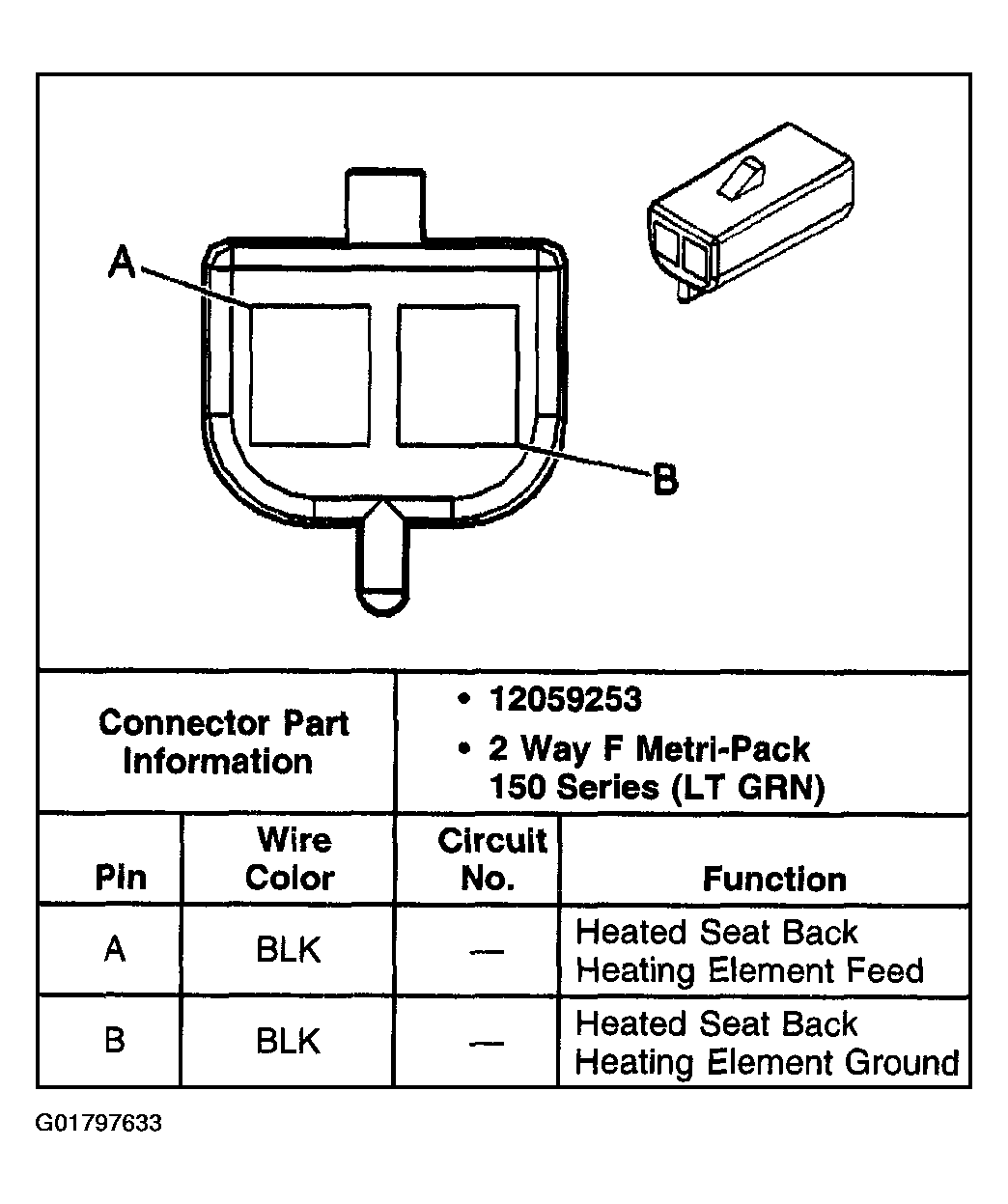

Fig 1: Heated Seat Module - Driver C3
G01797633Courtesy of GENERAL MOTORS CORP.
