OEM Connector End Views
›
Steering Controls Connector End Views
›
Memory/Personalization Function Switch Connector End View
Memory/Personalization Function Switch Connector End View

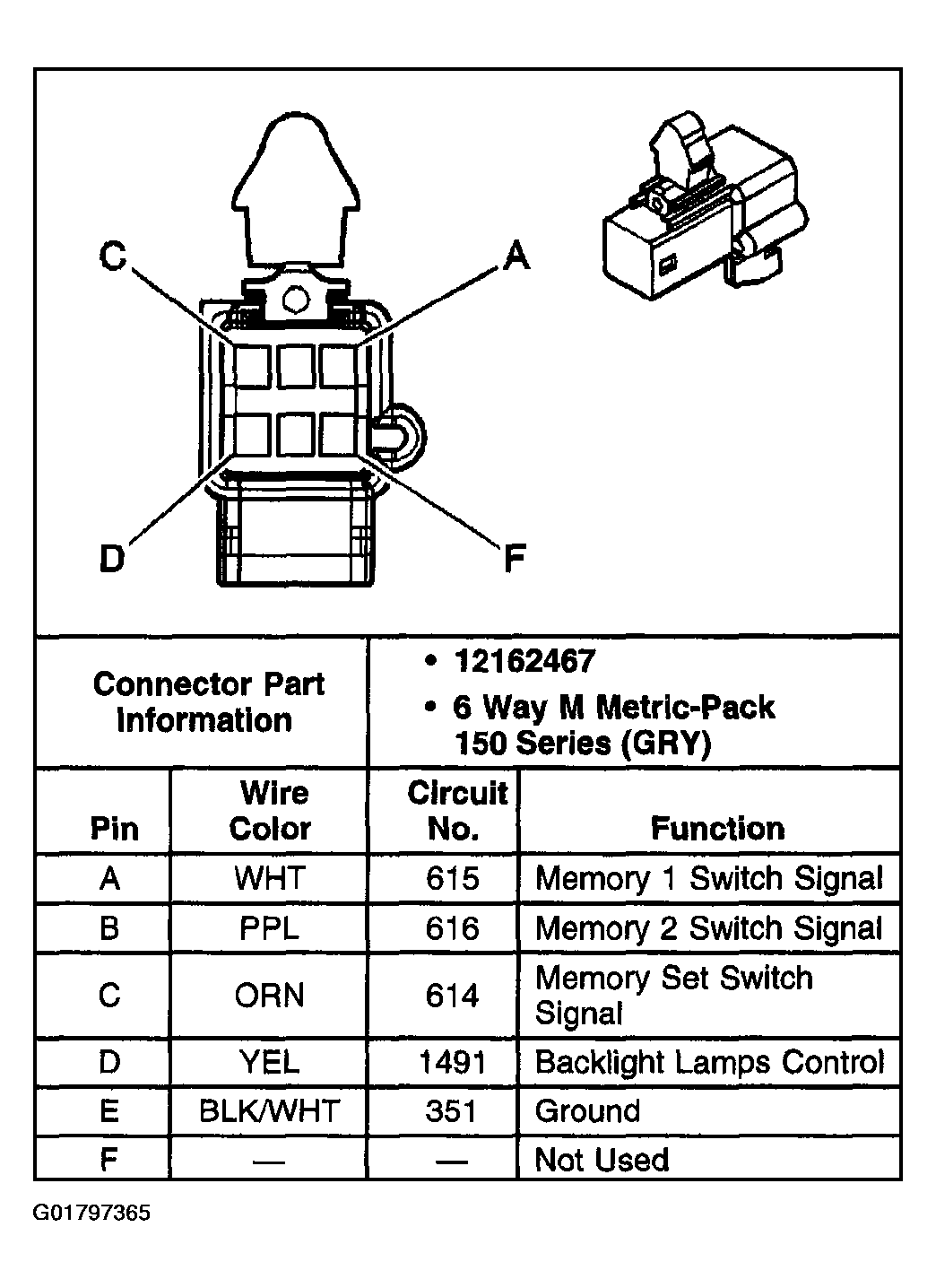

Fig 1: Memory/Personalization Function Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
