Seat Horizontal Position Sensor Connector End View - Driver
Seat Horizontal Position Sensor Connector End View - Driver

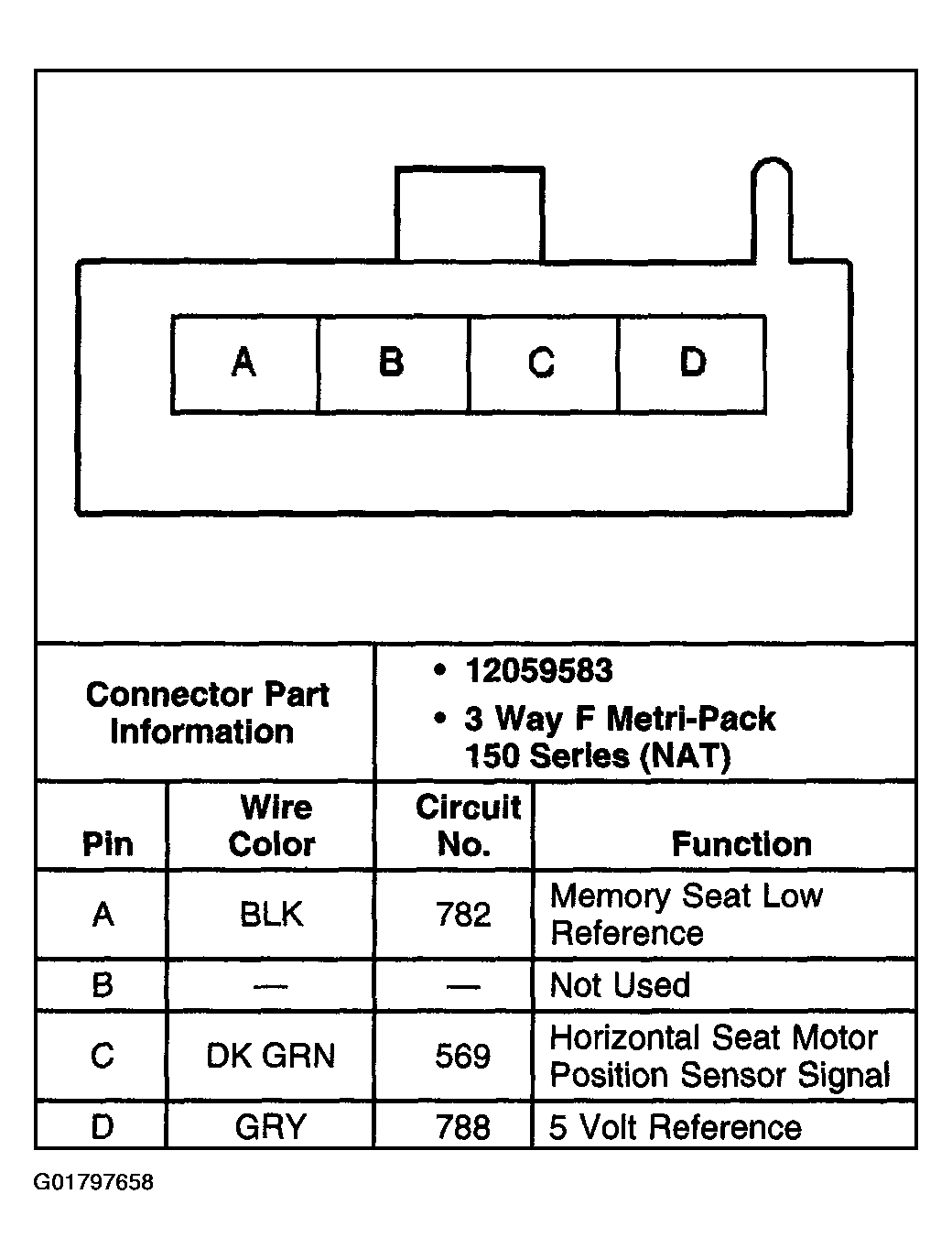

Fig 1: Seat Horizontal Position Sensor - Driver
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
