Suspension Position Sensor Connector End View - LR
Suspension Position Sensor Connector End View - LR

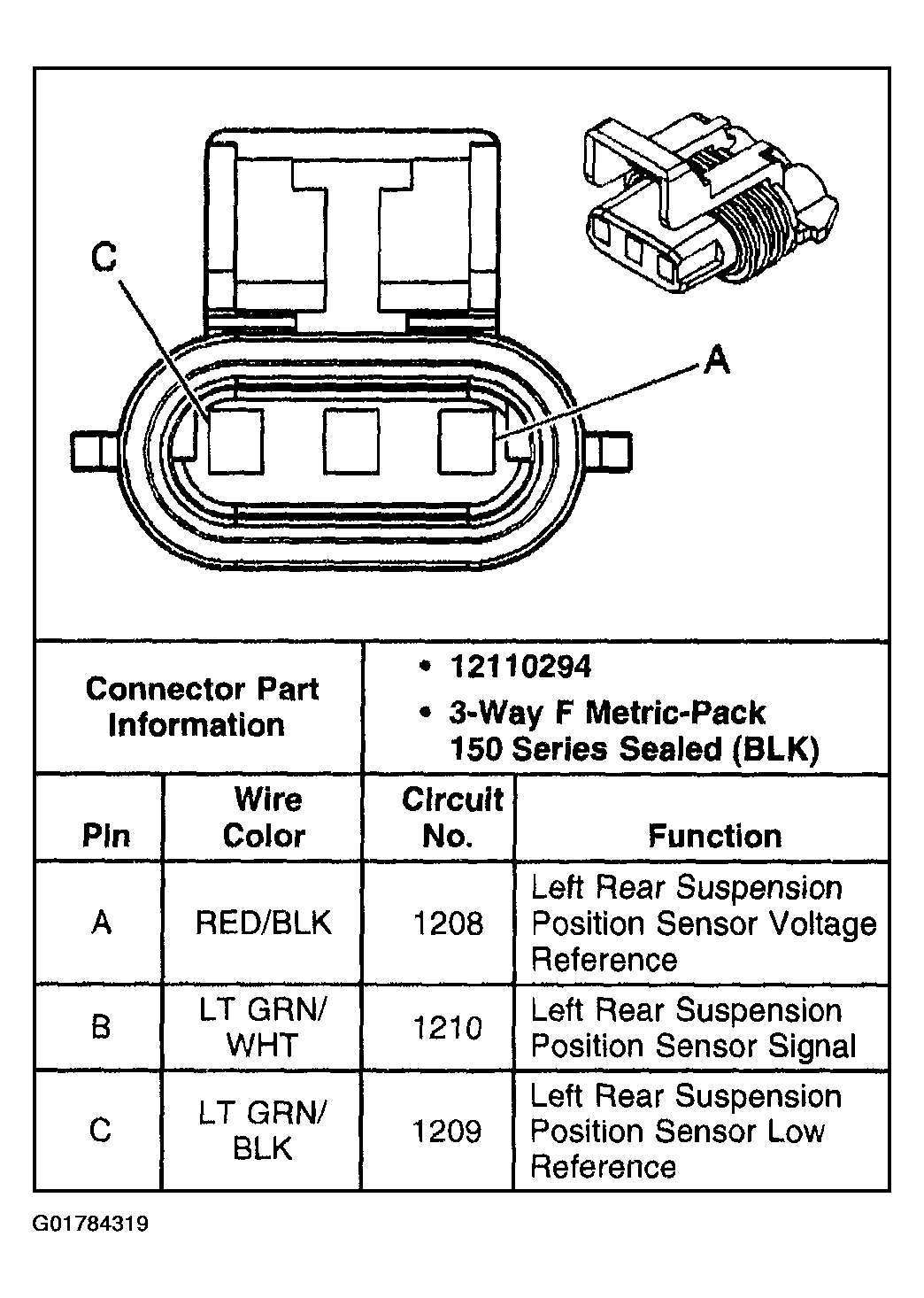

Fig 1: Suspension Position Sensor - LR
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
