Suspension Position Sensor Connector End View - RF

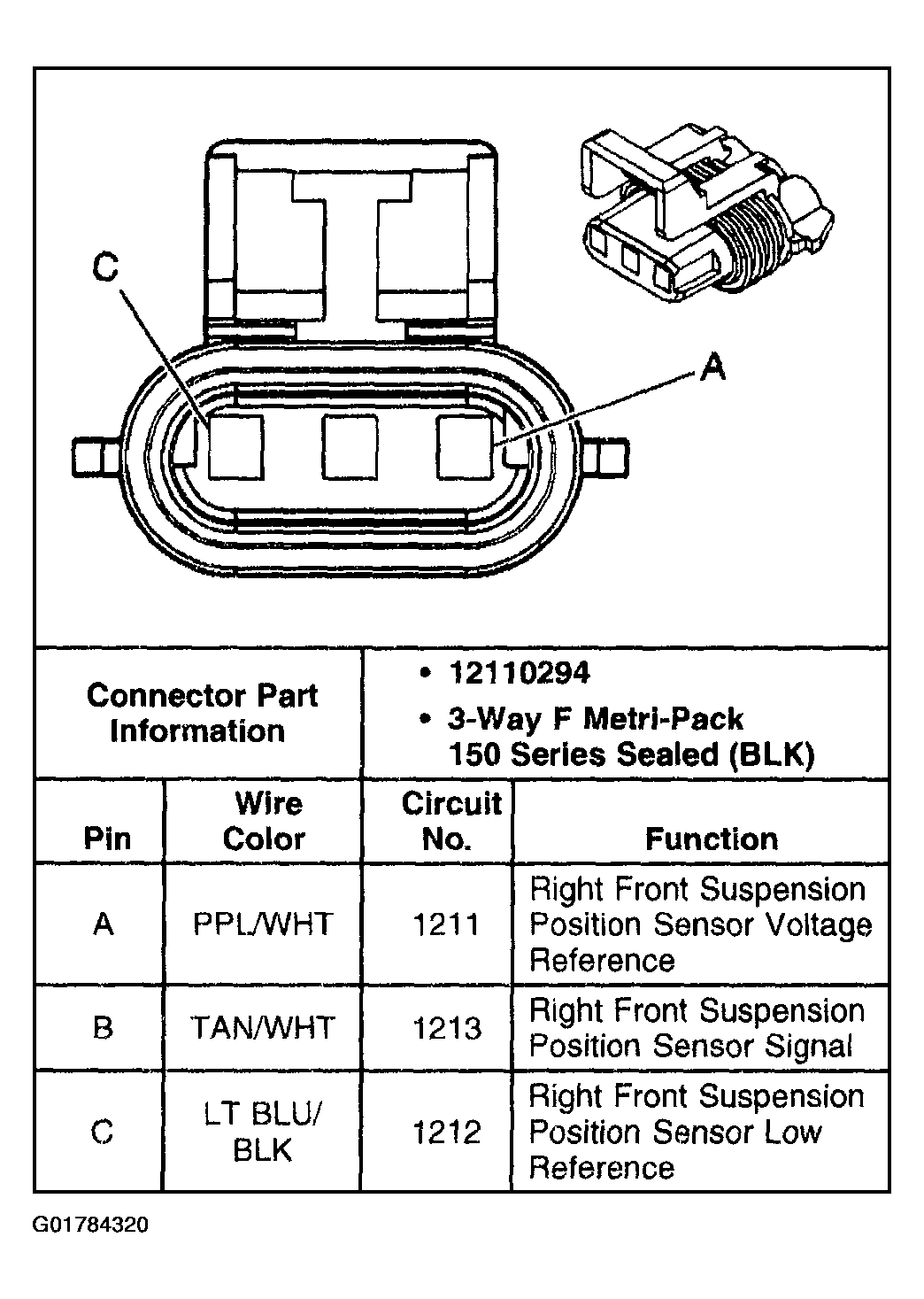

Fig 1: Suspension Position Sensor - RF
G01784320Courtesy of GENERAL MOTORS CORP.
