Engine Electrical Connector End Views
Engine Electrical Connector End Views

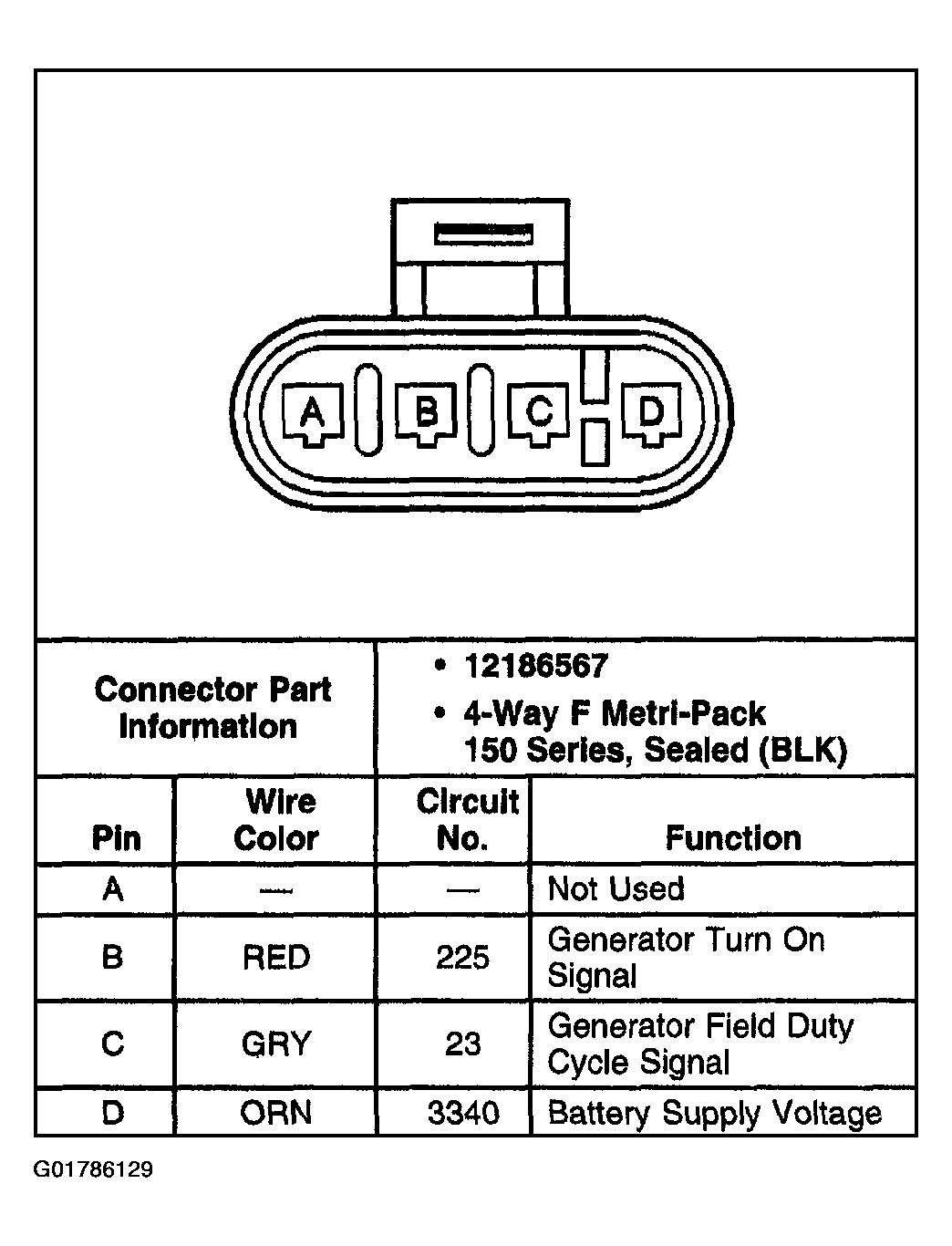

Fig 1: Identifying Generator
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
