Installation Procedure
- Install the docking station, if equipped with UV8. Refer to CELLULAR TELEPHONE DOCKING STATION REPLACEMEN .

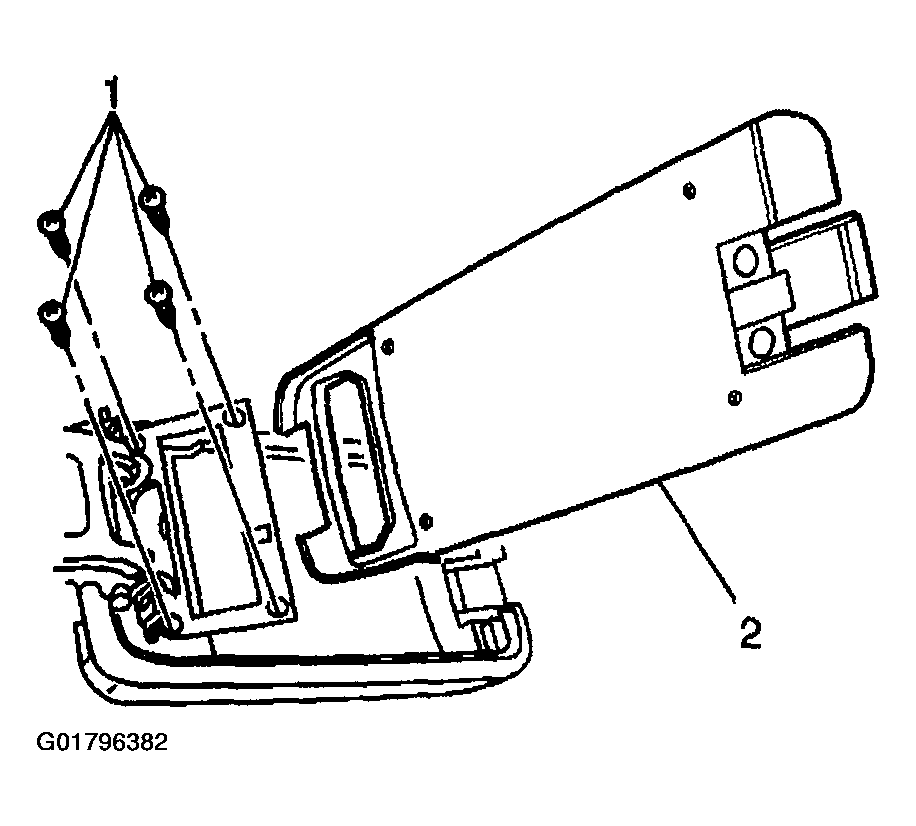

- Align the center console tray (2) with the console door hinge.NOTE: Refer to FASTENER NOTICE .
- Install the screws (1) to the console tray (2).
Tighten
Tighten the screws to 1.6 N.m (14 lb in).
- Inspect the console lid for proper operation.
