Rear Compartment Lid Release Switch Connector End View
Rear Compartment Lid Release Switch Connector End View

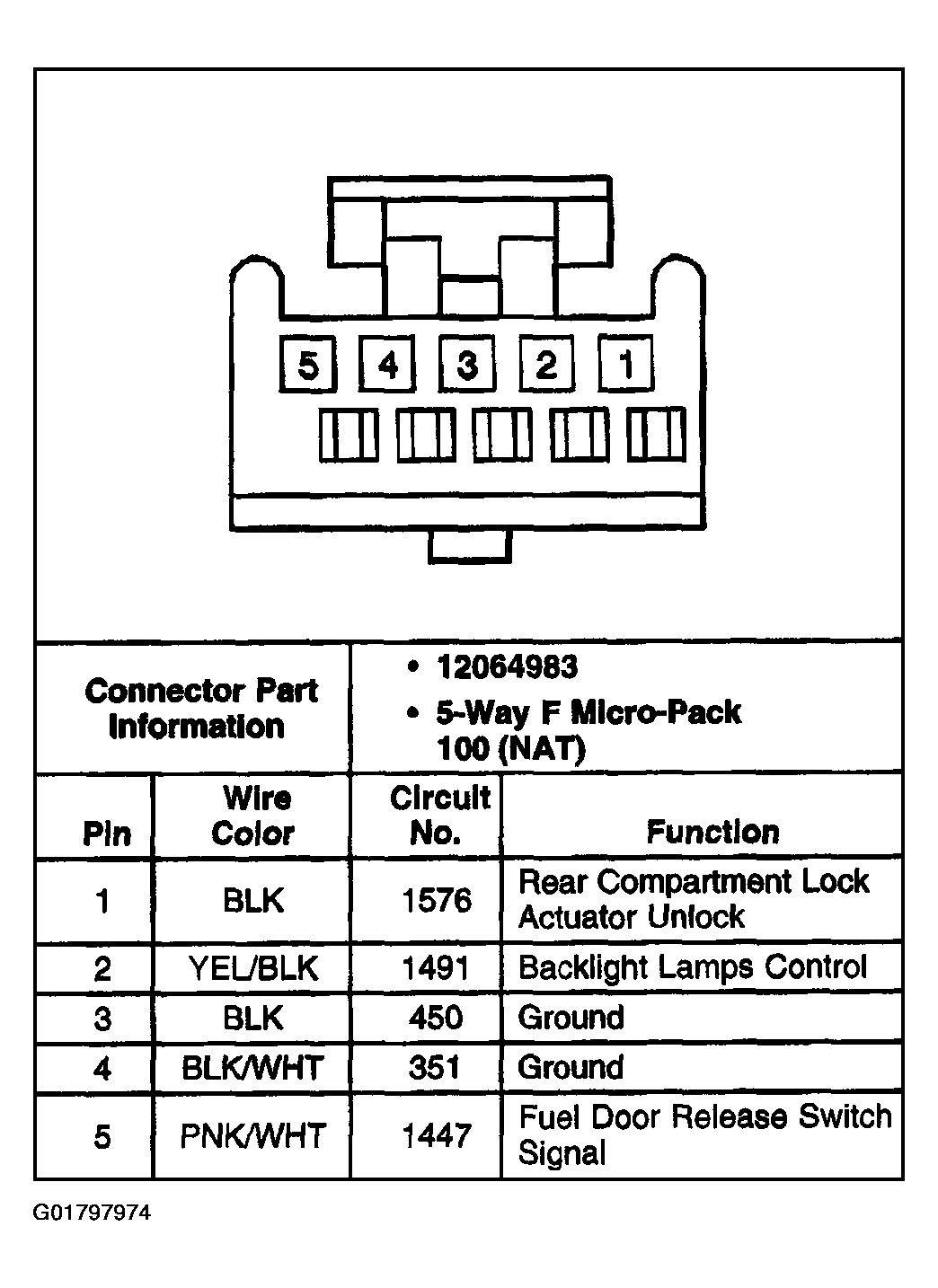

Fig 1: Rear Compartment Lid Release Switch
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
