Seat Belt Connector End Views
Seat Belt Connector End Views

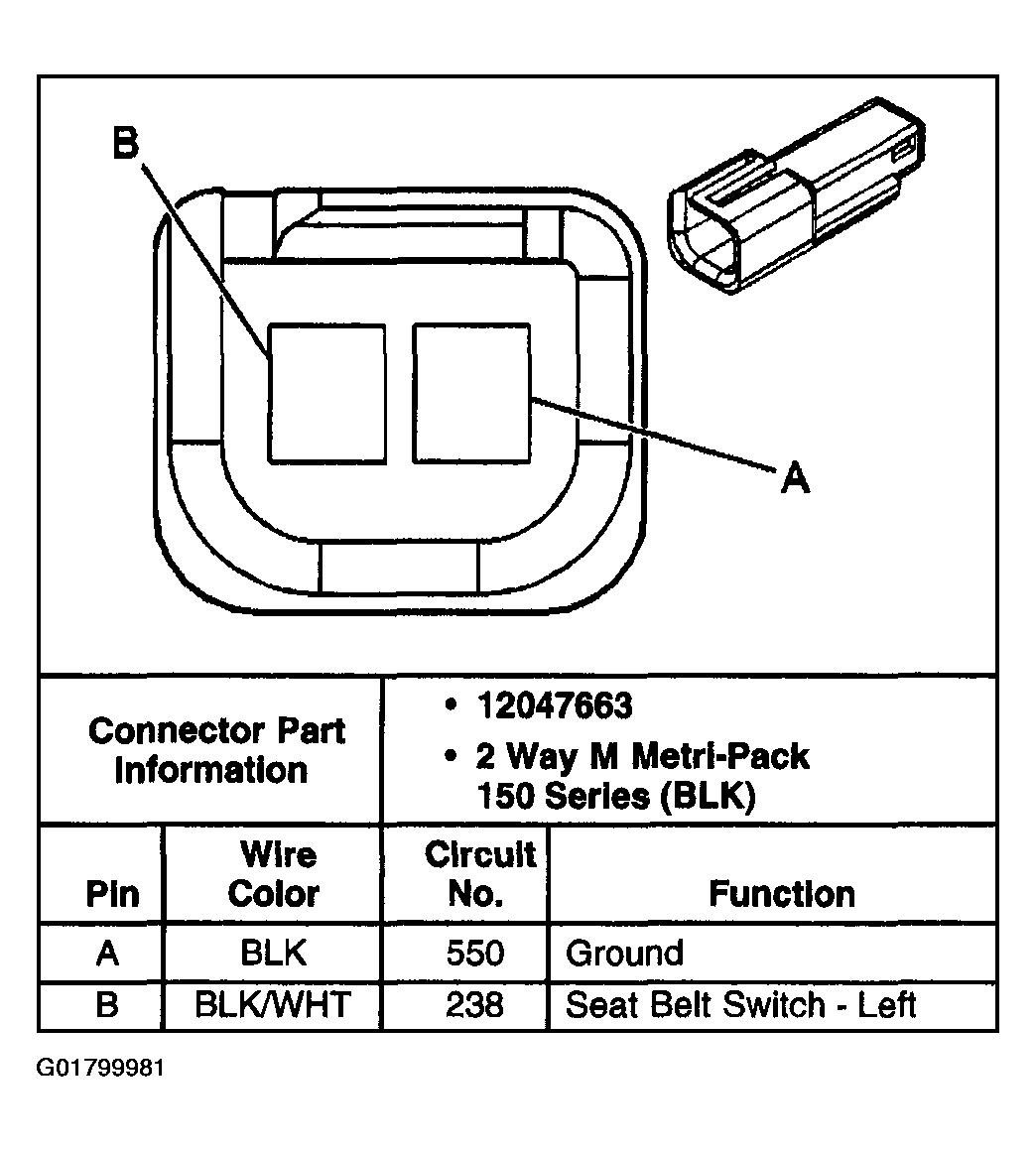

Fig 1: Seat Belt Switch - LF
Courtesy of GENERAL MOTORS CORP.

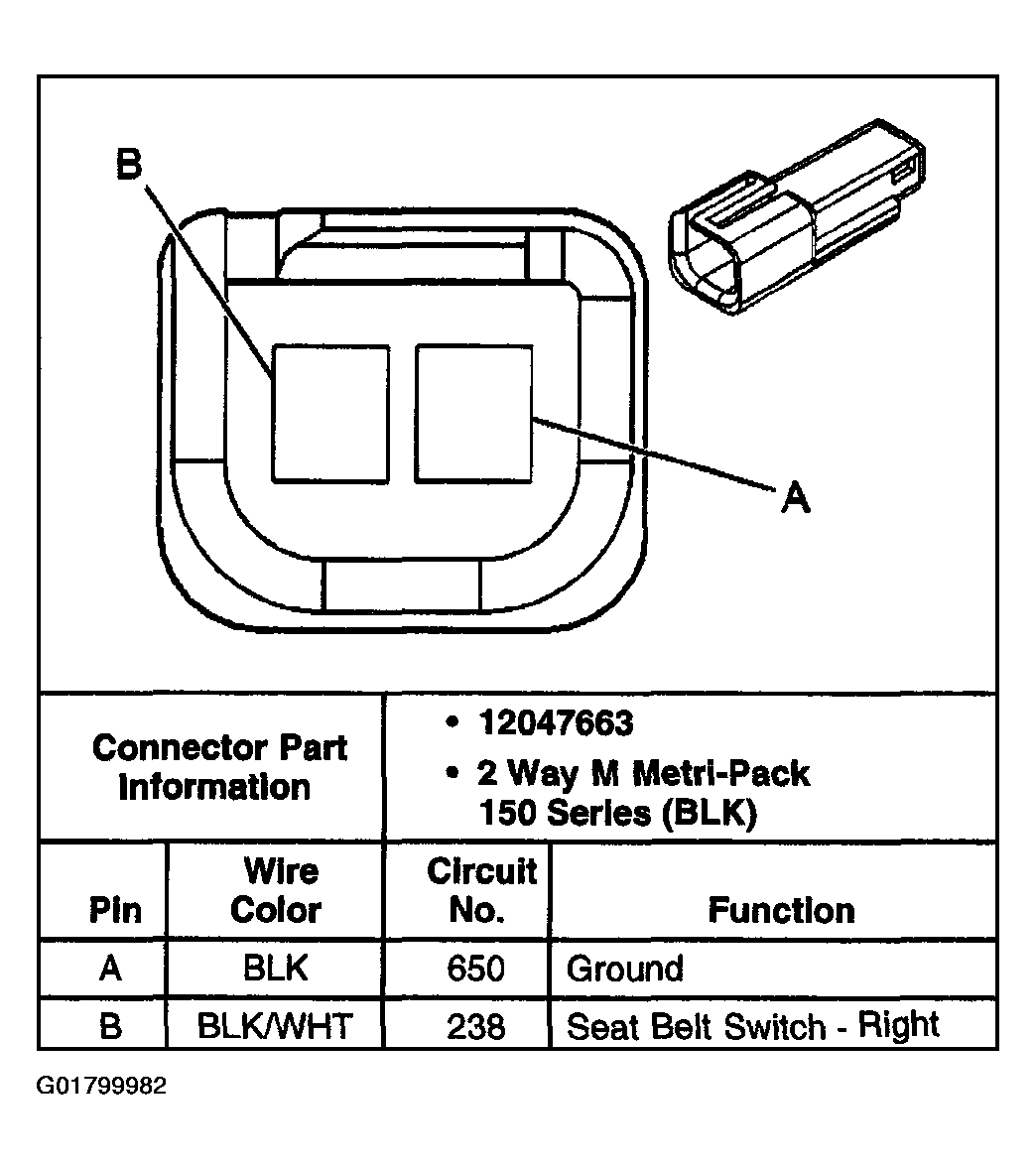

Fig 2: Seat Belt Switch - RF
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
