Removal Procedure

  1. Remove the rear shelf panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
  2. Remove the fastener (1) that retains the child tether anchor (2) that is being serviced.
  3. Remove the child tether anchor (2) from the vehicle.

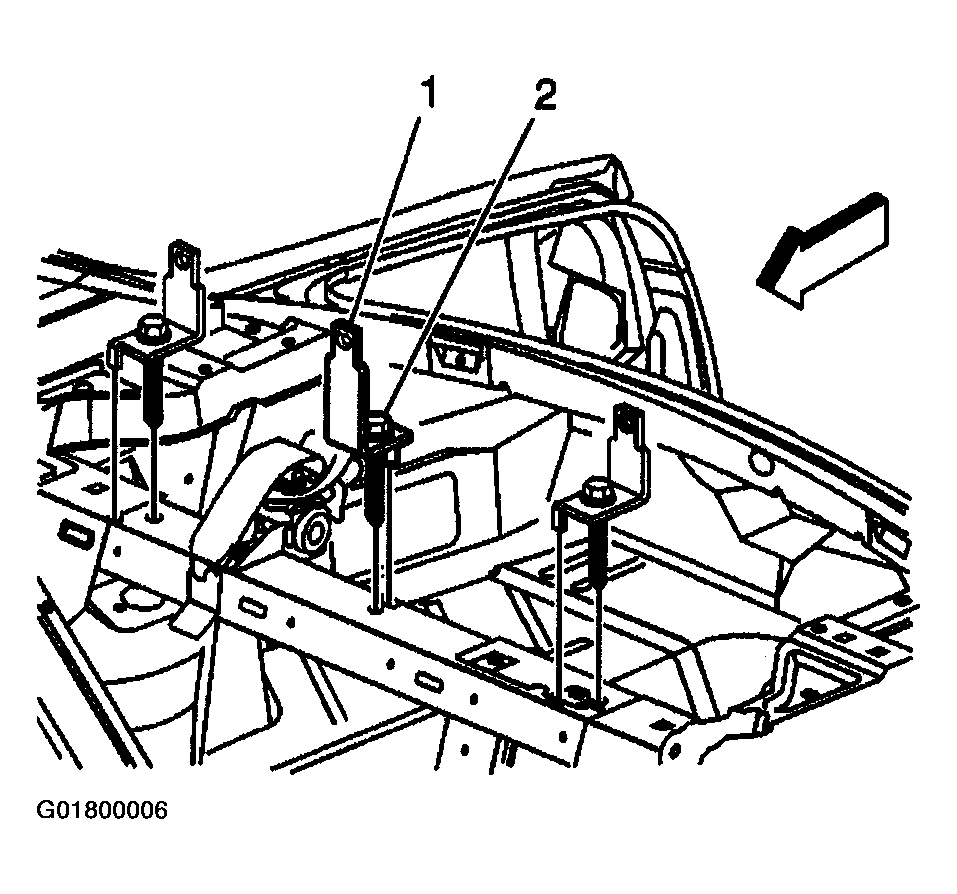

    Fig 1: Removing Child Tether Anchor & Fastener
    G01800006Courtesy of GENERAL MOTORS CORP.
