Installation Procedure

  1. Install the multifunction switch to the steering column.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the multifunction switch retaining screws.

    Tighten

    Tighten the multifunction switch retaining screws to 7 N.m (62 lb in).

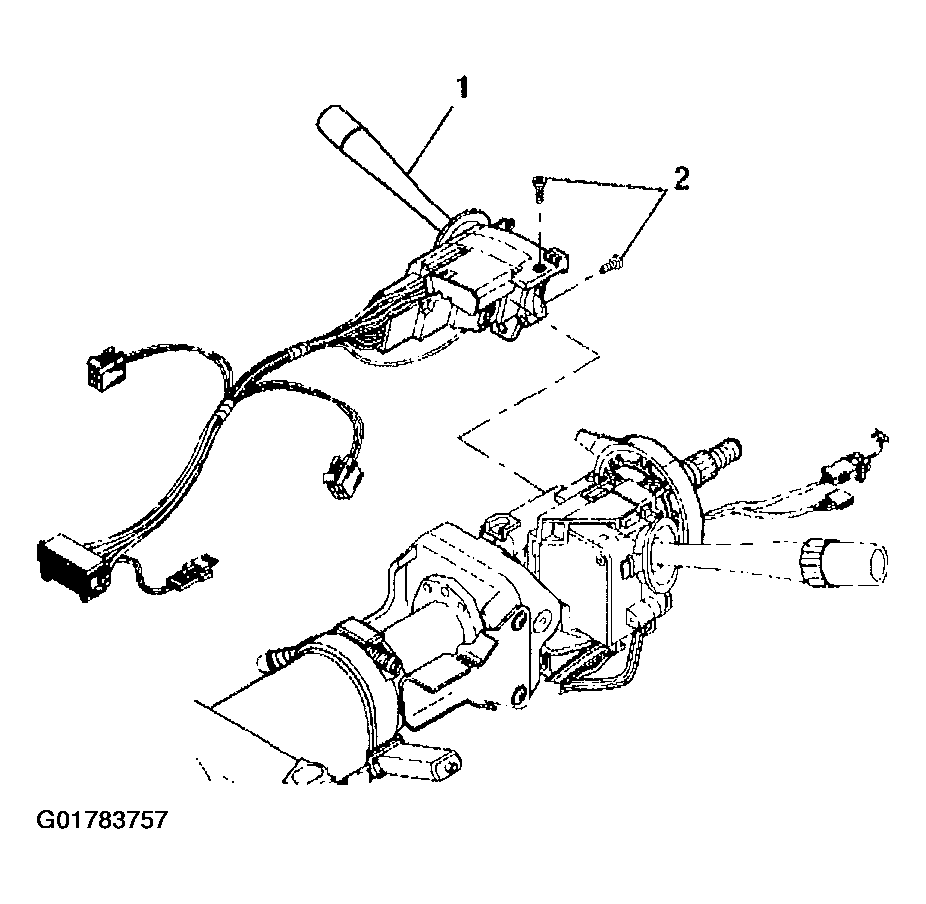

    Fig 1: Installing Multifunction Switch
    G01783757Courtesy of GENERAL MOTORS CORP.
  3. Connect the multifunction switch electrical connectors (1, 2, 3).

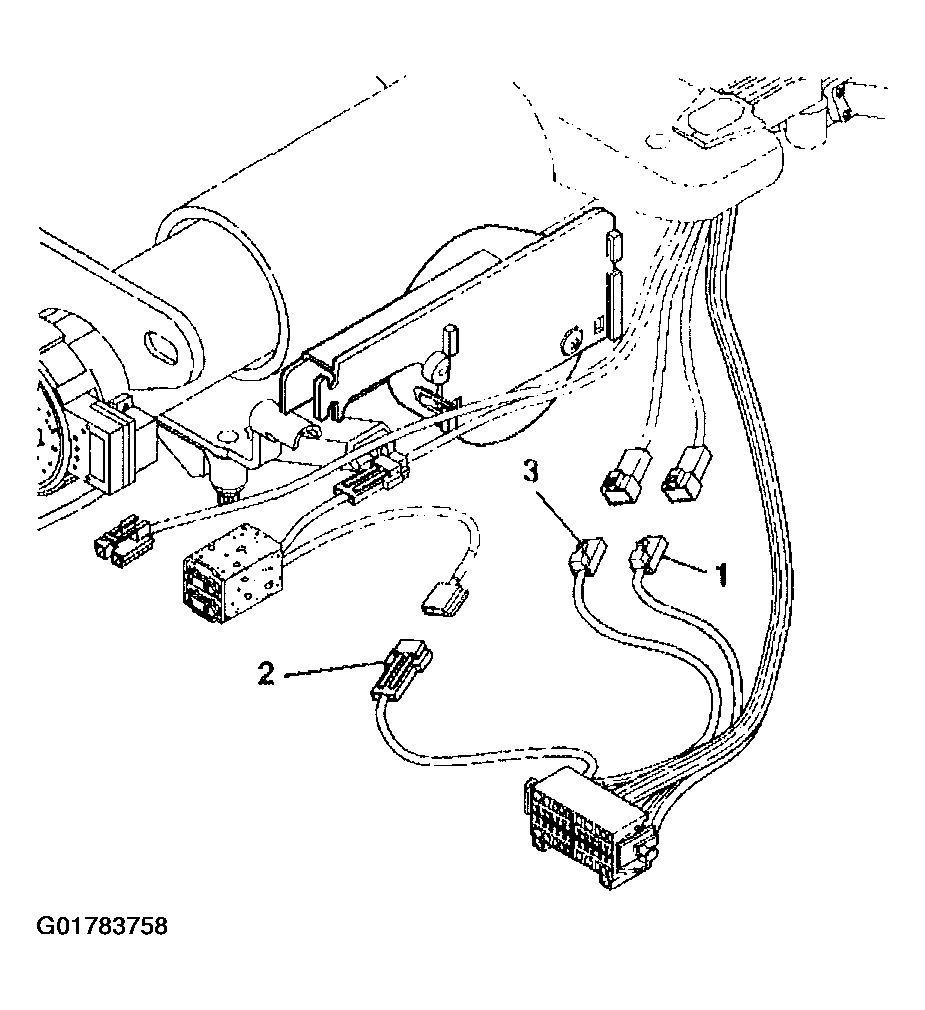

    Fig 2: Connecting Multifunction Switch Electrical Connectors
    G01783758Courtesy of GENERAL MOTORS CORP.

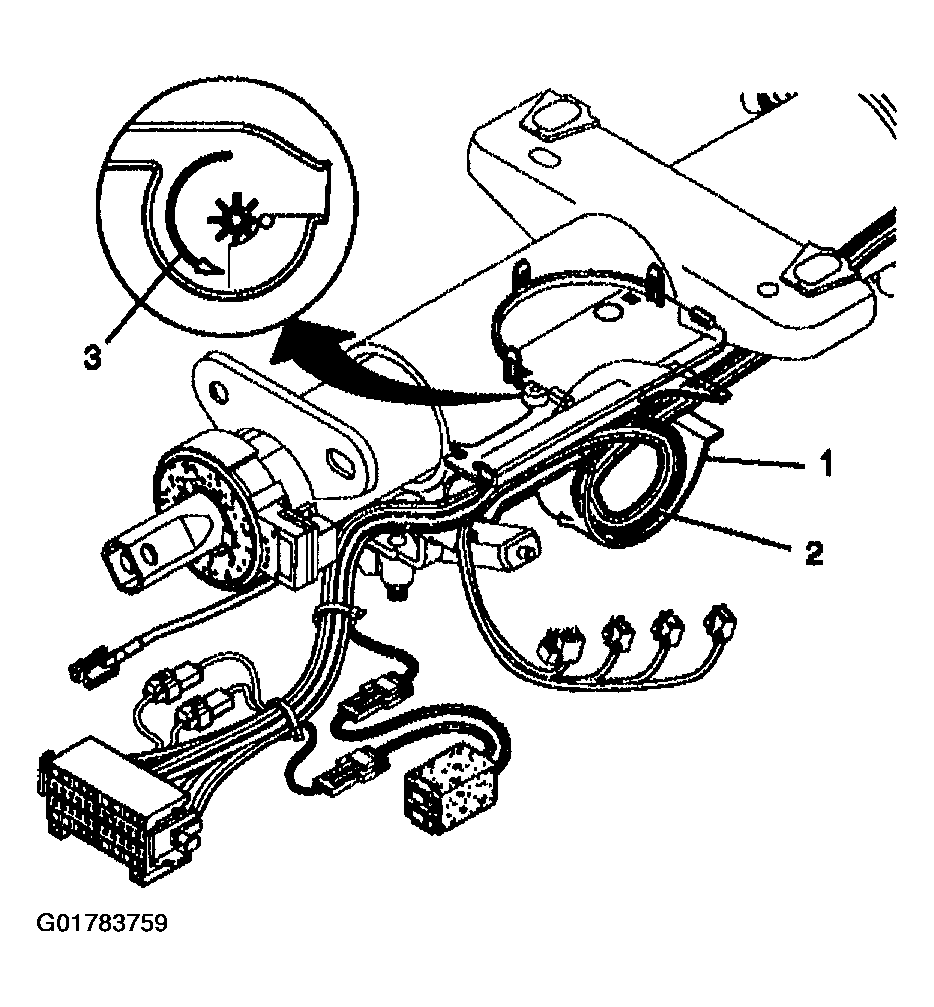

  4. Install the steering column wire harness (2) to the lower steering column wire harness shield (1).
    Fig 3: Installing Steering Column Wire Harness
    G01783759Courtesy of GENERAL MOTORS CORP.
  5. Connect the steering column control module electrical connectors
  6. Install the steering column wire harness tie straps.
  7. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  8. Install the steering column. Refer to Steering Column Replacement .
  9. Enable the SIR system. Refer to ACTIVATING SYSTEM .

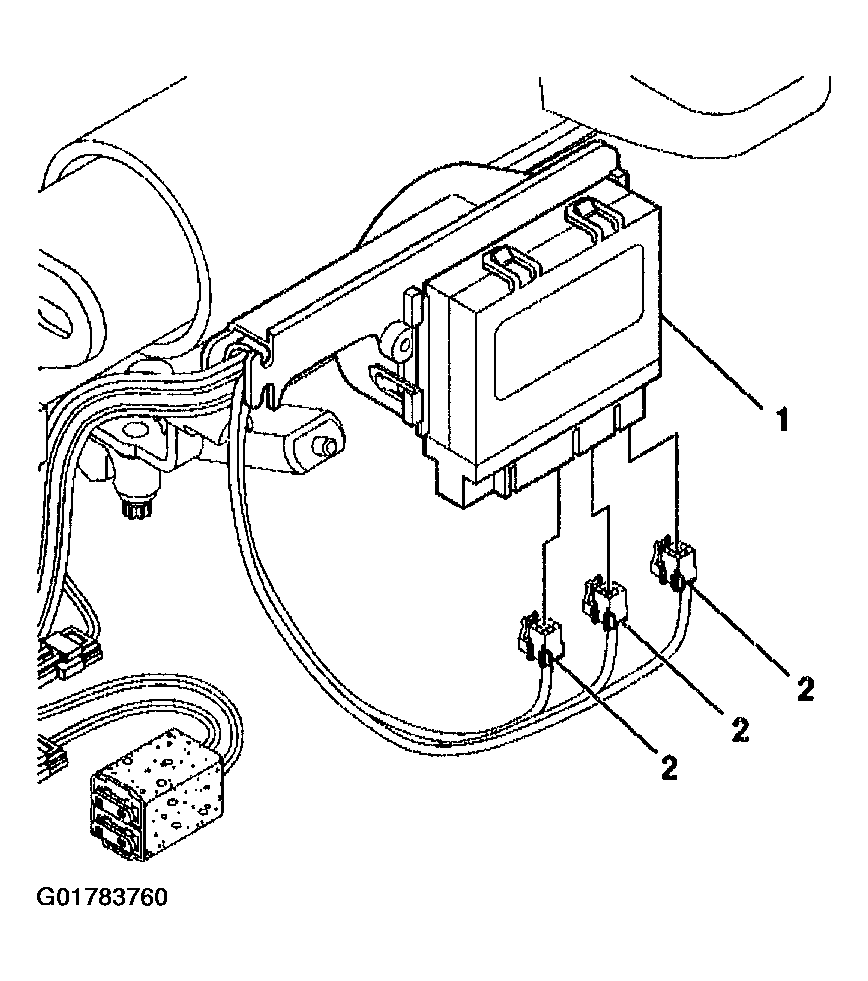

    Fig 4: Connecting Steering Column Control Module Electrical Connectors
    G01783760Courtesy of GENERAL MOTORS CORP.
