Installation Procedure

  1. Install the steering column control module (2) to the lower steering column wire harness shield (1).

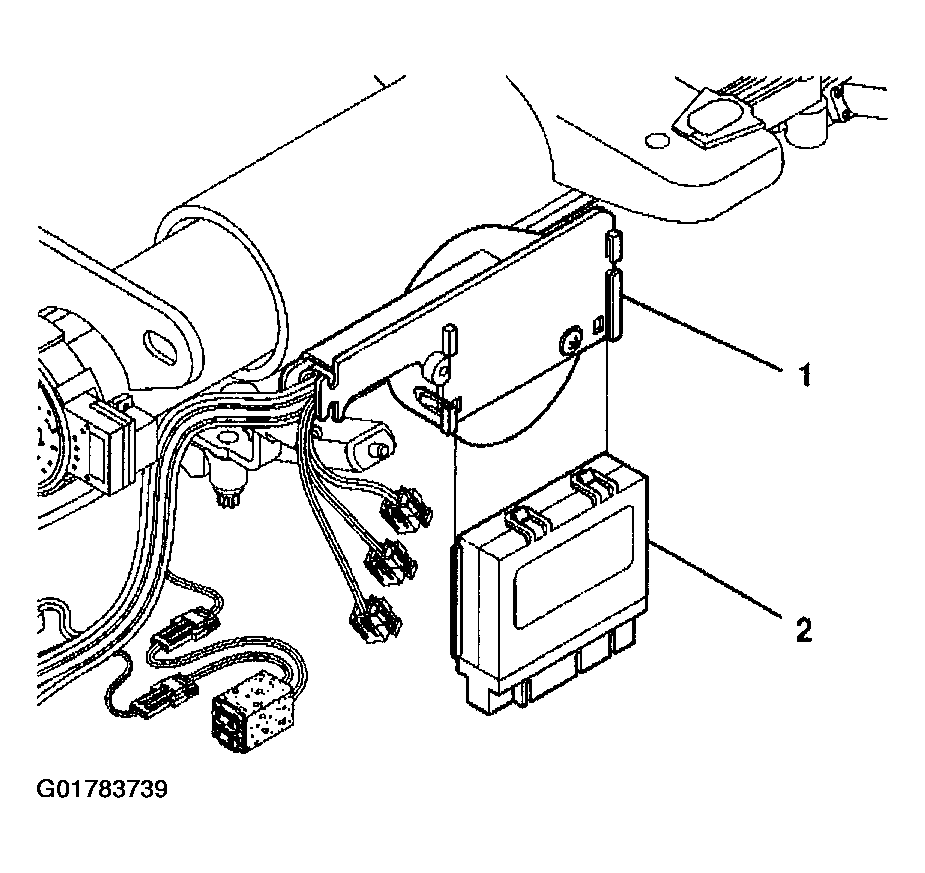

    Fig 1: Installing Steering Column Control Module
    G01783739Courtesy of GENERAL MOTORS CORP.
  2. Connect steering column control module electrical connectors (2).
  3. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .
  4. Enable the SIR system. Refer to ACTIVATING SYSTEM .

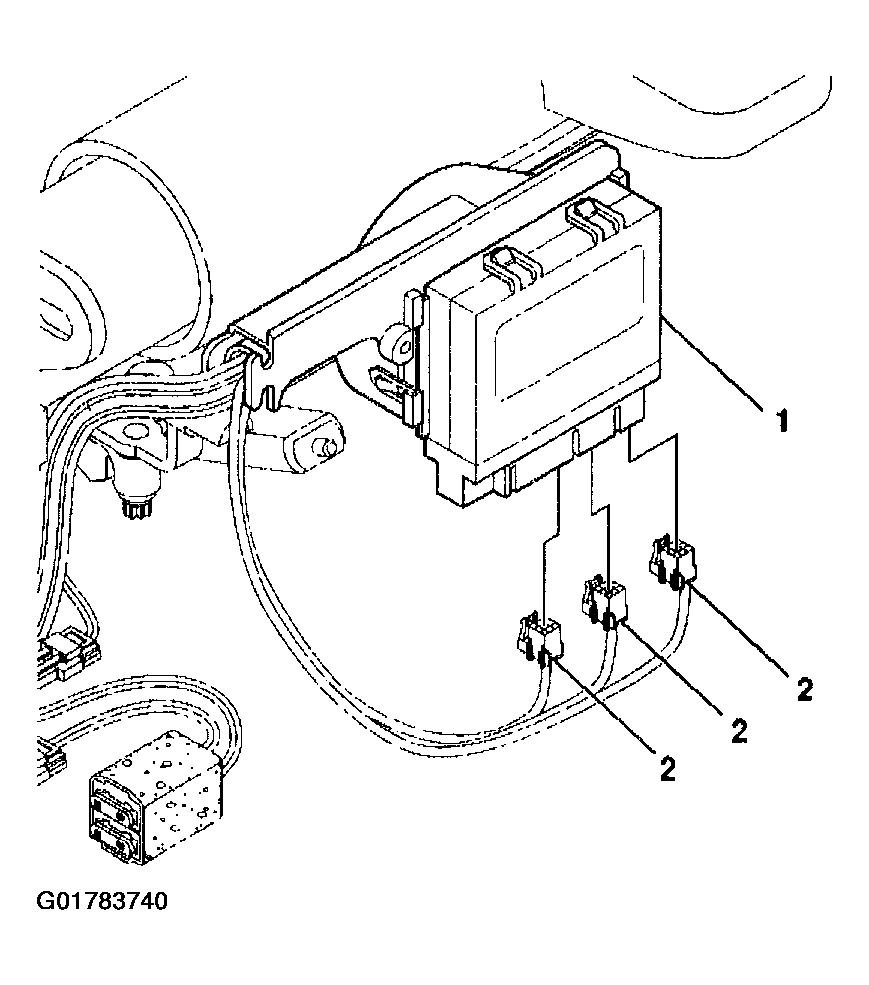

    Fig 2: Connecting Steering Column To Module Electrical Connectors
    G01783740Courtesy of GENERAL MOTORS CORP.
