Removal Procedure

  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove the steering wheel inflatable restraint module. Refer to REMOVAL & INSTALLATION .
  3. Carefully pull the steering wheel control switch (2) away from the steering wheel in order to release the steering wheel control switch from the steering wheel.
  4. Disconnect the electrical connectors (1) for the steering wheel control switch (2).
  5. Remove the steering wheel control switch (2) from the steering wheel.

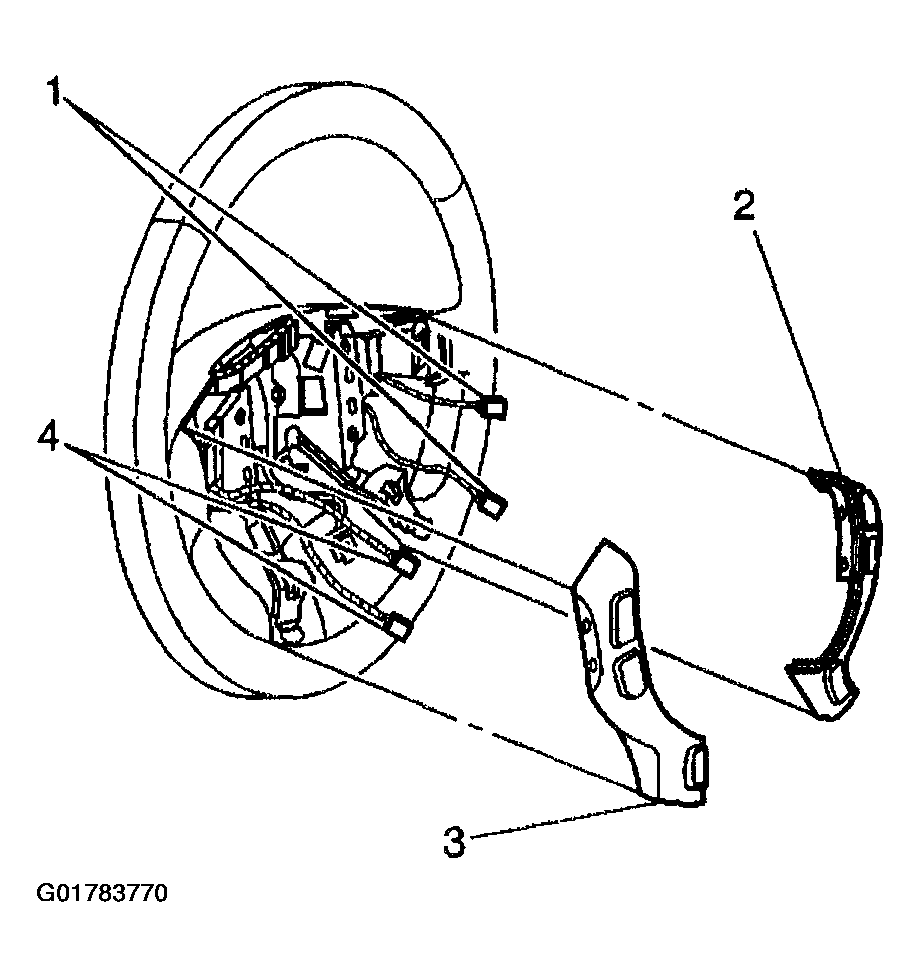

    Fig 1: Removing Steering Wheel Control Switch
    G01783770Courtesy of GENERAL MOTORS CORP.
