Installation Procedure

  1. Install the steering wheel.
  2. Align the steering wheel with the mark on the steering shaft.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install steering wheel retaining nut.

    Tighten

    Tighten the steering wheel nut to 41 N.m (30 lb ft).

  4. Connect the steering wheel electrical connector.
  5. Install the SIR module. Refer to REMOVAL & INSTALLATION .
  6. Enable the SIR system. Refer to ACTIVATING SYSTEM .

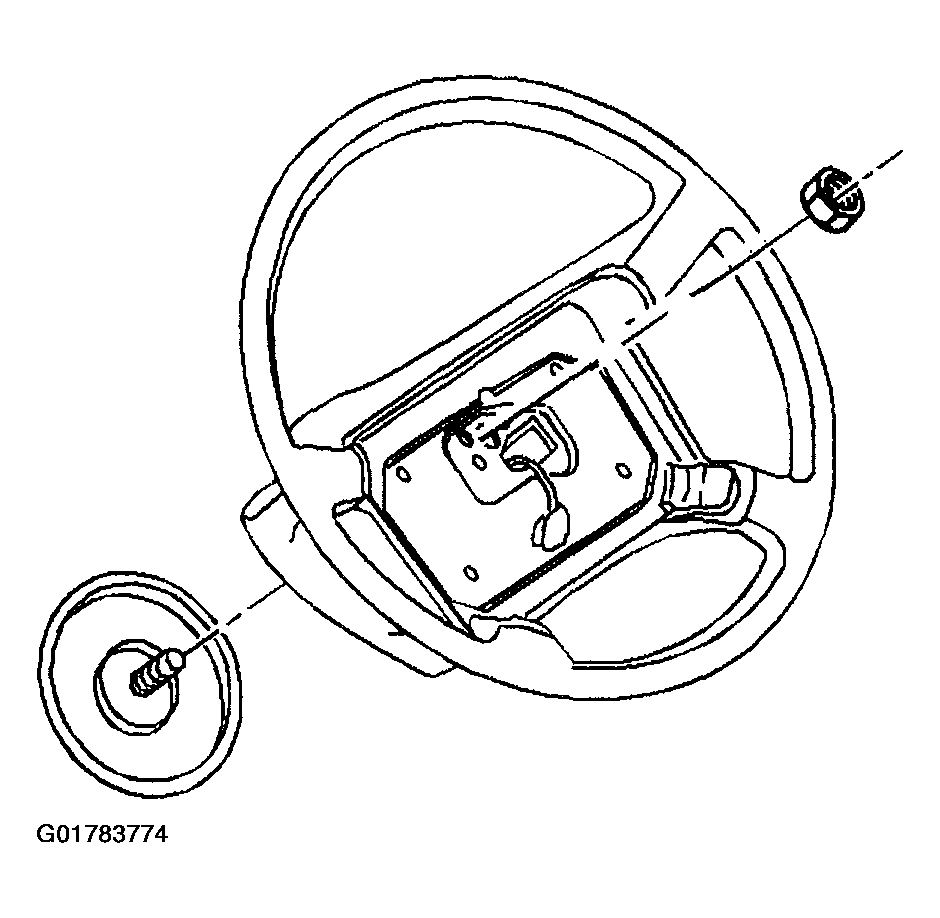

    Fig 1: Installing Steering Wheel
    G01783774Courtesy of GENERAL MOTORS CORP.
