Front Toe Adjustment

Loosen the jam nuts (1) on the tie rod.
CAUTION: Care must be taken so that the boots are not twisted when rotating the inner tie rod, or damage to the boots may result.
Rotate the inner tie rod to the required toe specification setting.
CAUTION: Refer to FASTENER NOTICE .
Tighten the jam nuts on the tie rods.
Tighten

Tighten the jam nuts to 64 N.m (47 lb ft).
Recheck the toe settings after tightening the jam nuts.
Readjust the toe setting if necessary.

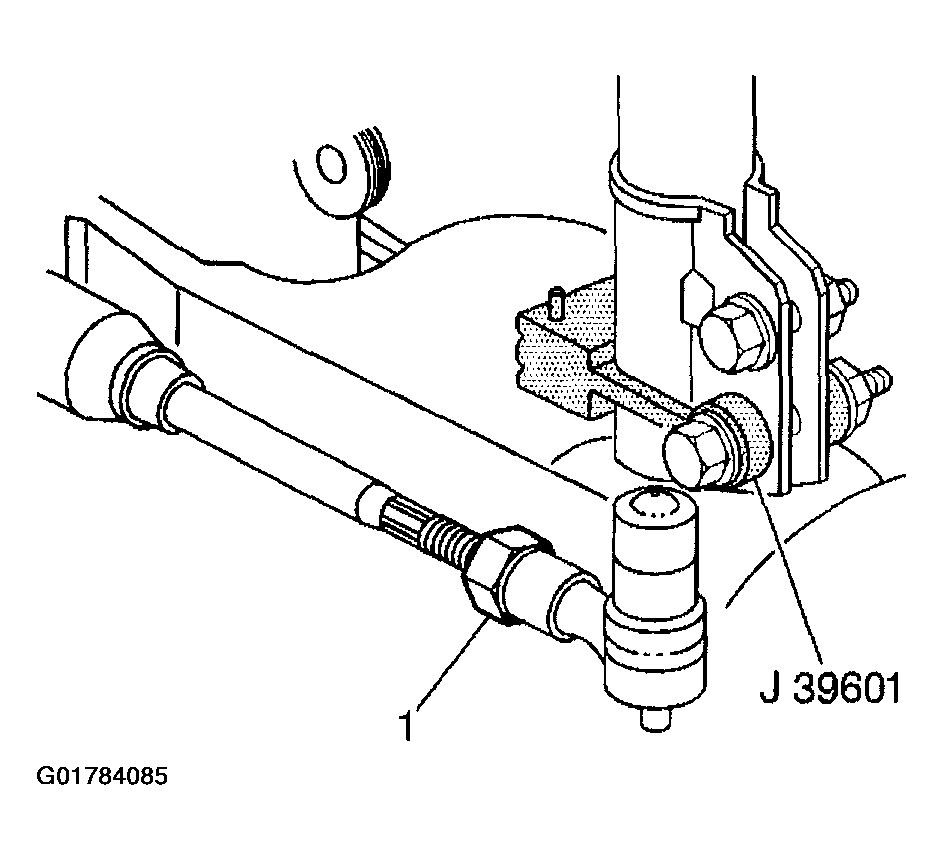

Fig 1: Loosening Jam Nuts On Tie Rod

Courtesy of GENERAL MOTORS CORP.
