Wheel Alignment Specifications & Adjustment Procedures
›
Specifications
›
Wheel Alignment Specifications
Wheel Alignment Specifications

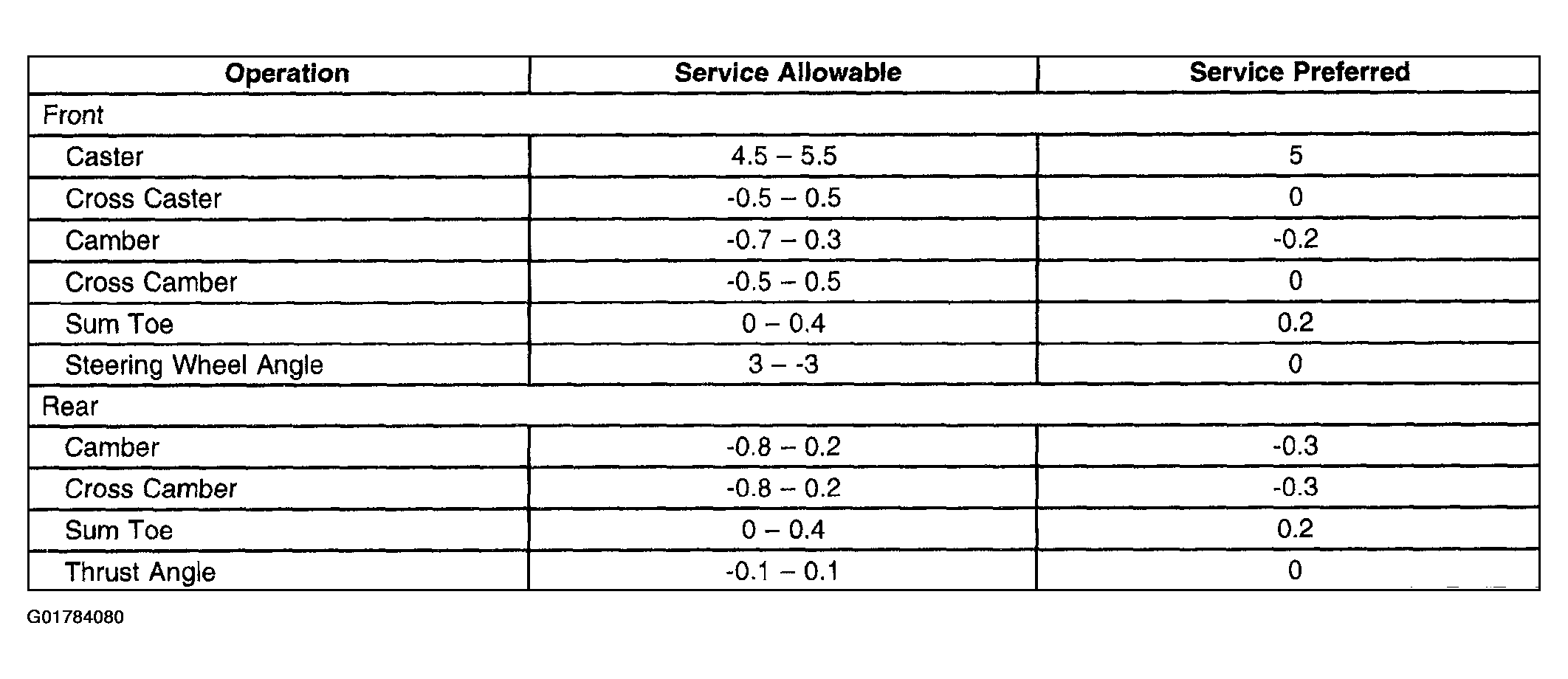

Fig 1: Identifying Wheel Alignment Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
