Park Relay: Installation

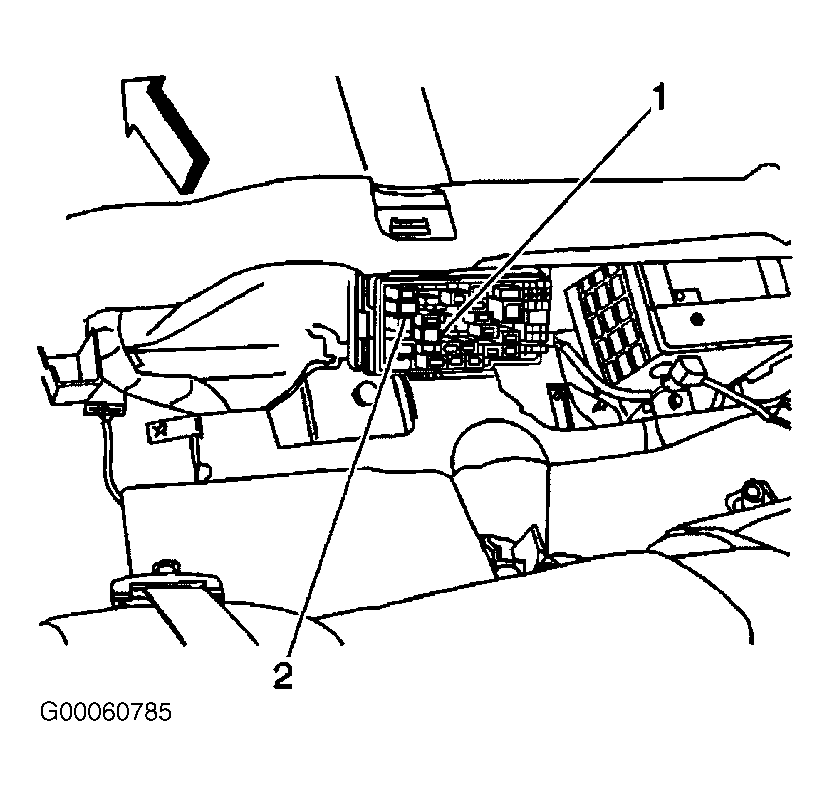

  1. Install the park relay (2) to the rear fuse block. See Figure .
  2. Install the rear fuse block cover.
  3. Install the rear lower seat cushion.
