Power Seat Systems Connector End Views

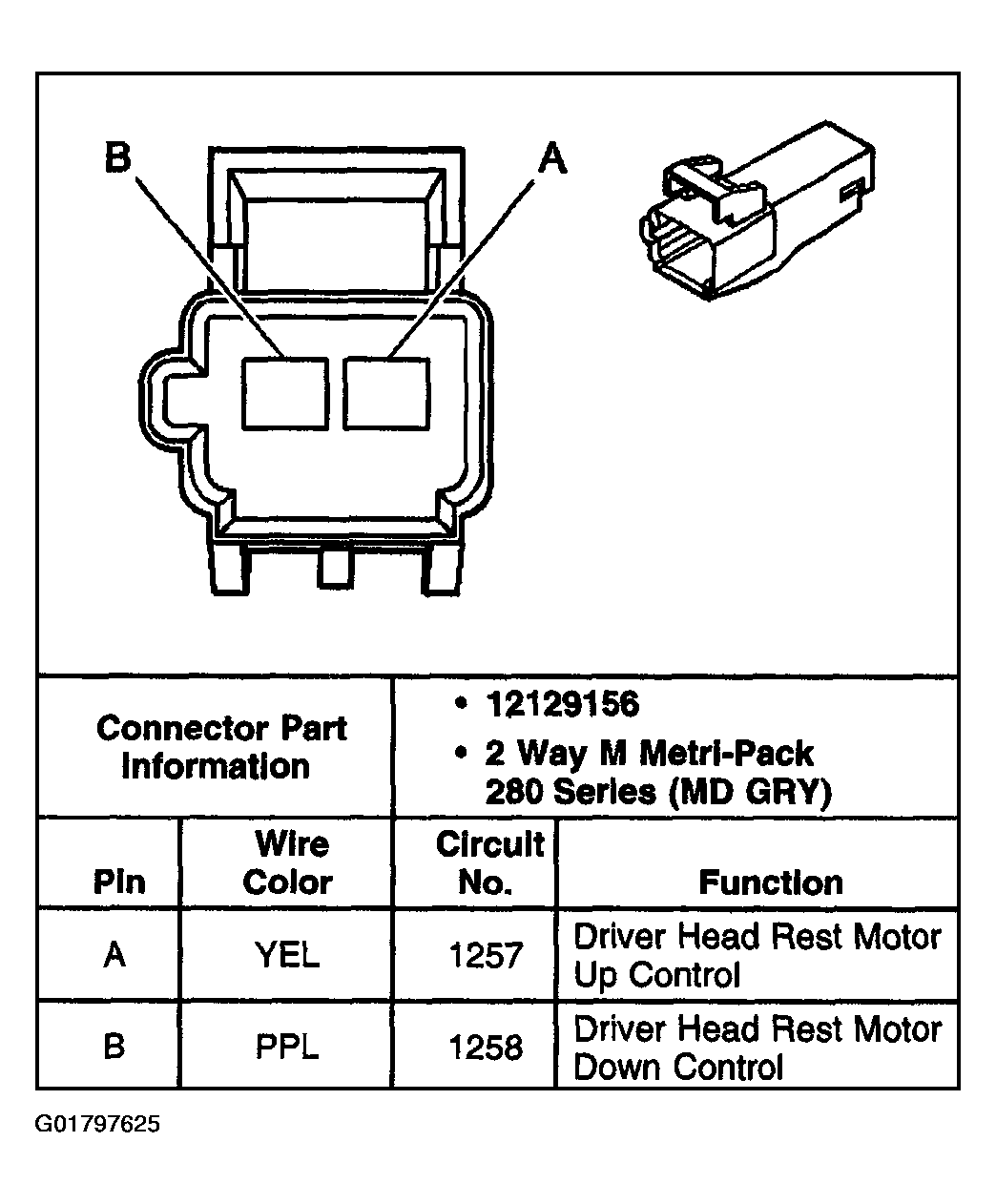

Fig 1: Headrest Motor - Driver

G01797625

Courtesy of GENERAL MOTORS CORP.

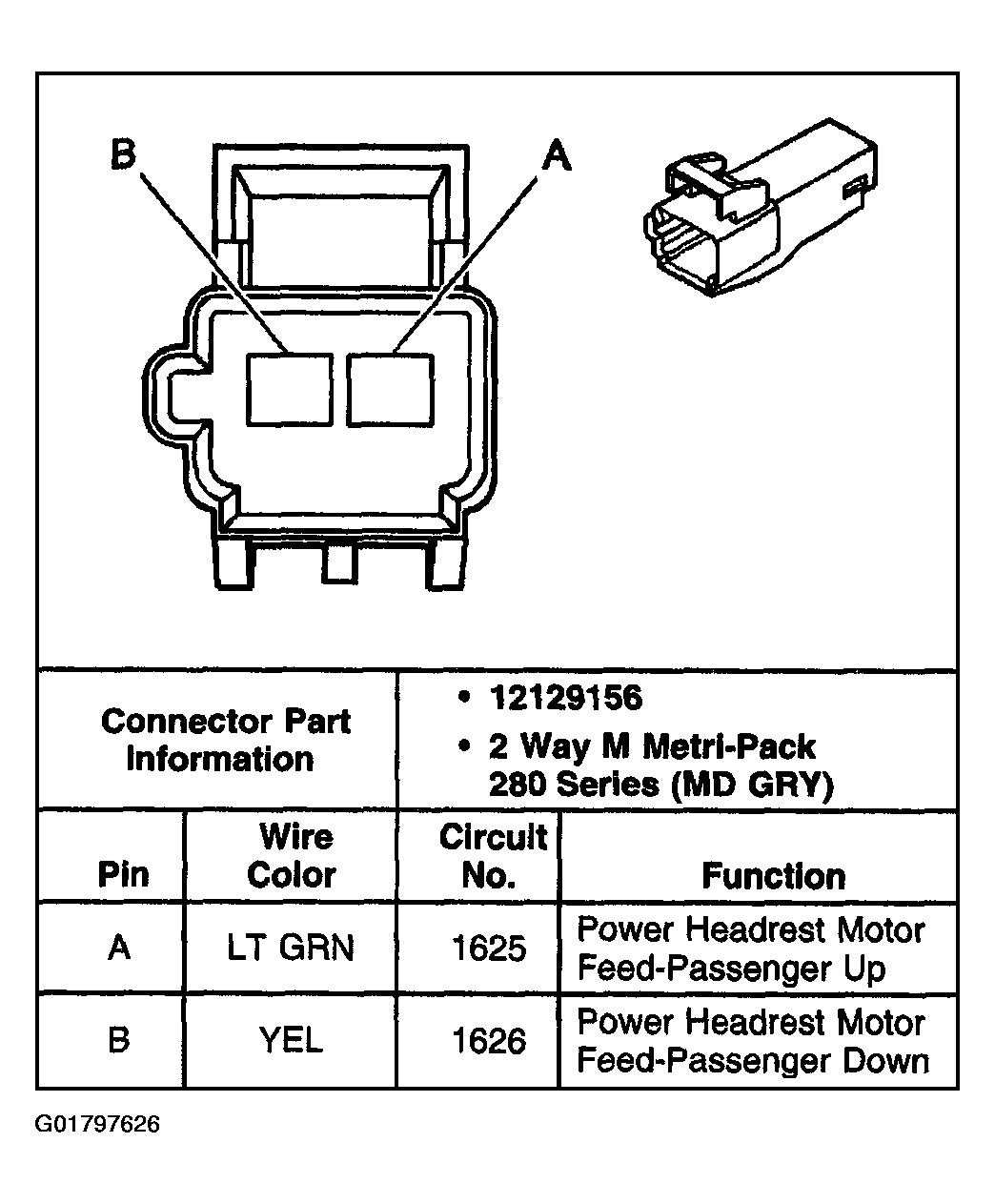

Fig 2: Headrest Motor - Front Passenger

G01797626

Courtesy of GENERAL MOTORS CORP.

Fig 3: Headrest Position Sensor - Driver

G01797627

Courtesy of GENERAL MOTORS CORP.

Fig 4: Heated Seat Cushion Element - Front Passenger

G01797628

Courtesy of GENERAL MOTORS CORP.

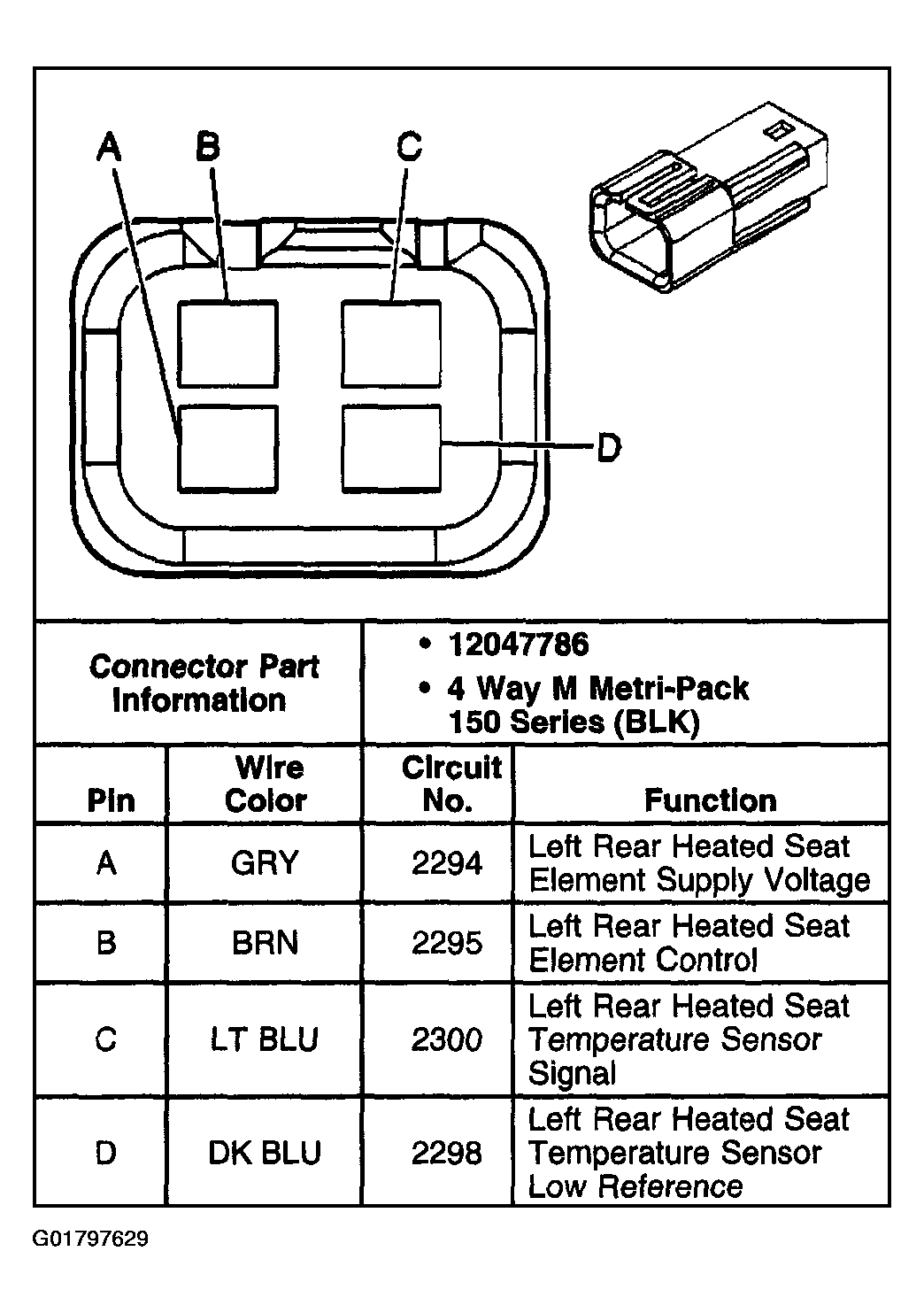

Fig 5: Heated Seat Cushion Element - LR

G01797629

Courtesy of GENERAL MOTORS CORP.

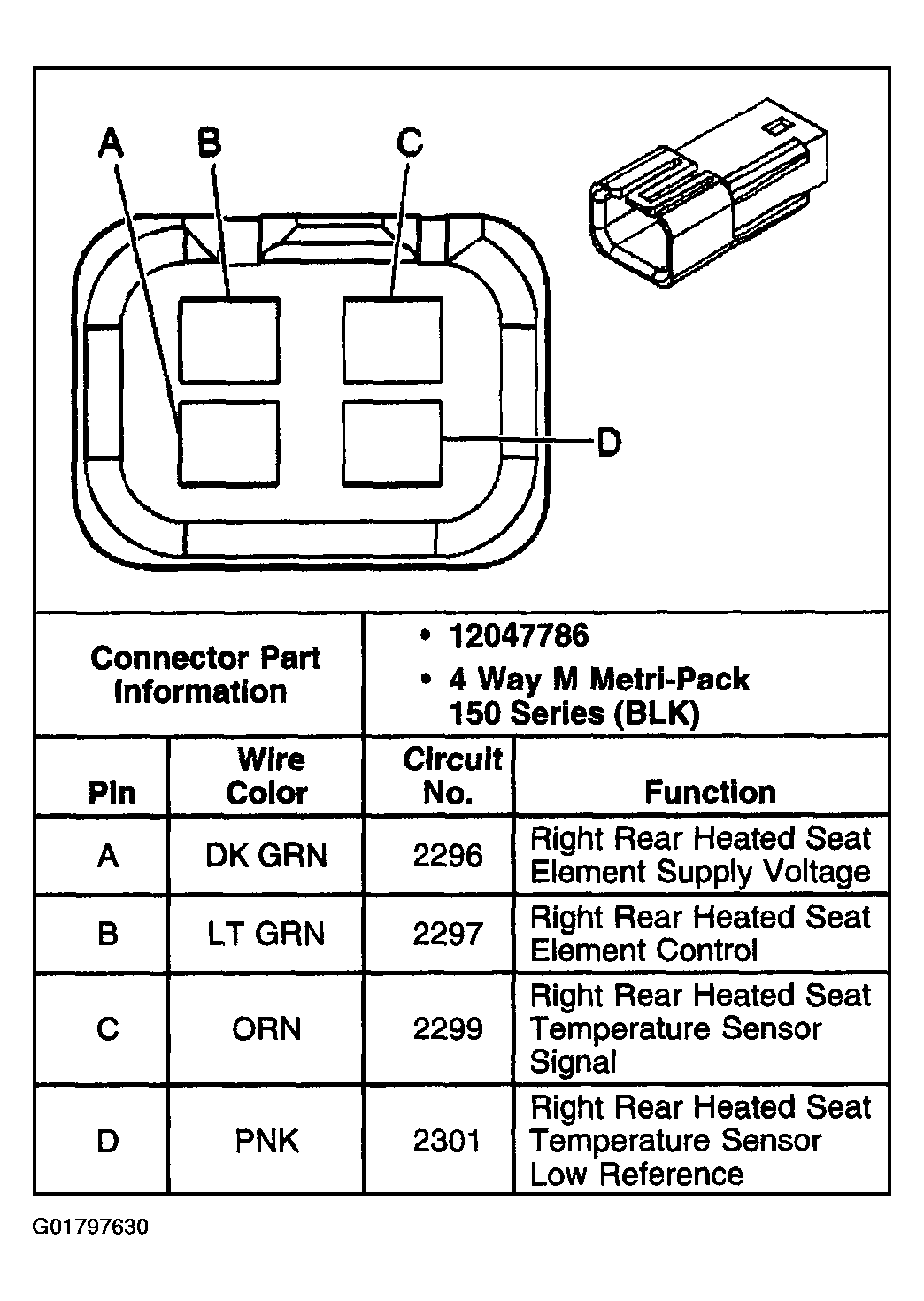

Fig 6: Heated Seat Cushion Element - RR

G01797630

Courtesy of GENERAL MOTORS CORP.

Fig 7: Heated Seat Module - Driver C1

G01797631

Courtesy of GENERAL MOTORS CORP.

Fig 8: Heated Seat Module - Driver C2

G01797632

Courtesy of GENERAL MOTORS CORP.

Fig 9: Heated Seat Module - Driver C3

G01797633

Courtesy of GENERAL MOTORS CORP.

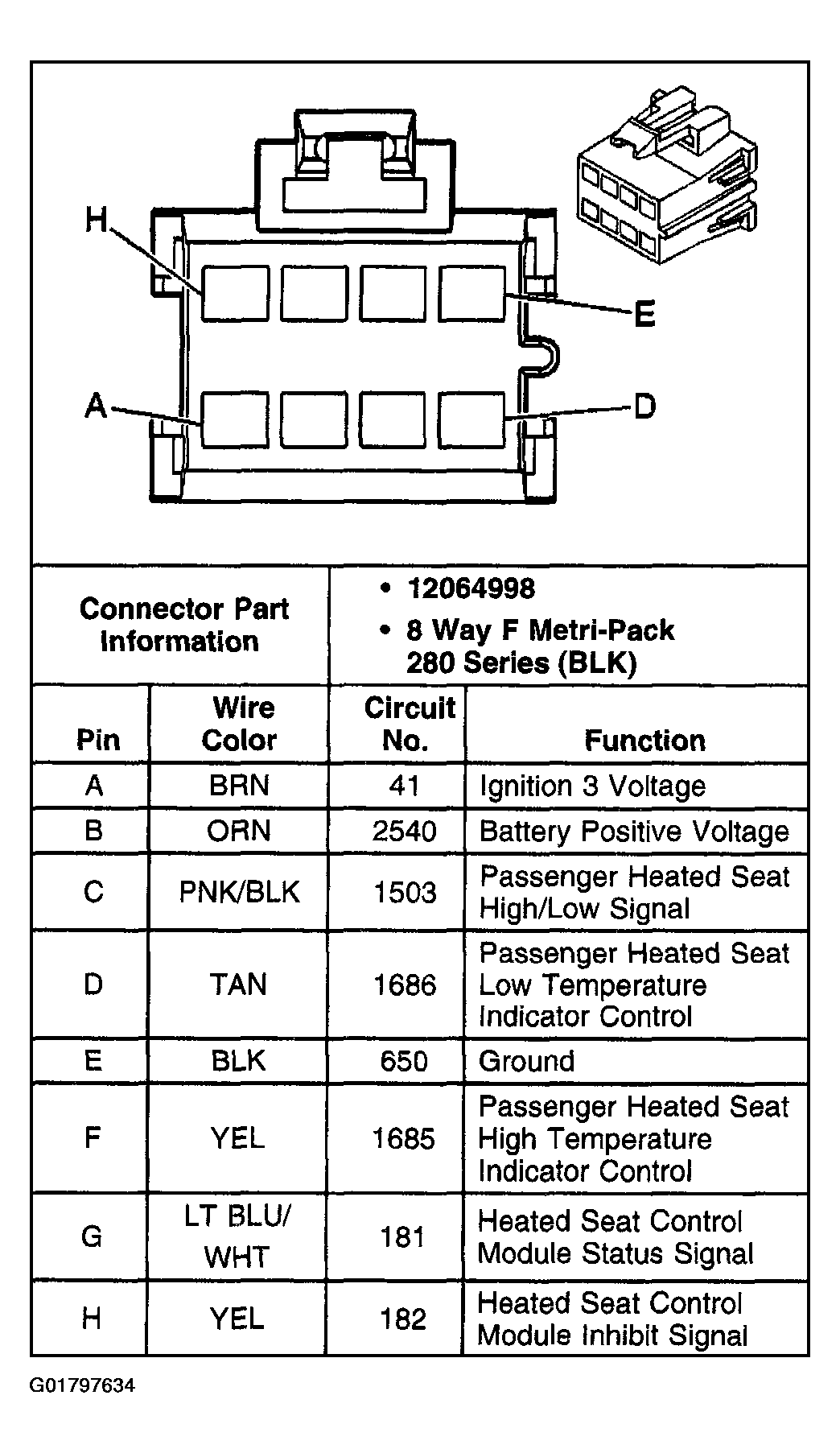

Fig 10: Heated Seat Module - Front Passenger C1

G01797634

Courtesy of GENERAL MOTORS CORP.

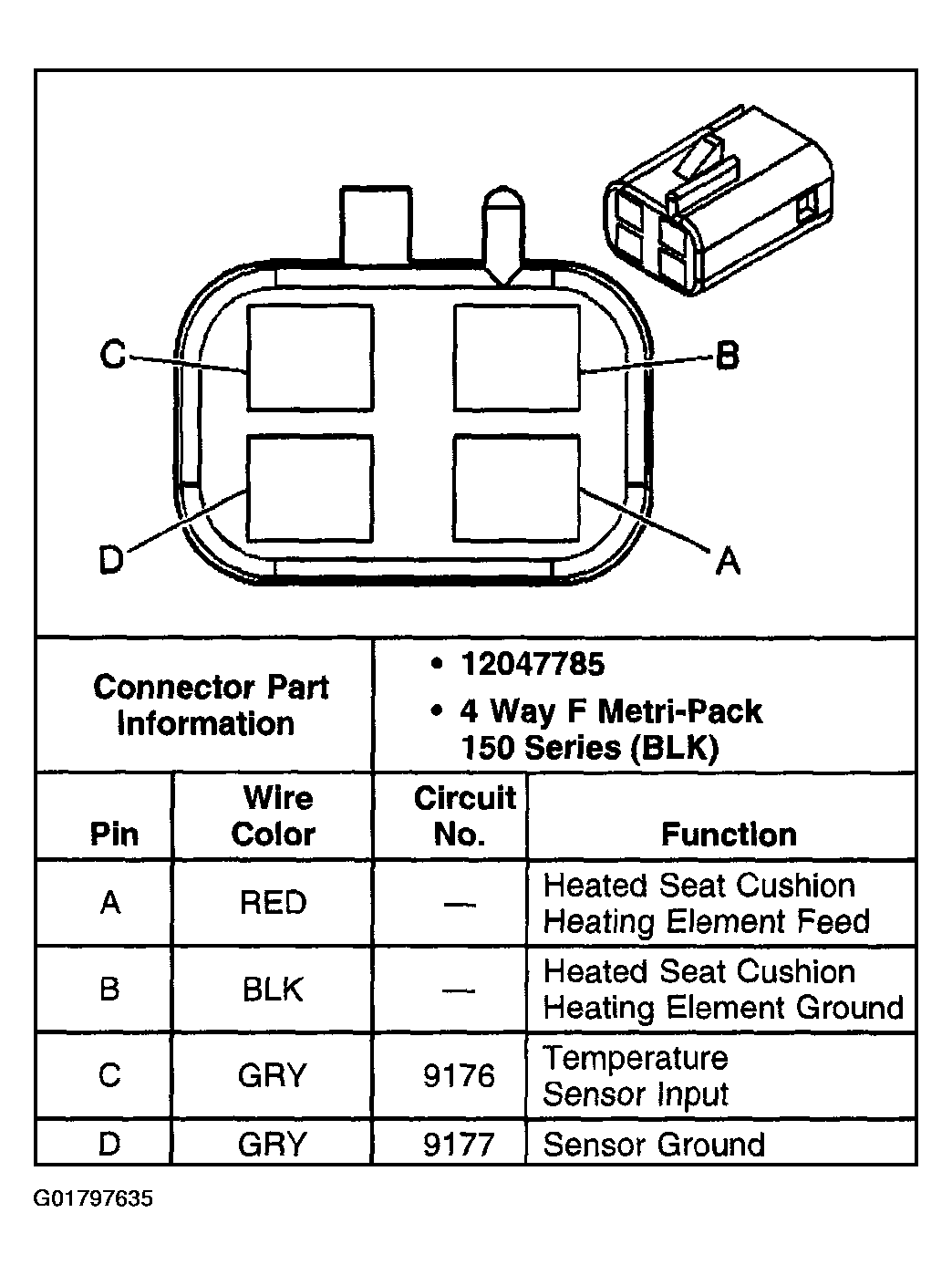

Fig 11: Heated Seat Module - Front Passenger C2

G01797635

Courtesy of GENERAL MOTORS CORP.

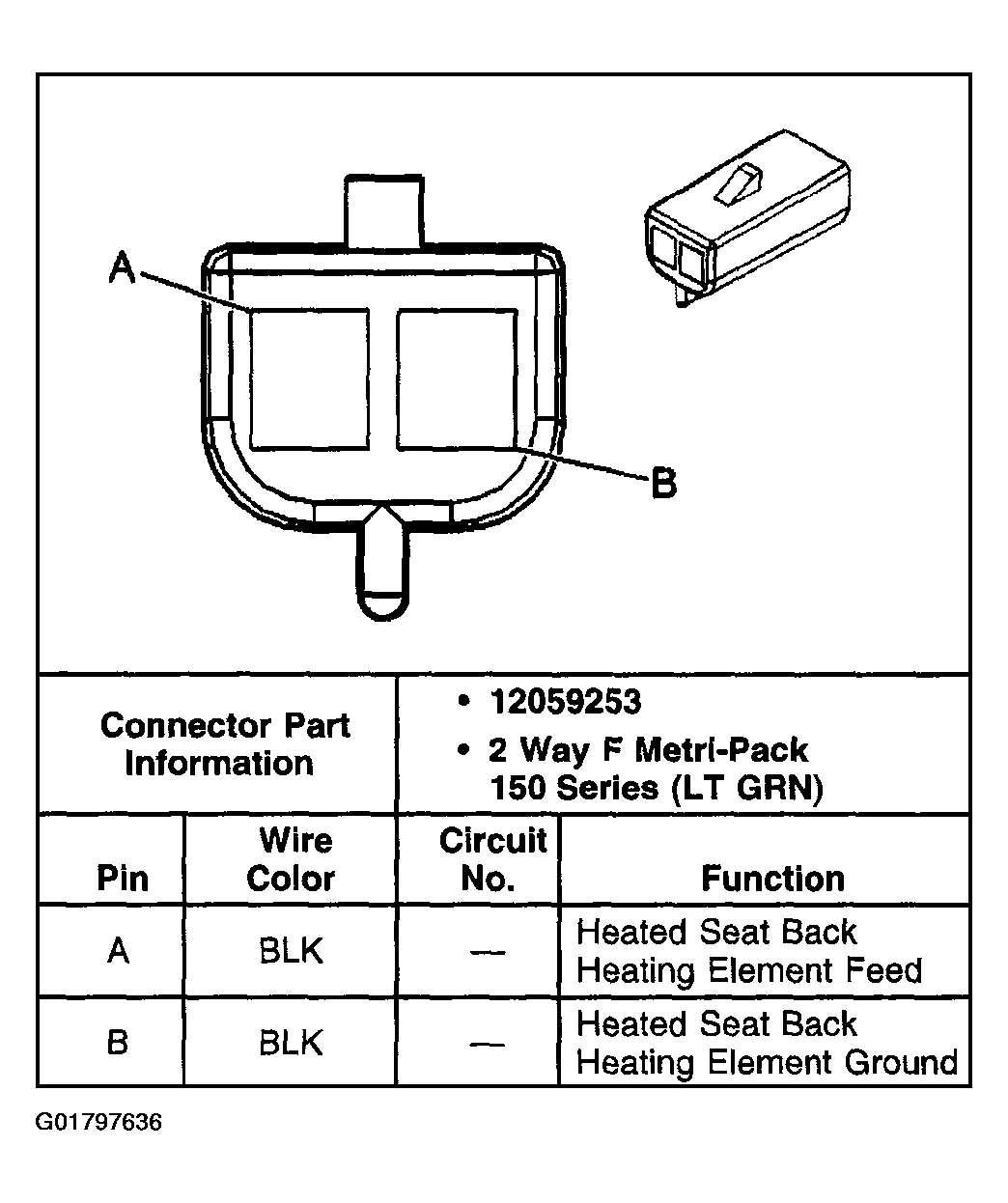

Fig 12: Heated Seat Module - Front Passenger C3

G01797636

Courtesy of GENERAL MOTORS CORP.

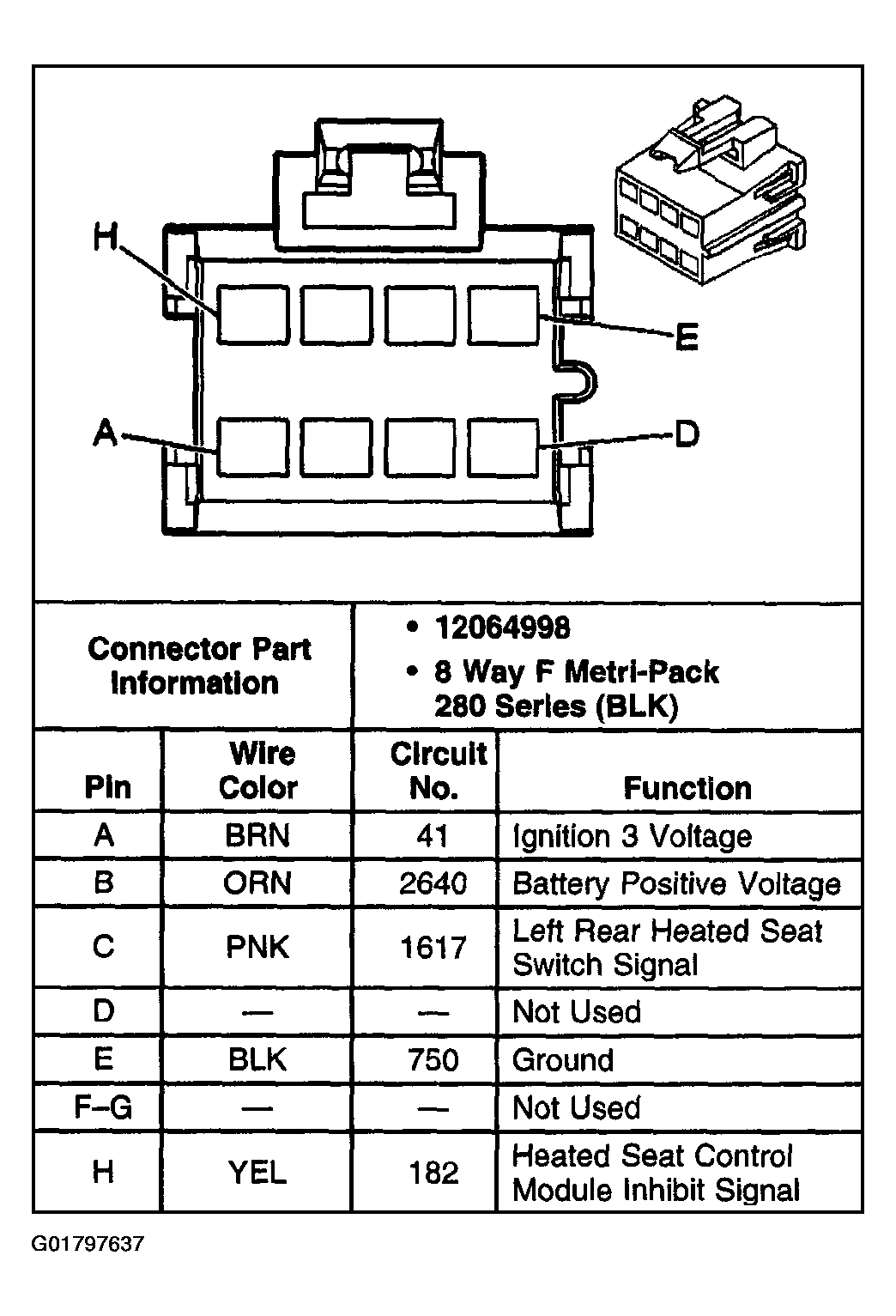

Fig 13: Heated Seat Module - LR C1

G01797637

Courtesy of GENERAL MOTORS CORP.

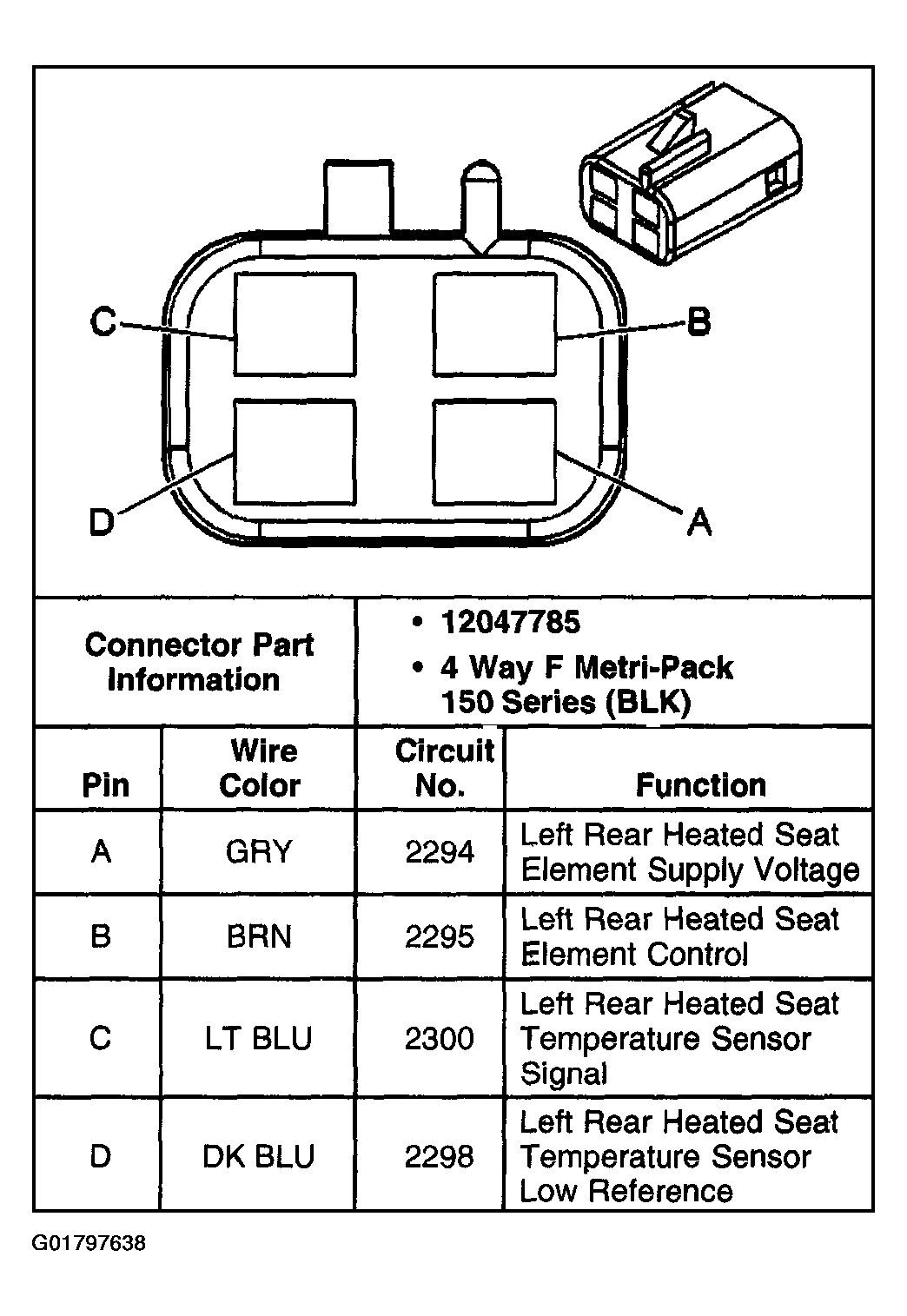

Fig 14: Heated Seat Module - LR C2

G01797638

Courtesy of GENERAL MOTORS CORP.

Fig 15: Heated Seat Module - LR C3

G01797639

Courtesy of GENERAL MOTORS CORP.

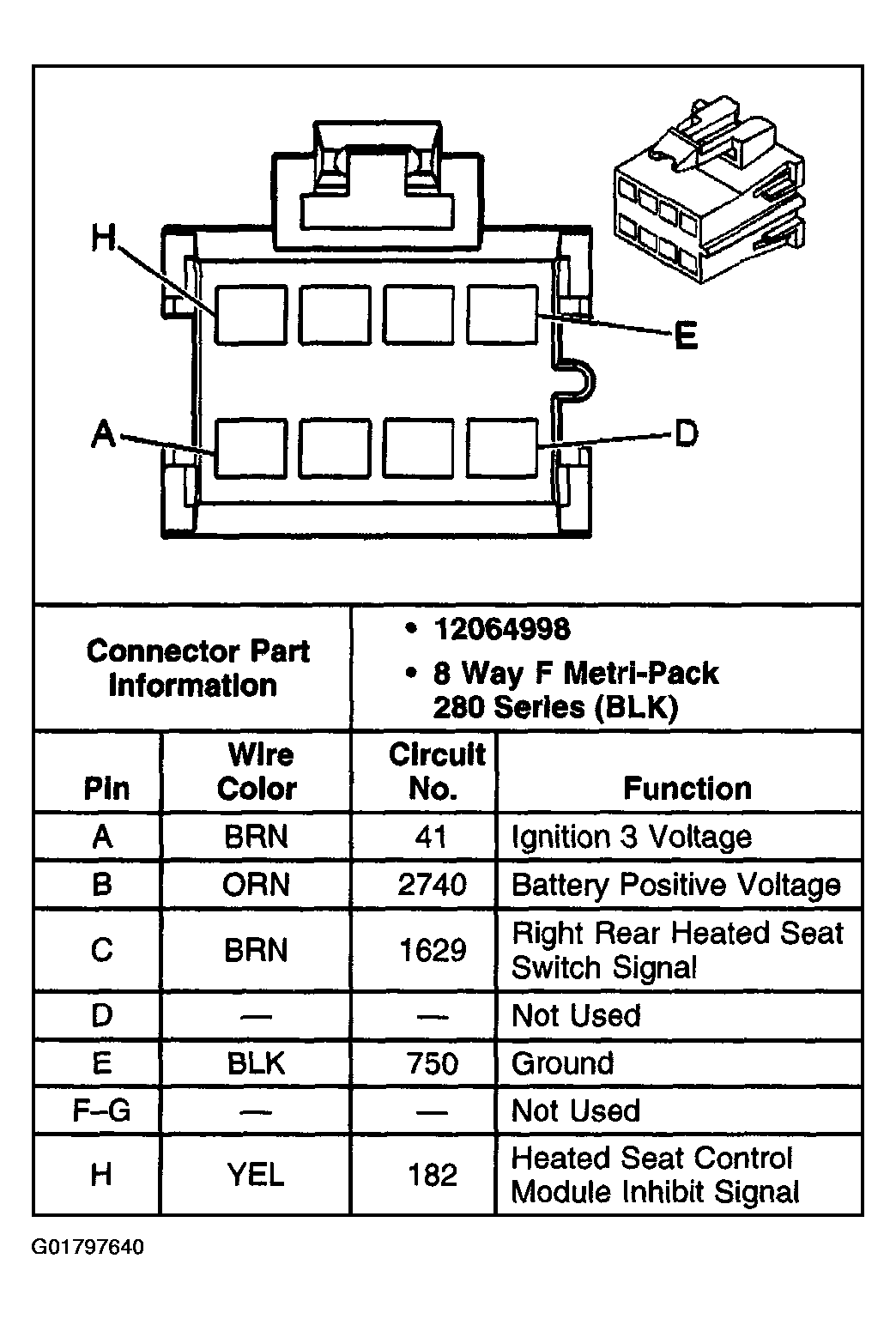

Fig 16: Heated Seat Module - RR C1

G01797640

Courtesy of GENERAL MOTORS CORP.

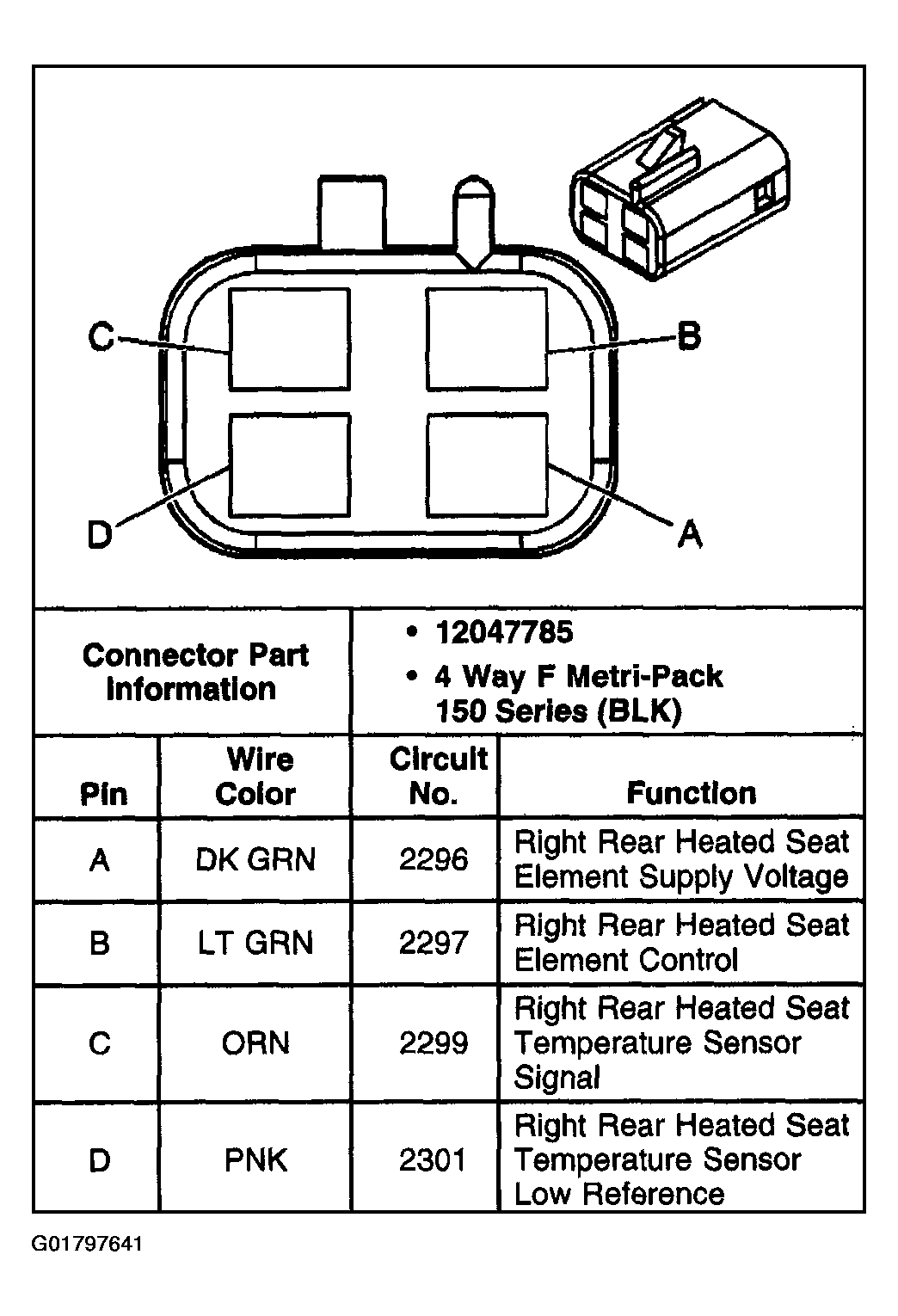

Fig 17: Heated Seat Module - RR C2

G01797641

Courtesy of GENERAL MOTORS CORP.

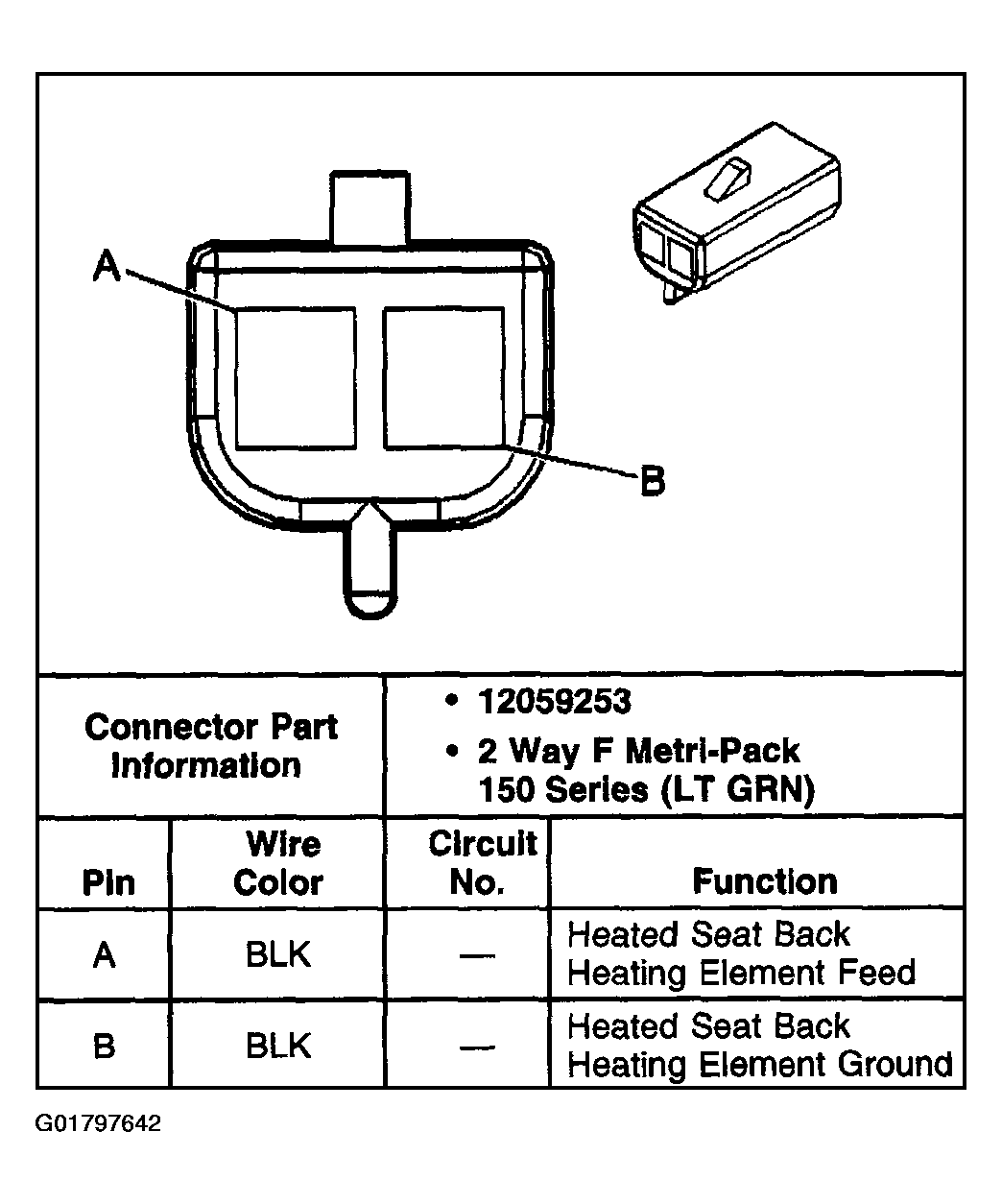

Fig 18: Heated Seat Module - RR C3

G01797642

Courtesy of GENERAL MOTORS CORP.

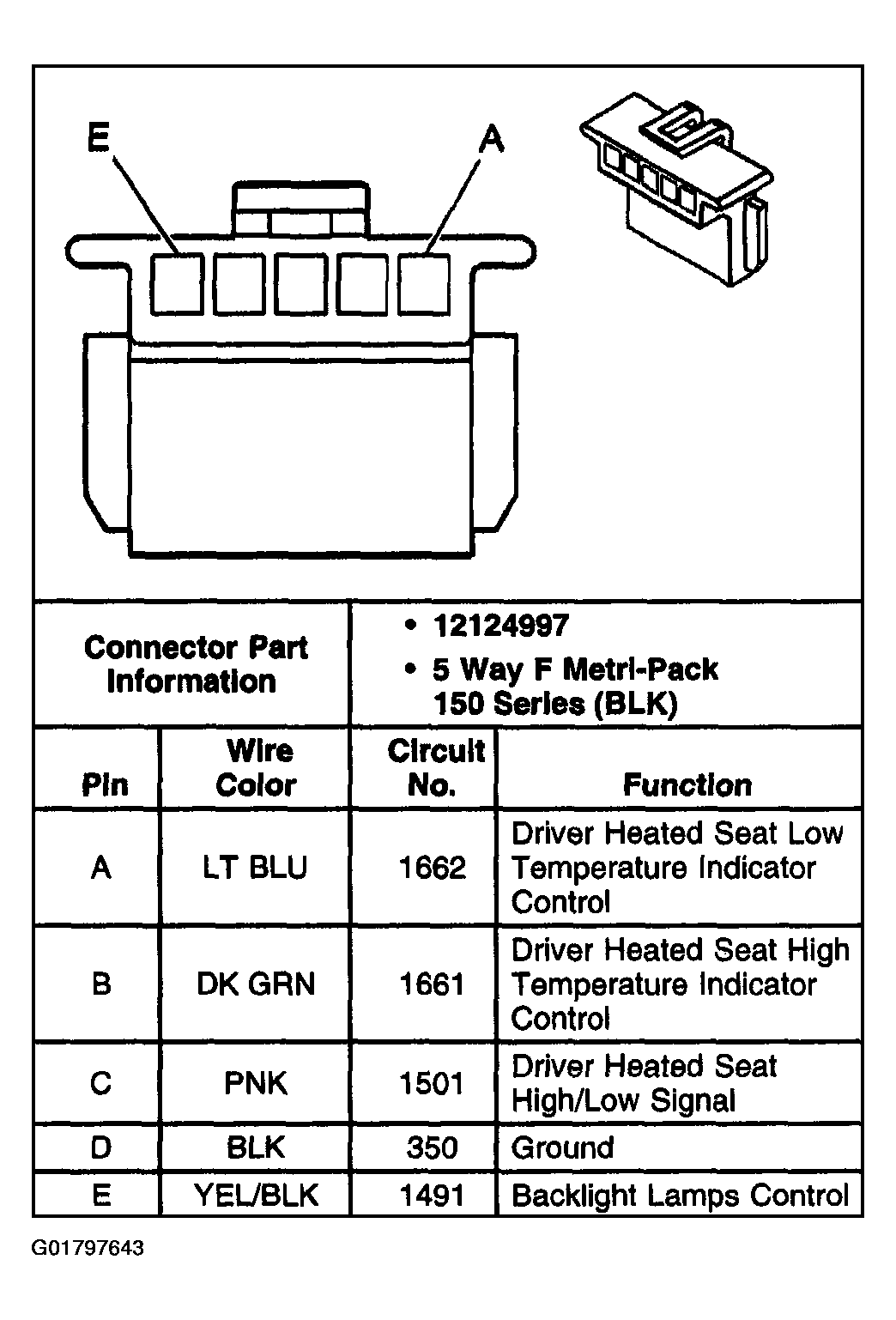

Fig 19: Heated Seat Switch - Driver

G01797643

Courtesy of GENERAL MOTORS CORP.

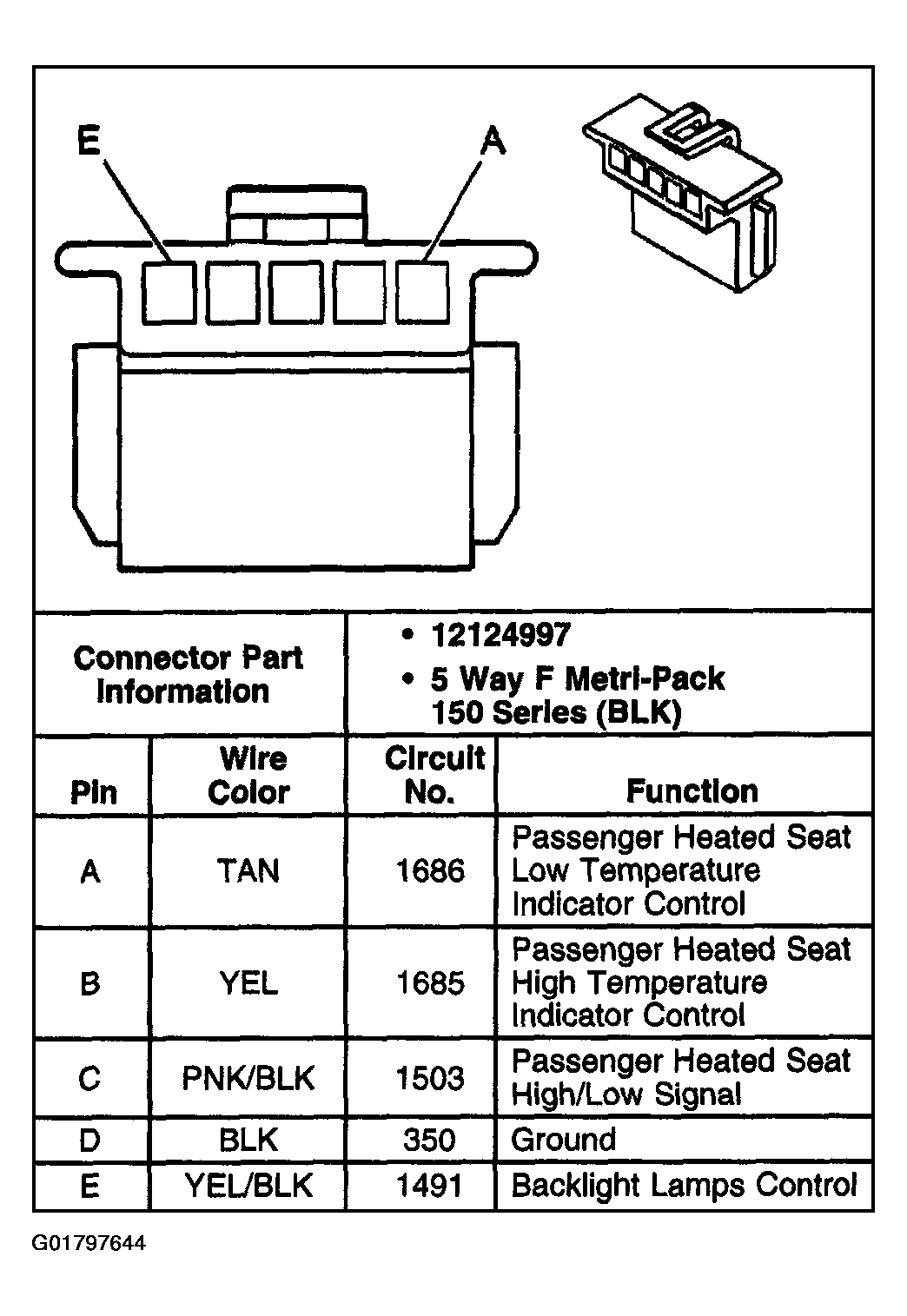

Fig 20: Heated Seat Switch - Front Passenger

G01797644

Courtesy of GENERAL MOTORS CORP.

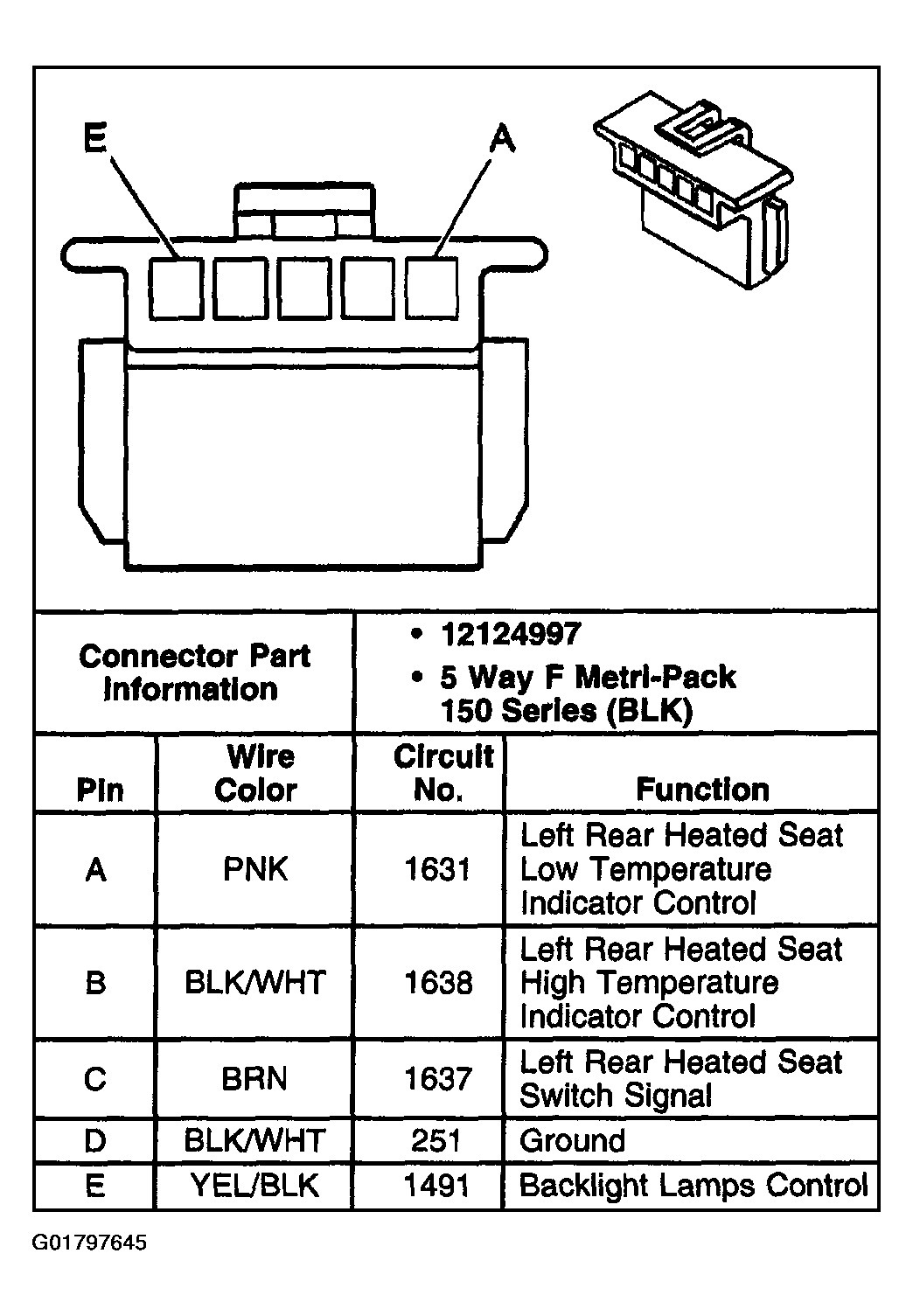

Fig 21: Heated Seat Switch - LR

G01797645

Courtesy of GENERAL MOTORS CORP.

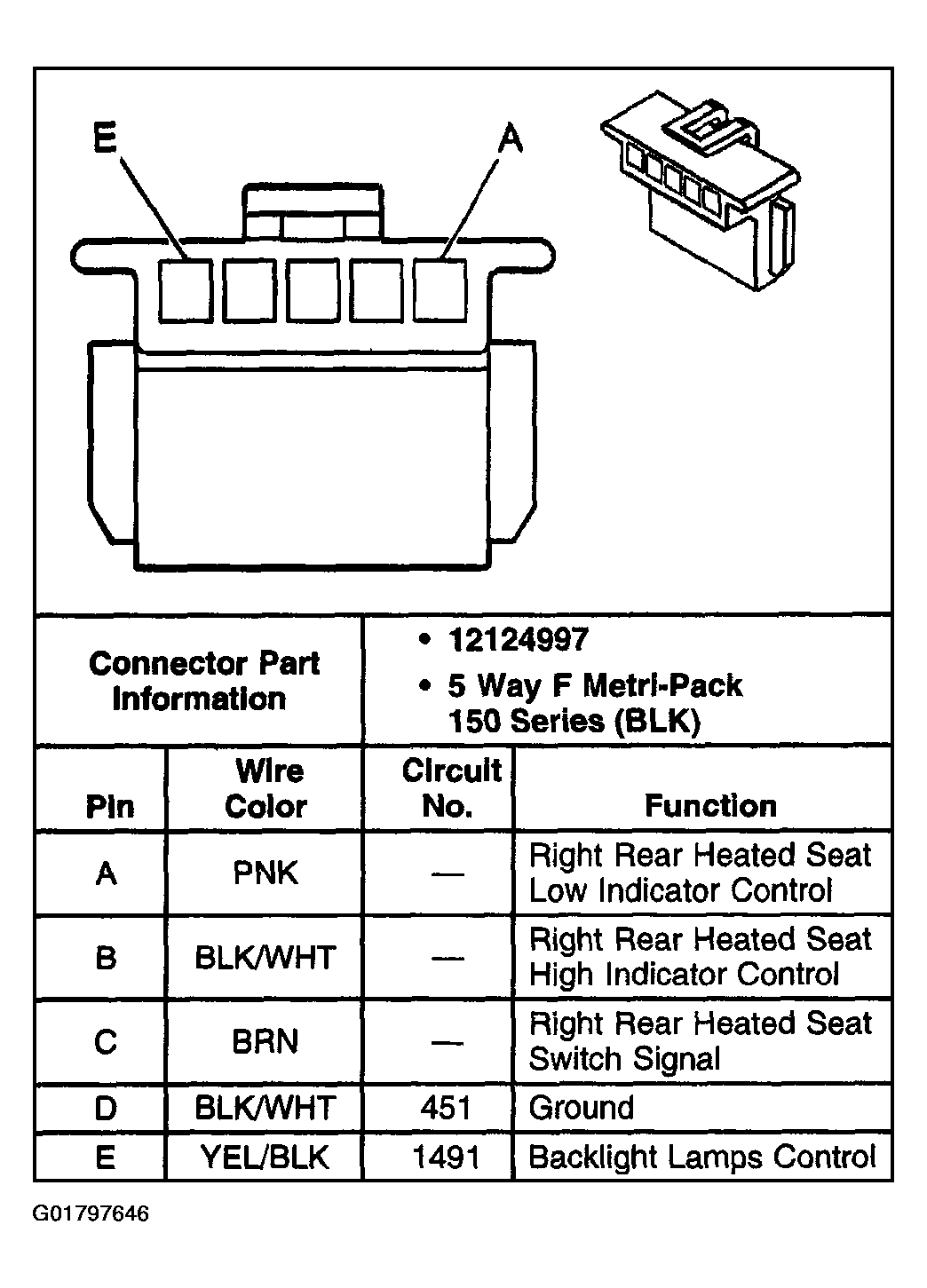

Fig 22: Heated Seat Switch - RR

G01797646

Courtesy of GENERAL MOTORS CORP.

Fig 23: Memory Seat Module (MSM) C1

G01797647

Courtesy of GENERAL MOTORS CORP.

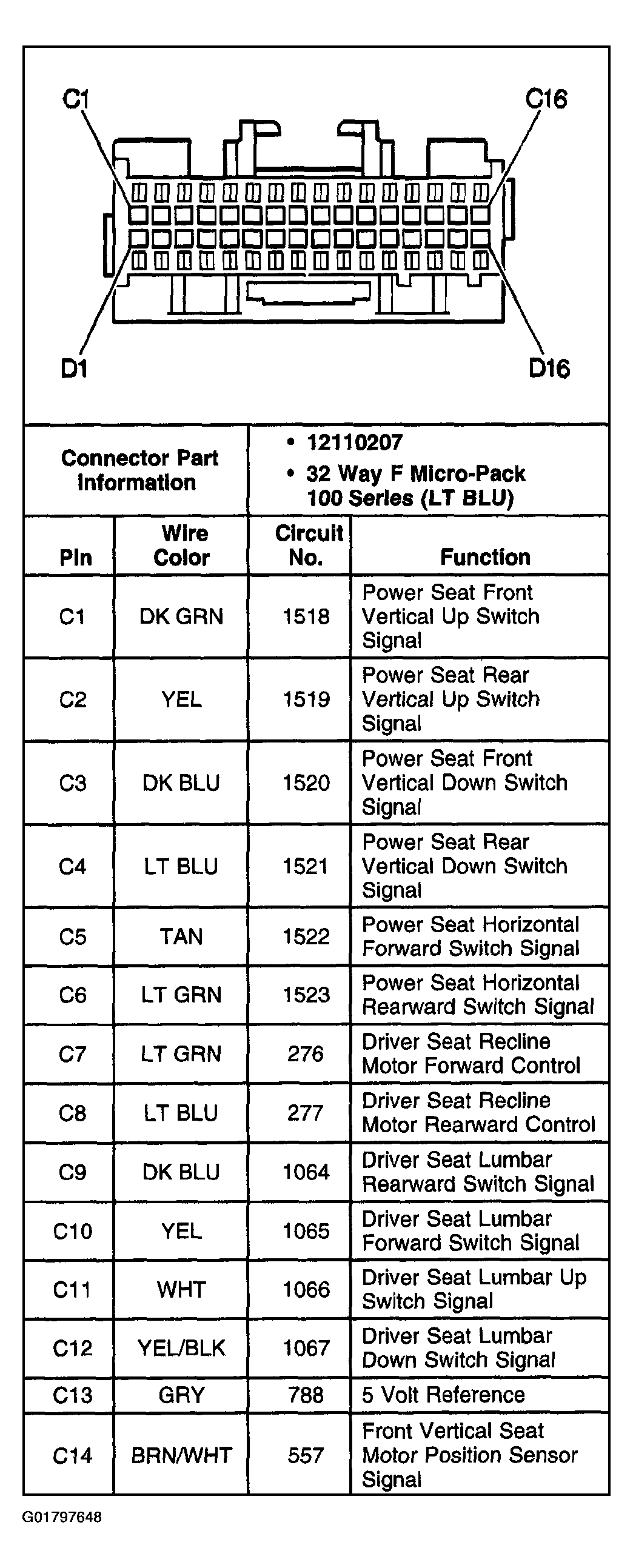

Fig 24: Memory Seat Module (MSM) C2 (AL2) (1 Of 2)

G01797648

Courtesy of GENERAL MOTORS CORP.

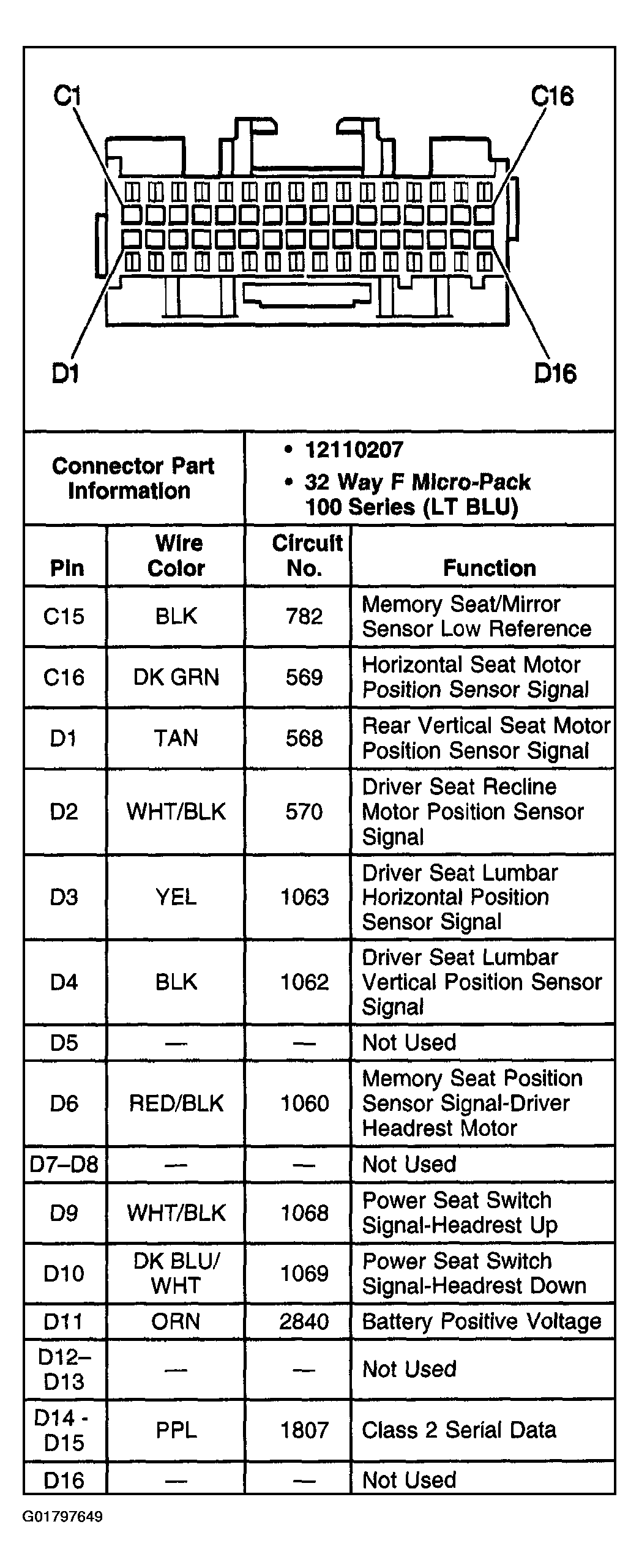

Fig 25: Memory Seat Module (MSM) C2 (AL2) (2 Of 2)

G01797649

Courtesy of GENERAL MOTORS CORP.

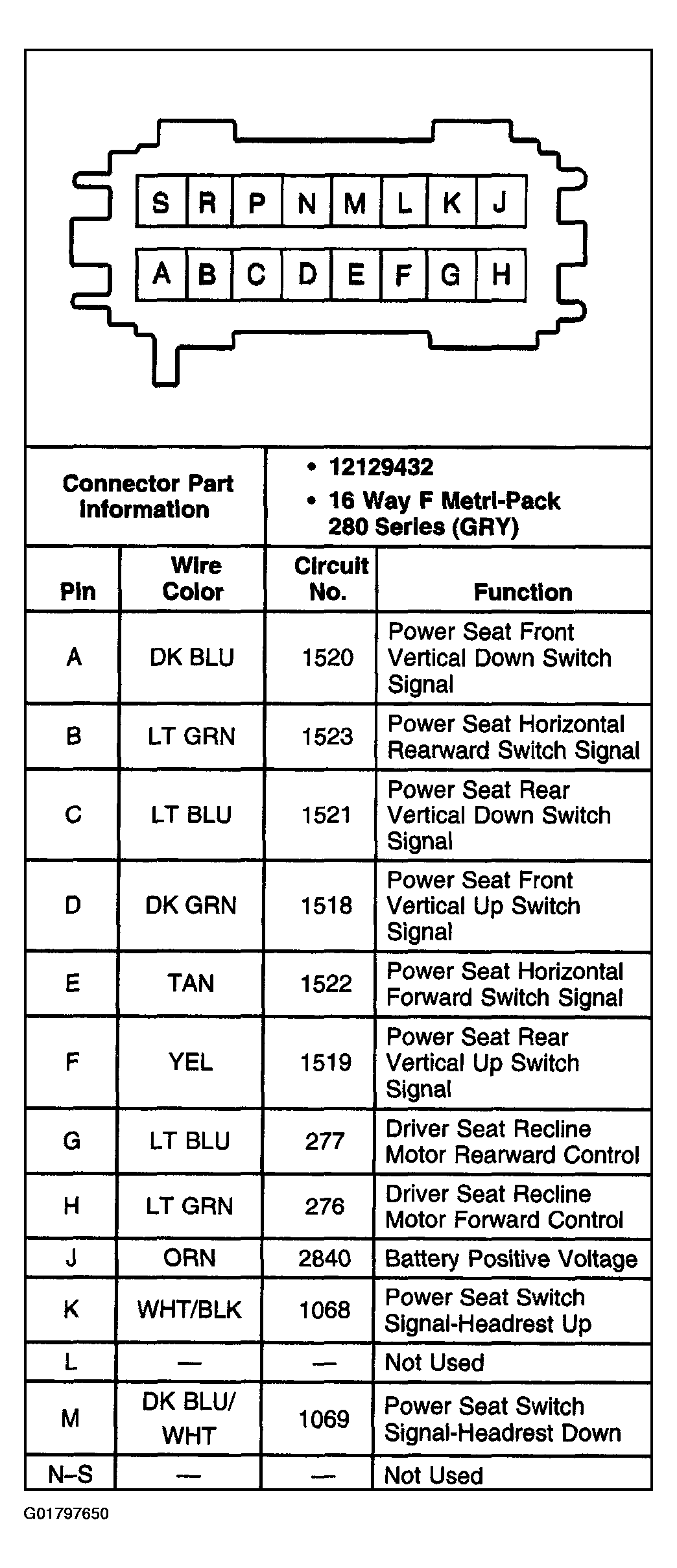

Fig 26: Seat Adjuster Switch - Driver (A45)

G01797650

Courtesy of GENERAL MOTORS CORP.

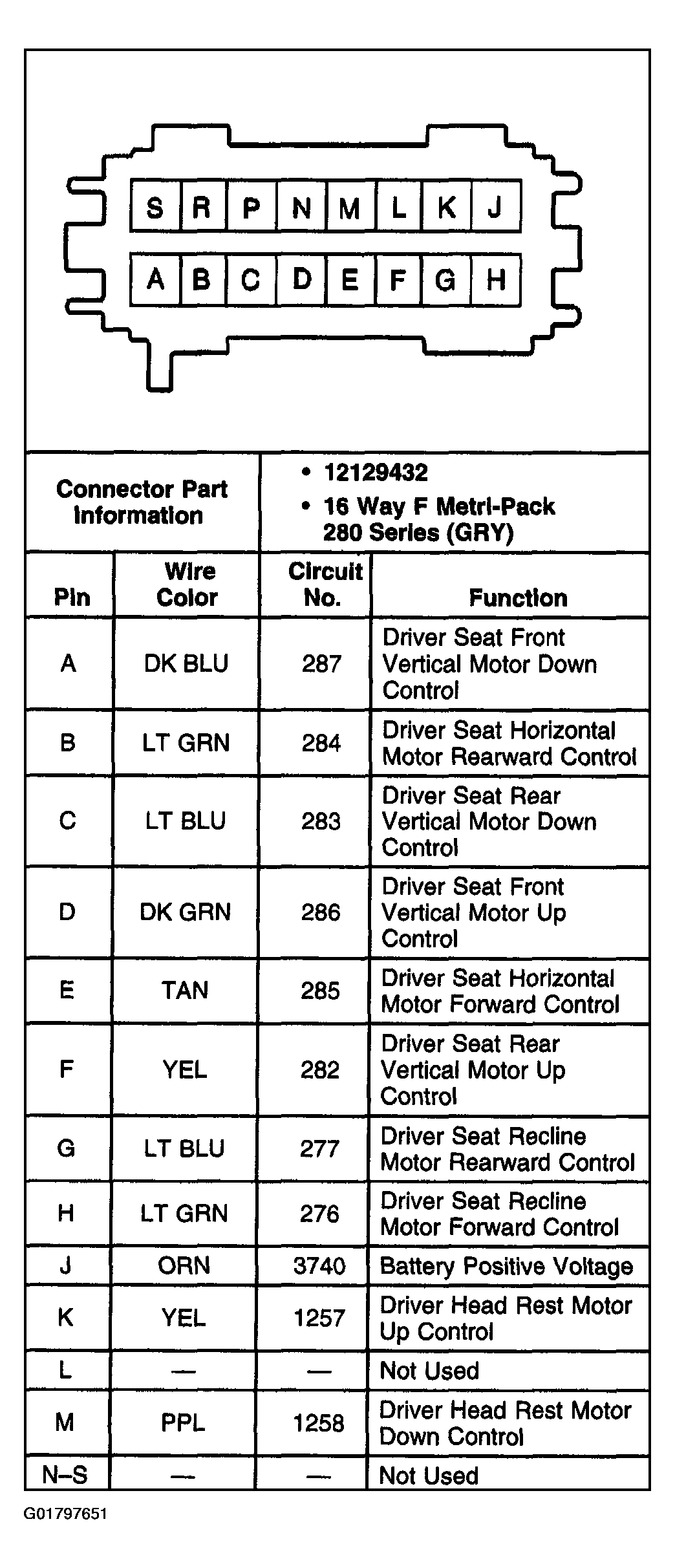

Fig 27: Seat Adjuster Switch - Driver (without A45)

G01797651

Courtesy of GENERAL MOTORS CORP.

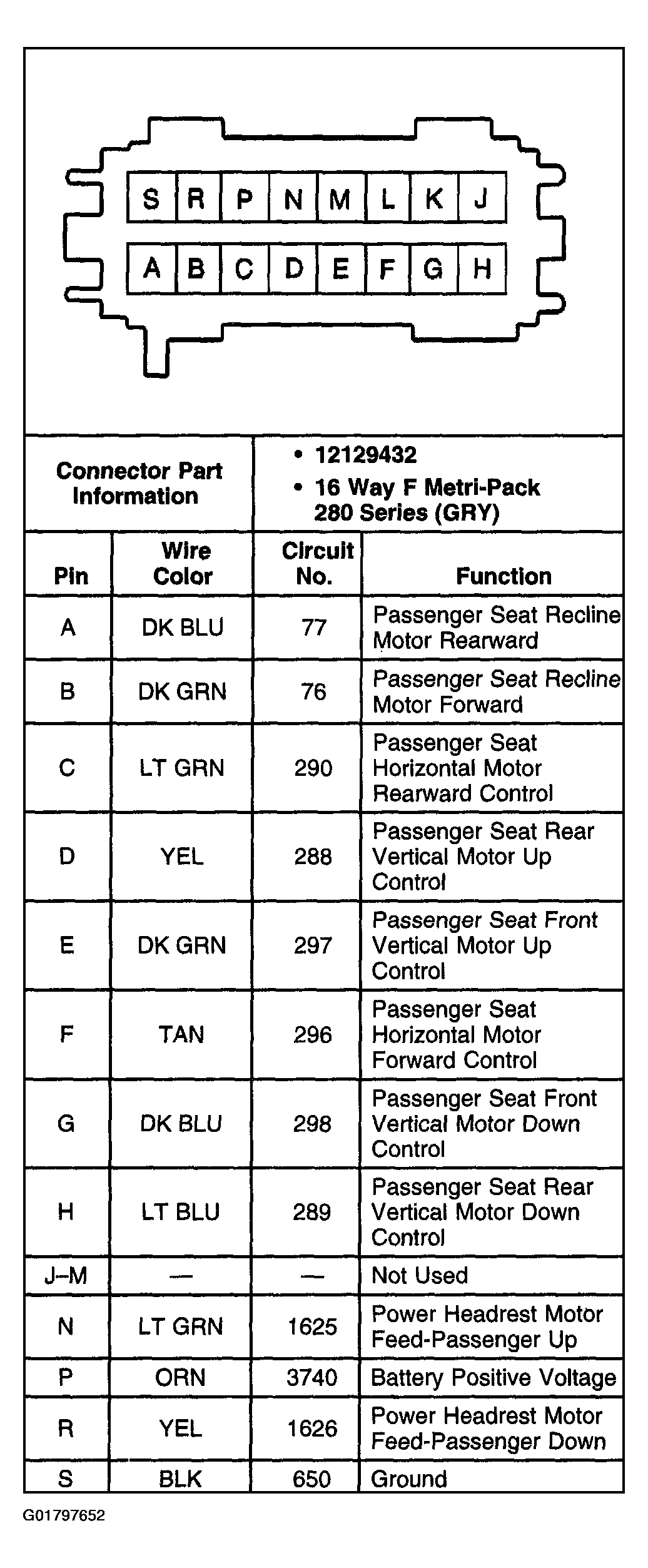

Fig 28: Seat Adjuster Switch - Front Passenger

G01797652

Courtesy of GENERAL MOTORS CORP.

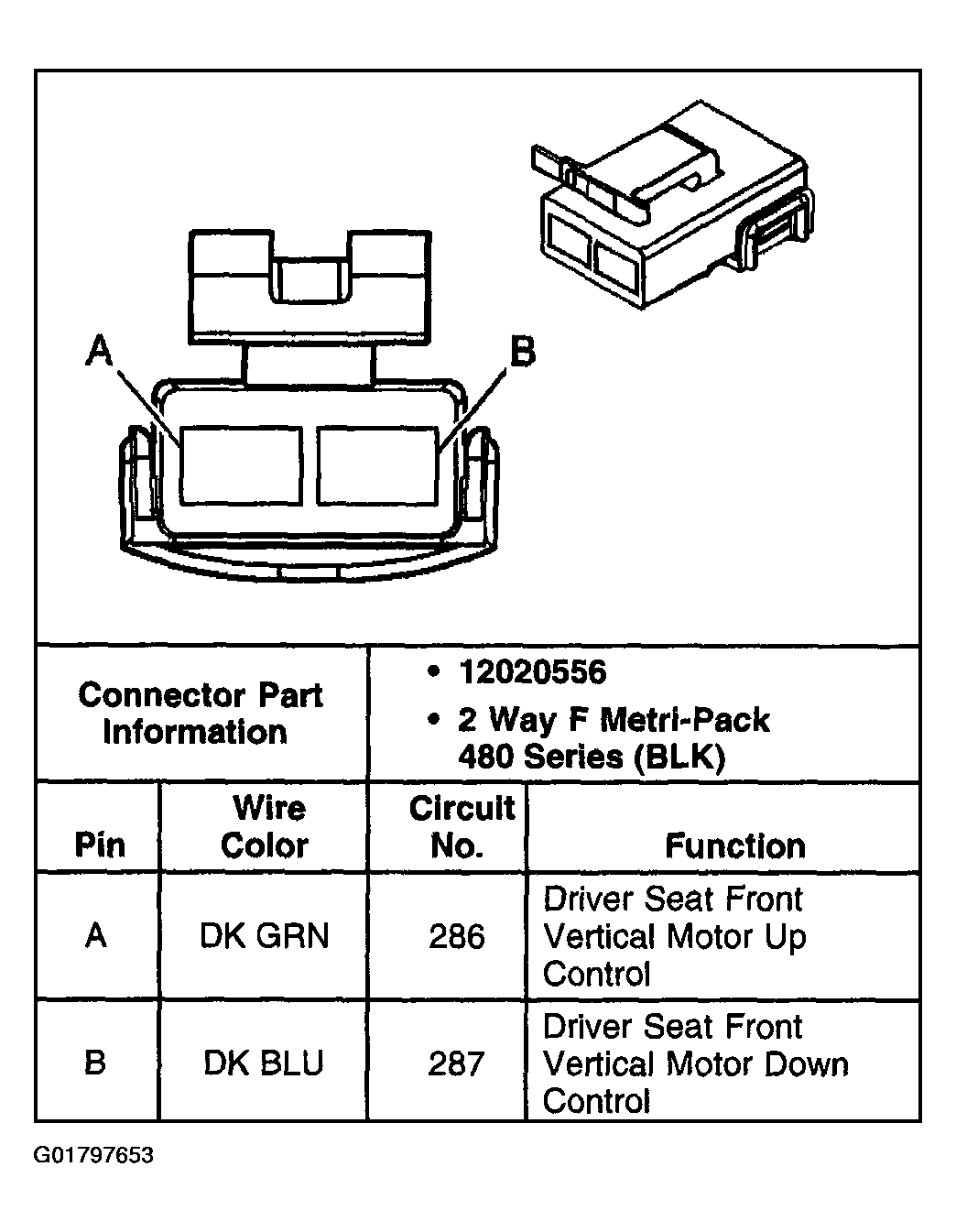

Fig 29: Seat Front Vertical Adjuster Motor - Driver

G01797653

Courtesy of GENERAL MOTORS CORP.

Fig 30: Seat Front Vertical Adjuster Motor - Front Passenger

G01797654

Courtesy of GENERAL MOTORS CORP.

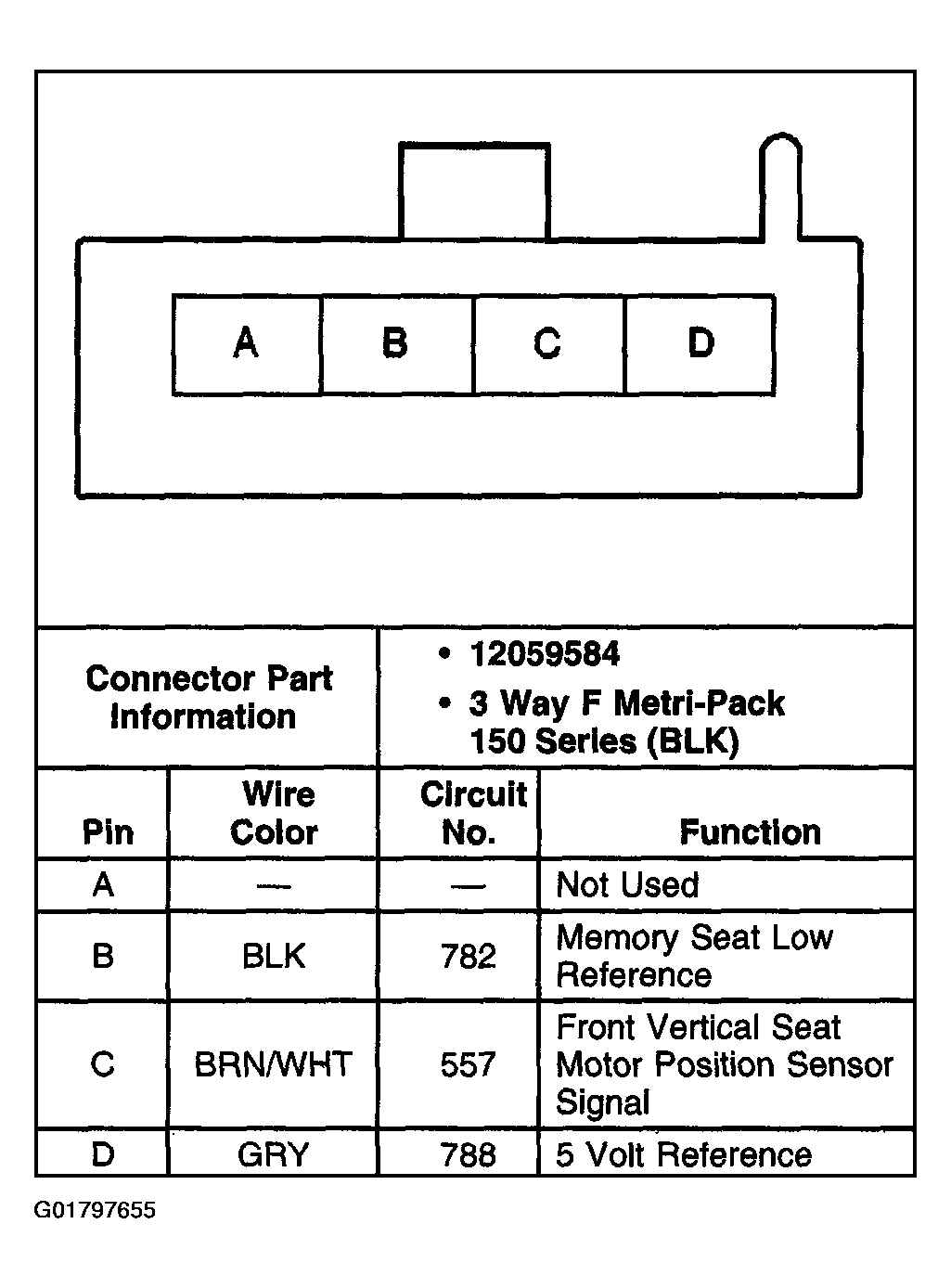

Fig 31: Seat Front Vertical Position Sensor - Driver

G01797655

Courtesy of GENERAL MOTORS CORP.

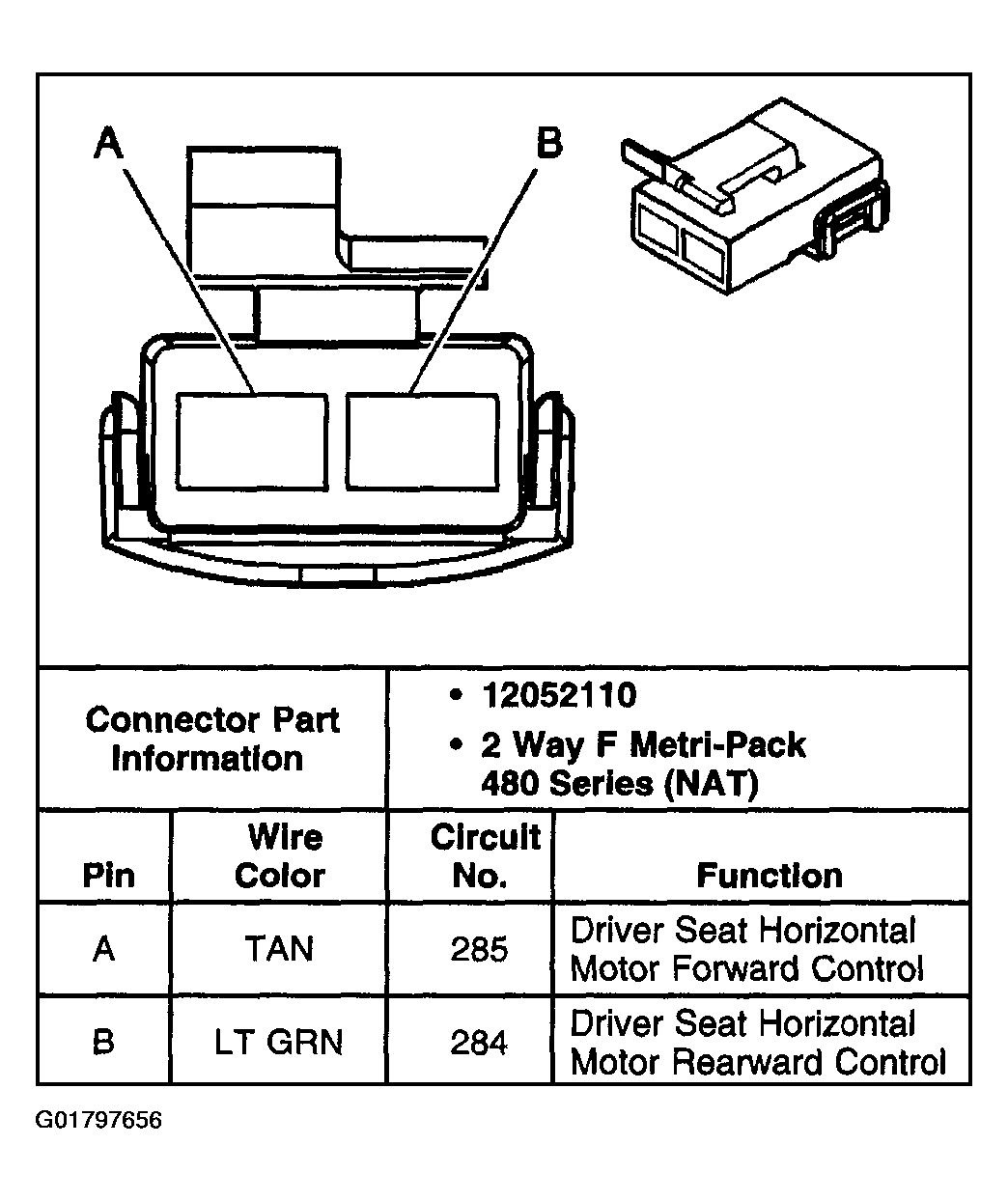

Fig 32: Seat Horizontal Motor - Driver

G01797656

Courtesy of GENERAL MOTORS CORP.

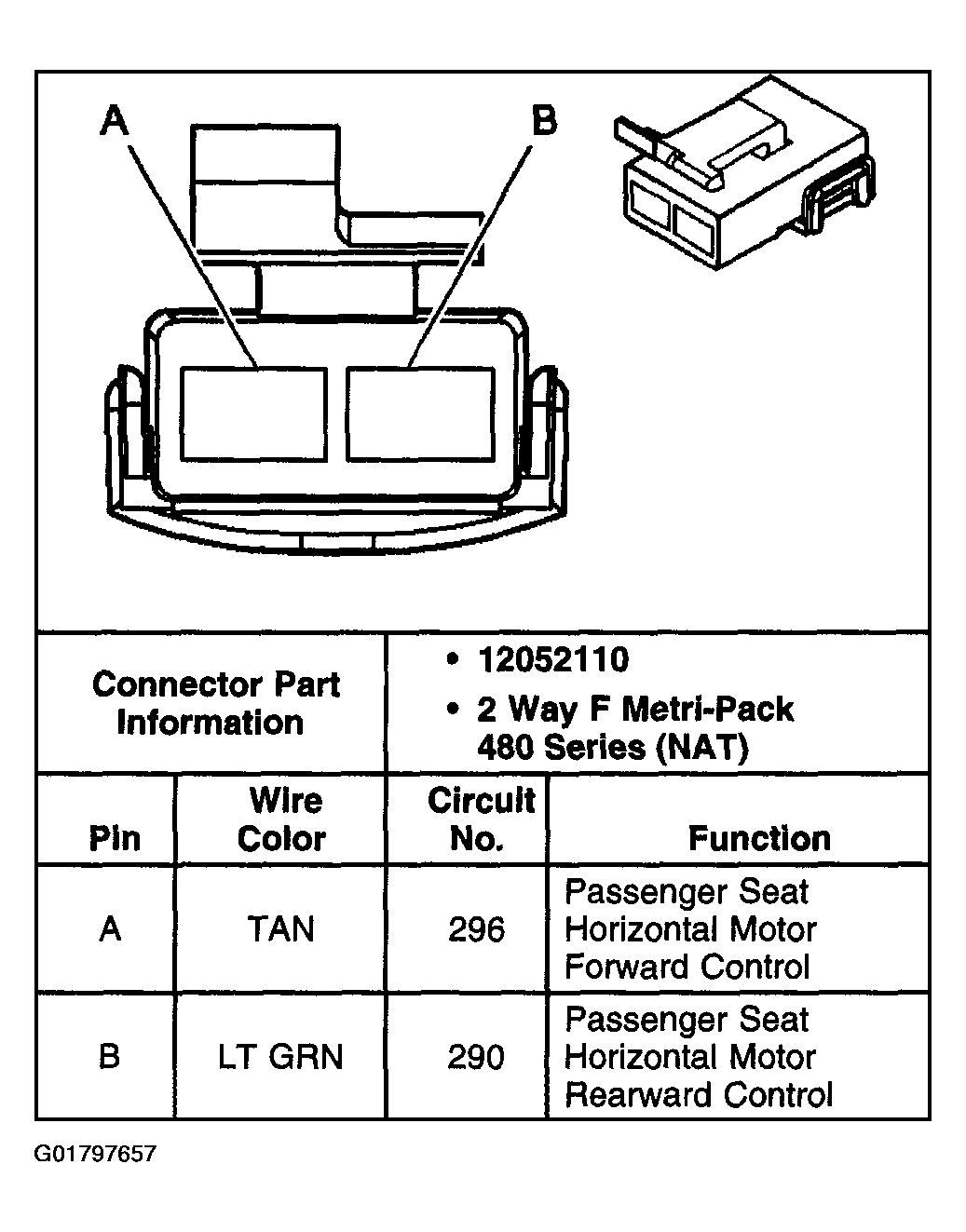

Fig 33: Seat Horizontal Motor - Front Passenger

G01797657

Courtesy of GENERAL MOTORS CORP.

Fig 34: Seat Horizontal Position Sensor - Driver

G01797658

Courtesy of GENERAL MOTORS CORP.

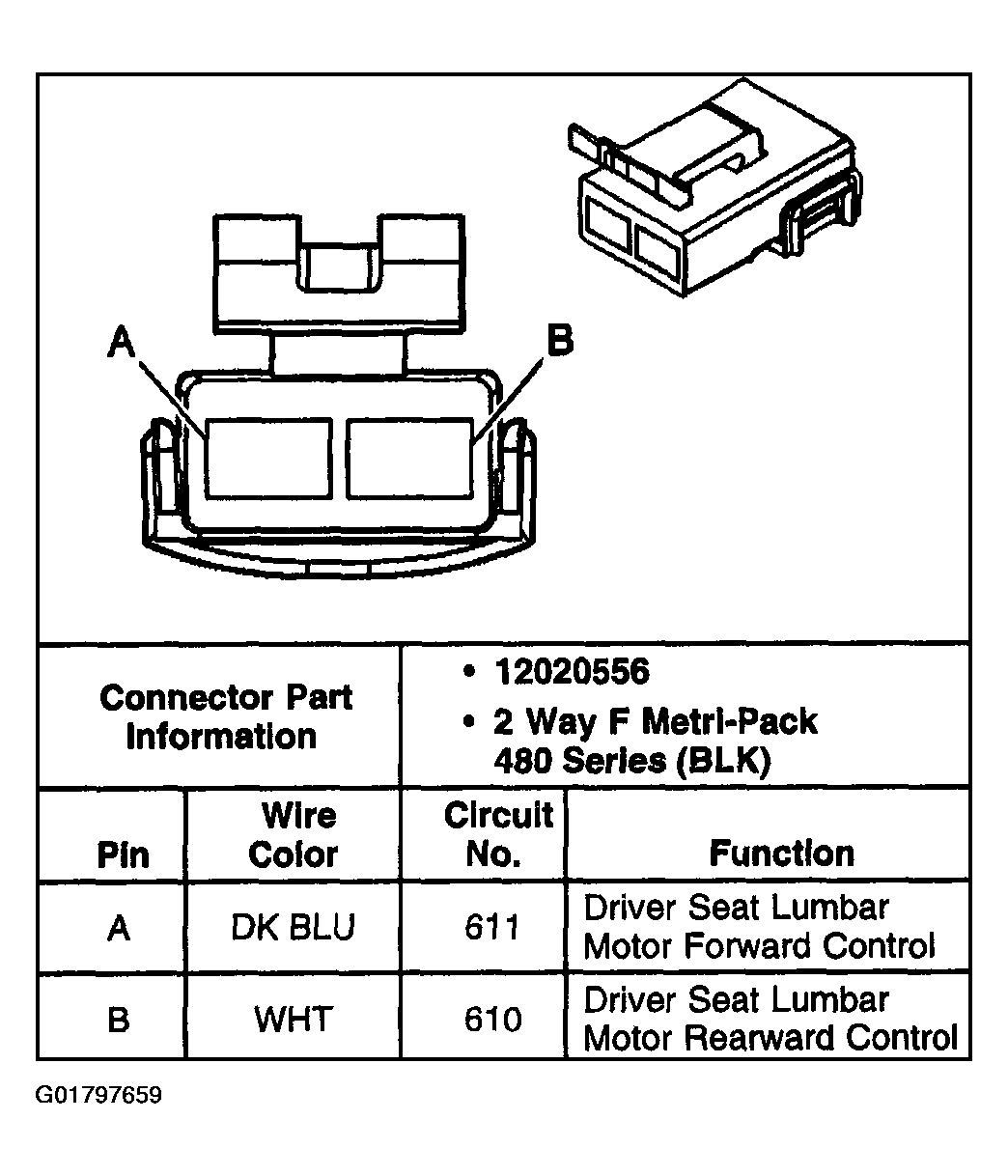

Fig 35: Seat Lumbar Horizontal Motor - Driver

G01797659

Courtesy of GENERAL MOTORS CORP.

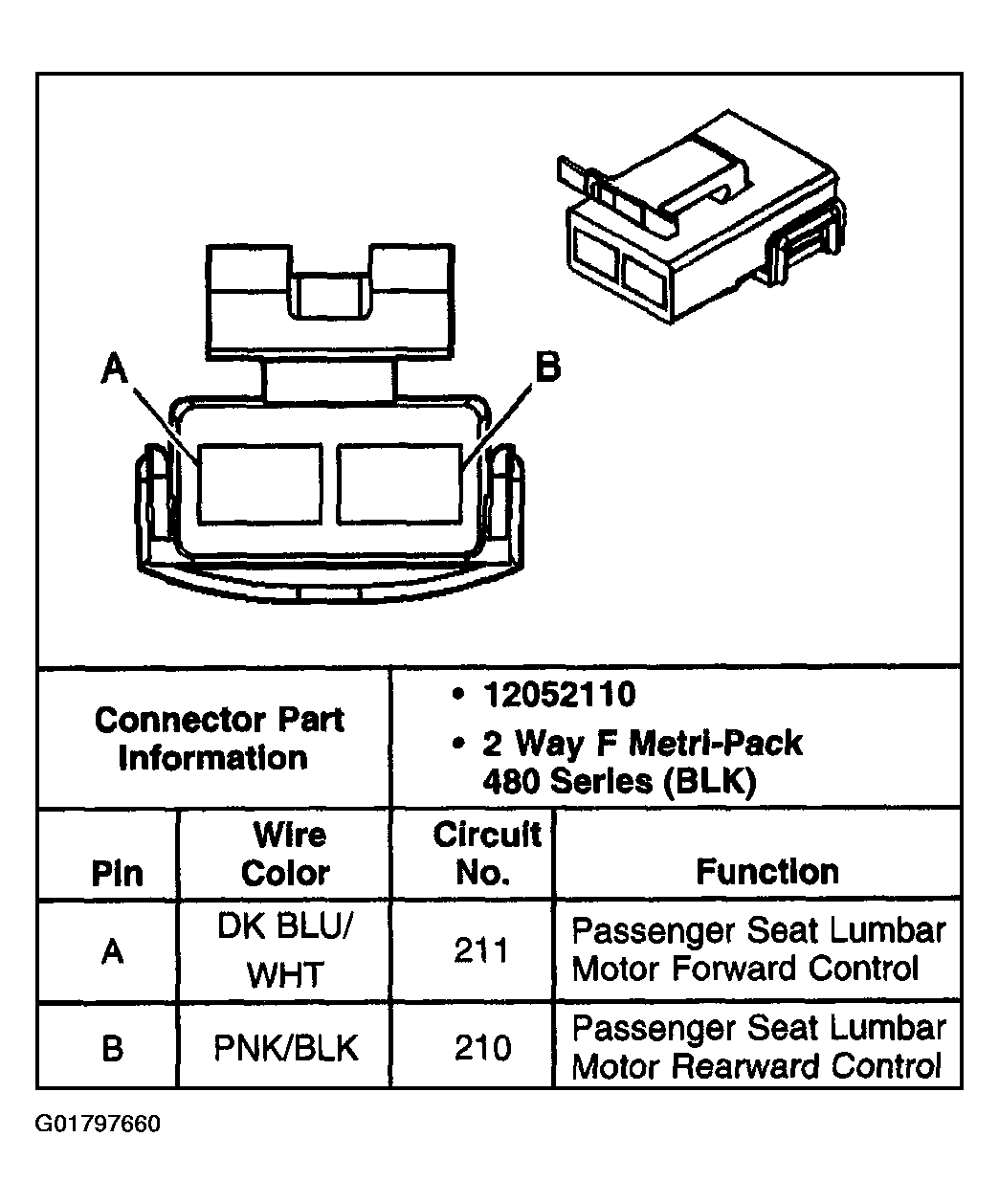

Fig 36: Seat Lumbar Horizontal Motor - Front Passenger

G01797660

Courtesy of GENERAL MOTORS CORP.

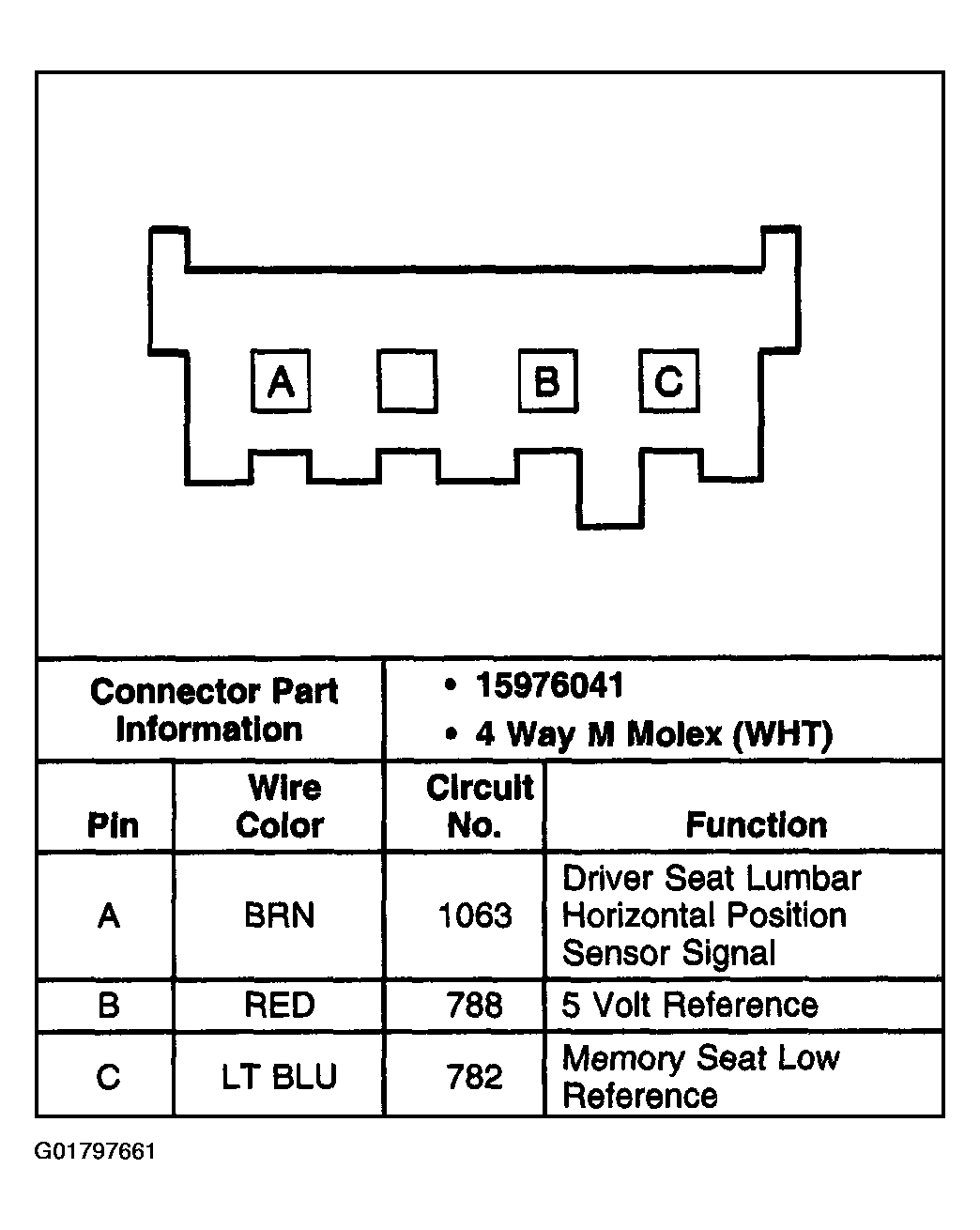

Fig 37: Seat Lumbar Horizontal Position Sensor - Driver

G01797661

Courtesy of GENERAL MOTORS CORP.

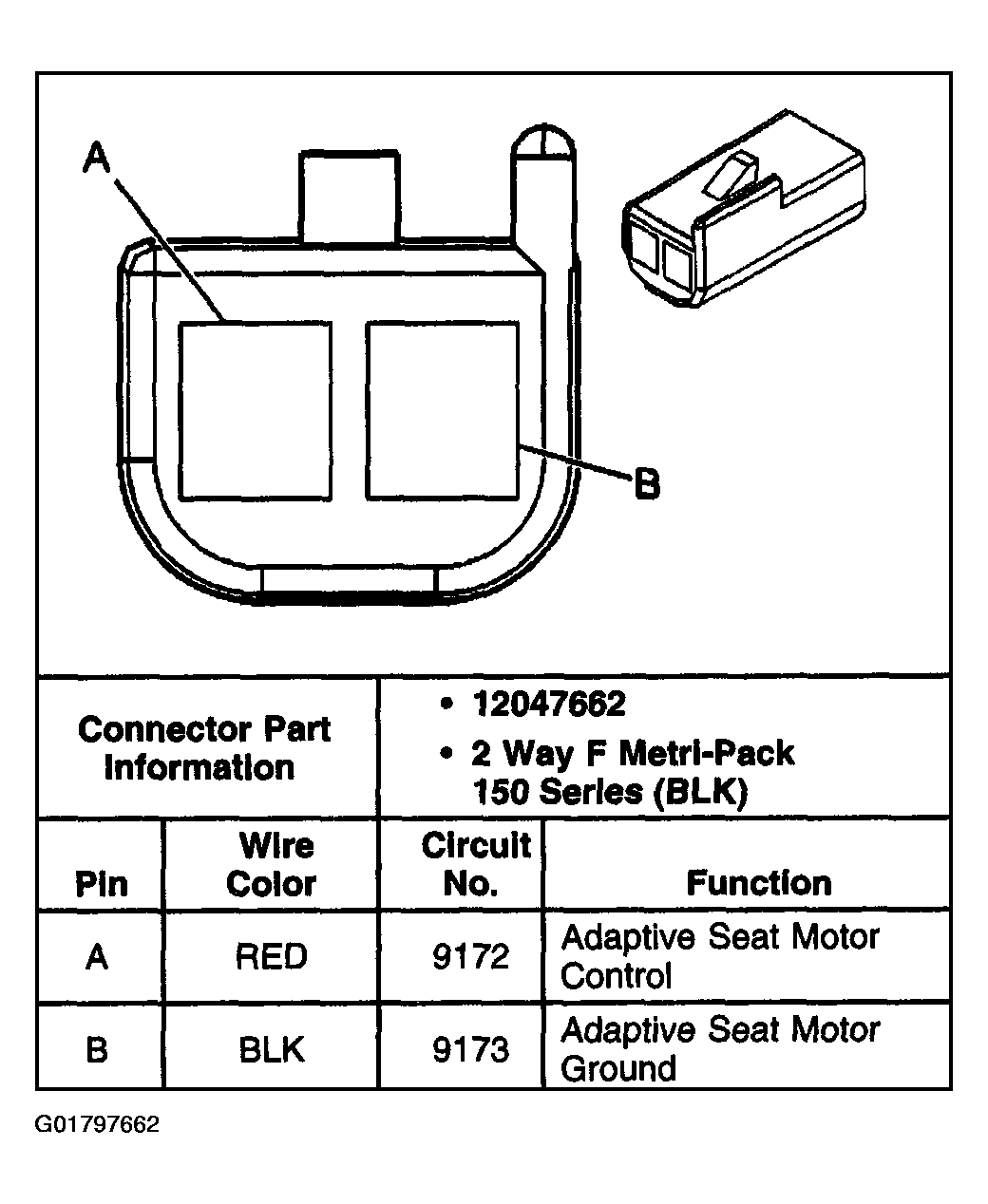

Fig 38: Seat Lumbar Motor - Driver

G01797662

Courtesy of GENERAL MOTORS CORP.

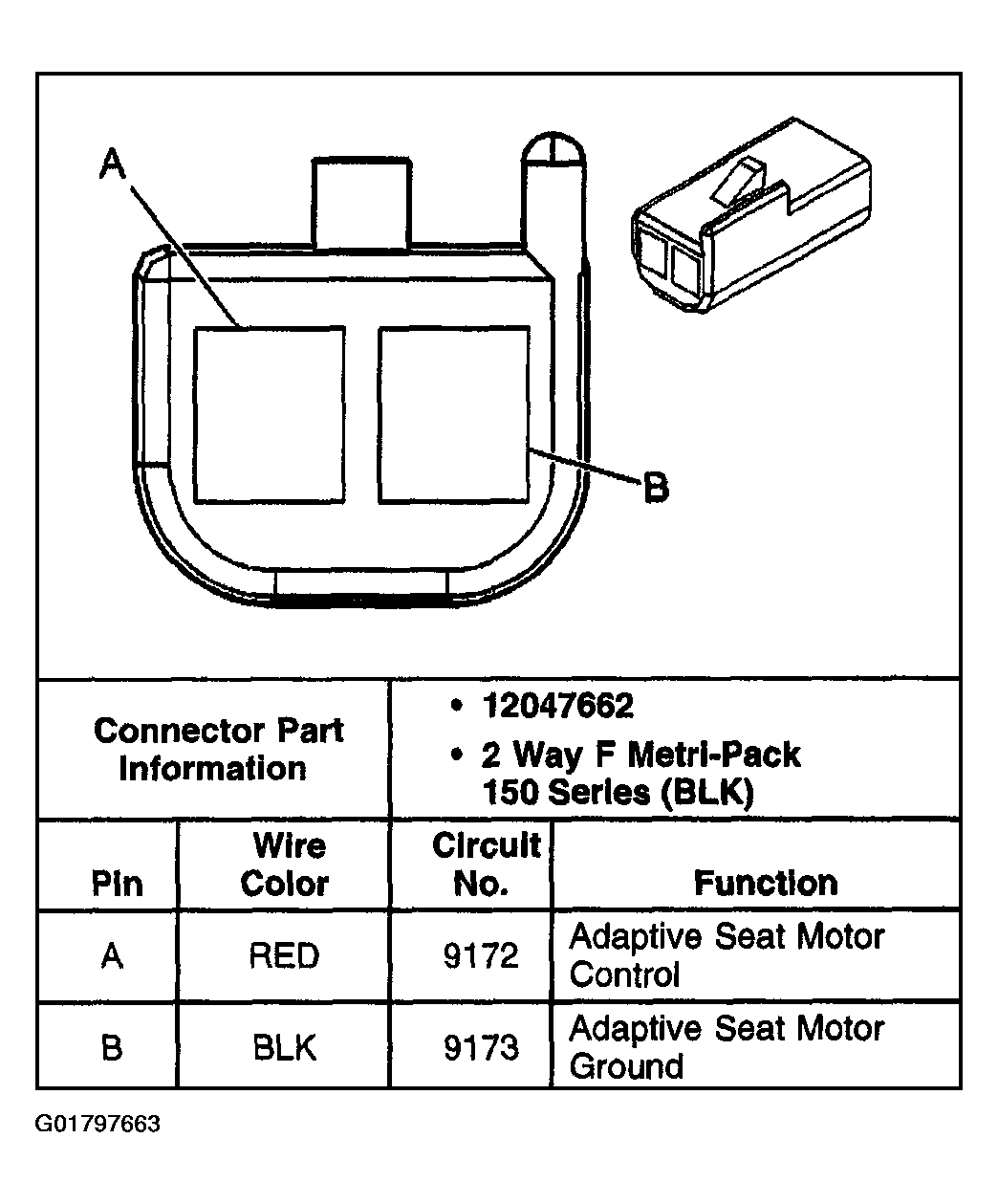

Fig 39: Seat Lumbar Motor - Front Passenger

G01797663

Courtesy of GENERAL MOTORS CORP.

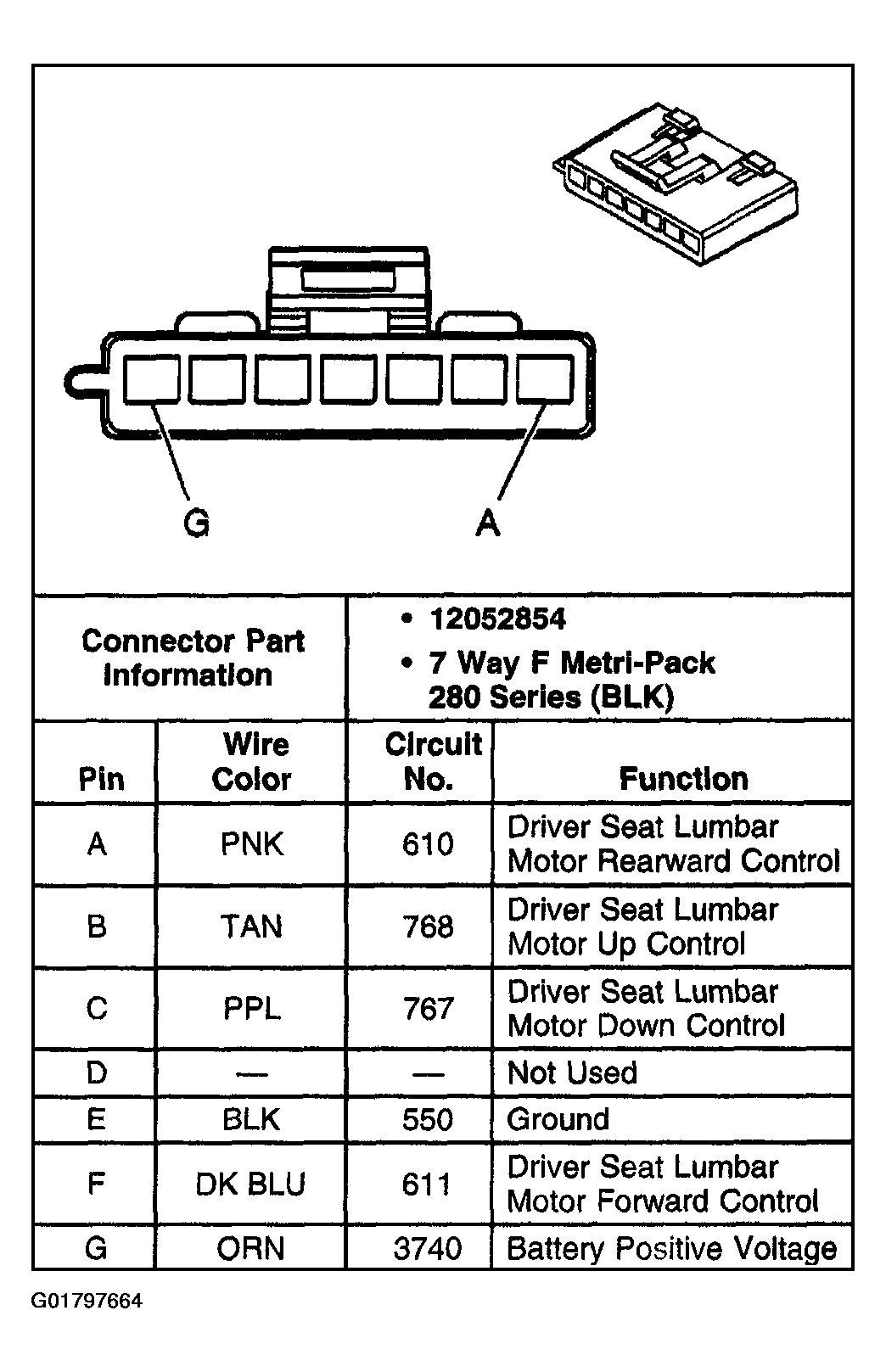

Fig 40: Seat Lumbar Switch - Driver (AL2)

G01797664

Courtesy of GENERAL MOTORS CORP.

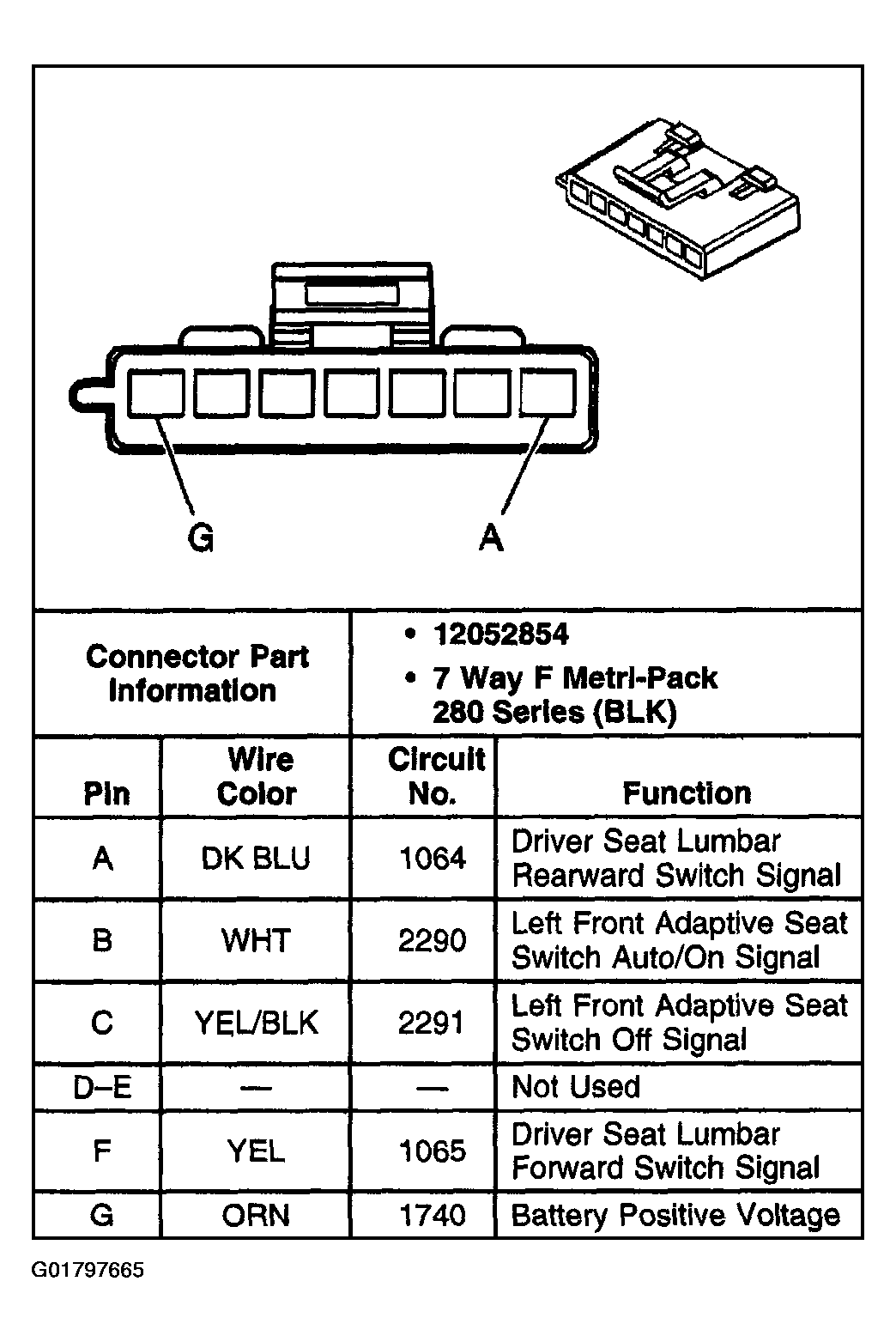

Fig 41: Seat Lumbar Switch - Driver (A45)

G01797665

Courtesy of GENERAL MOTORS CORP.

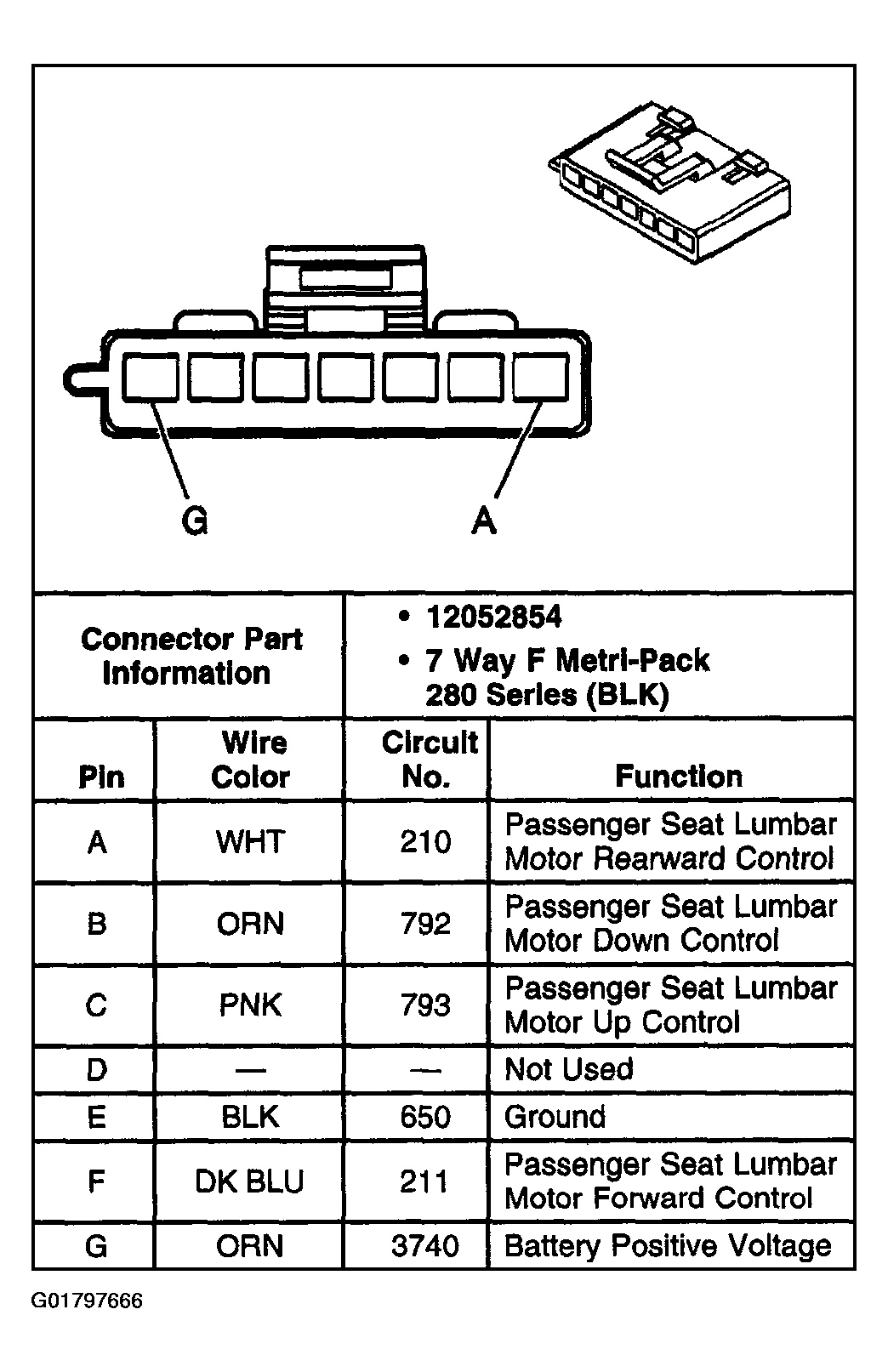

Fig 42: Seat Lumbar Switch - Front Passenger (AL2)

G01797666

Courtesy of GENERAL MOTORS CORP.

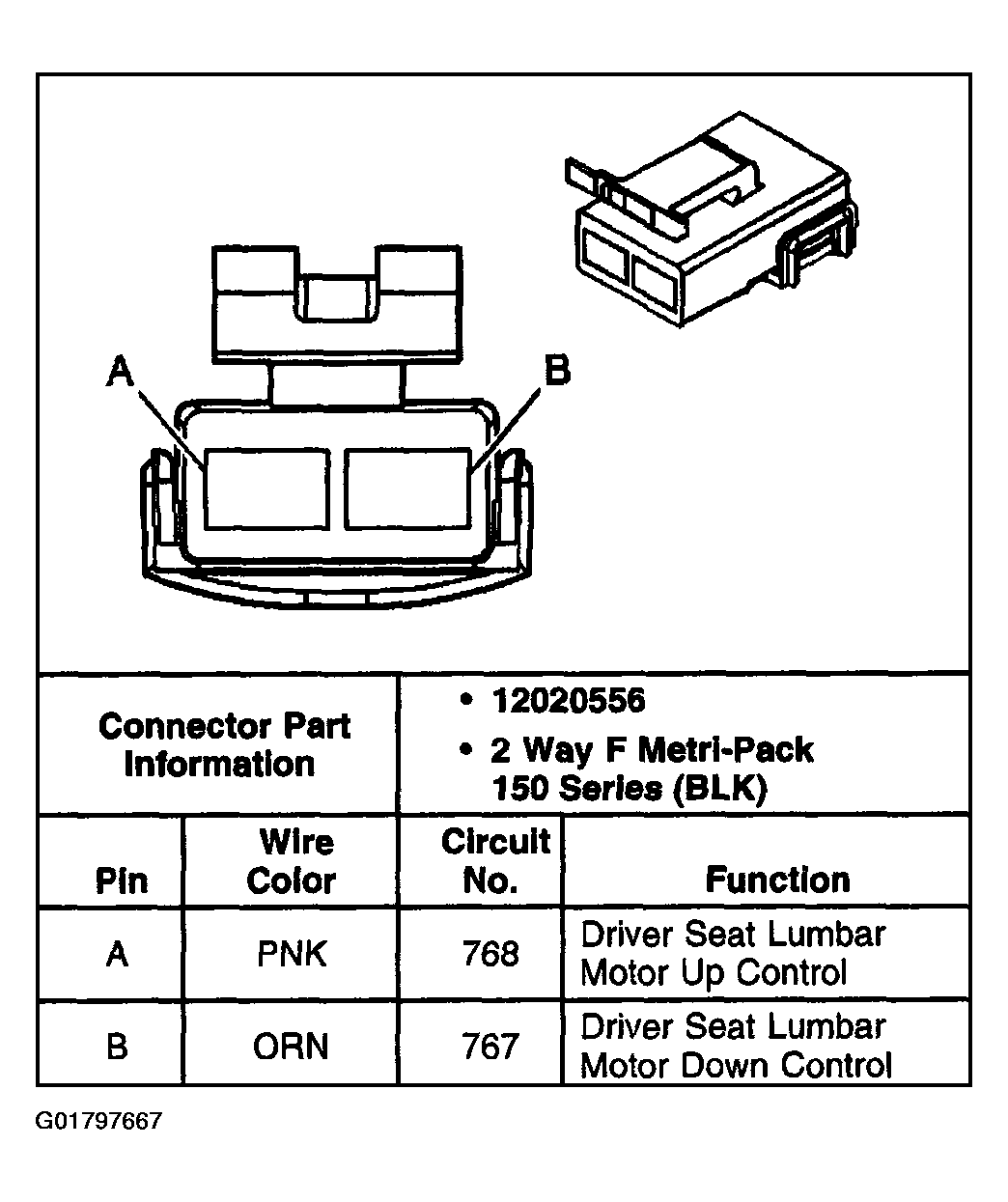

Fig 43: Seat Lumbar Vertical Motor - Driver

G01797667

Courtesy of GENERAL MOTORS CORP.

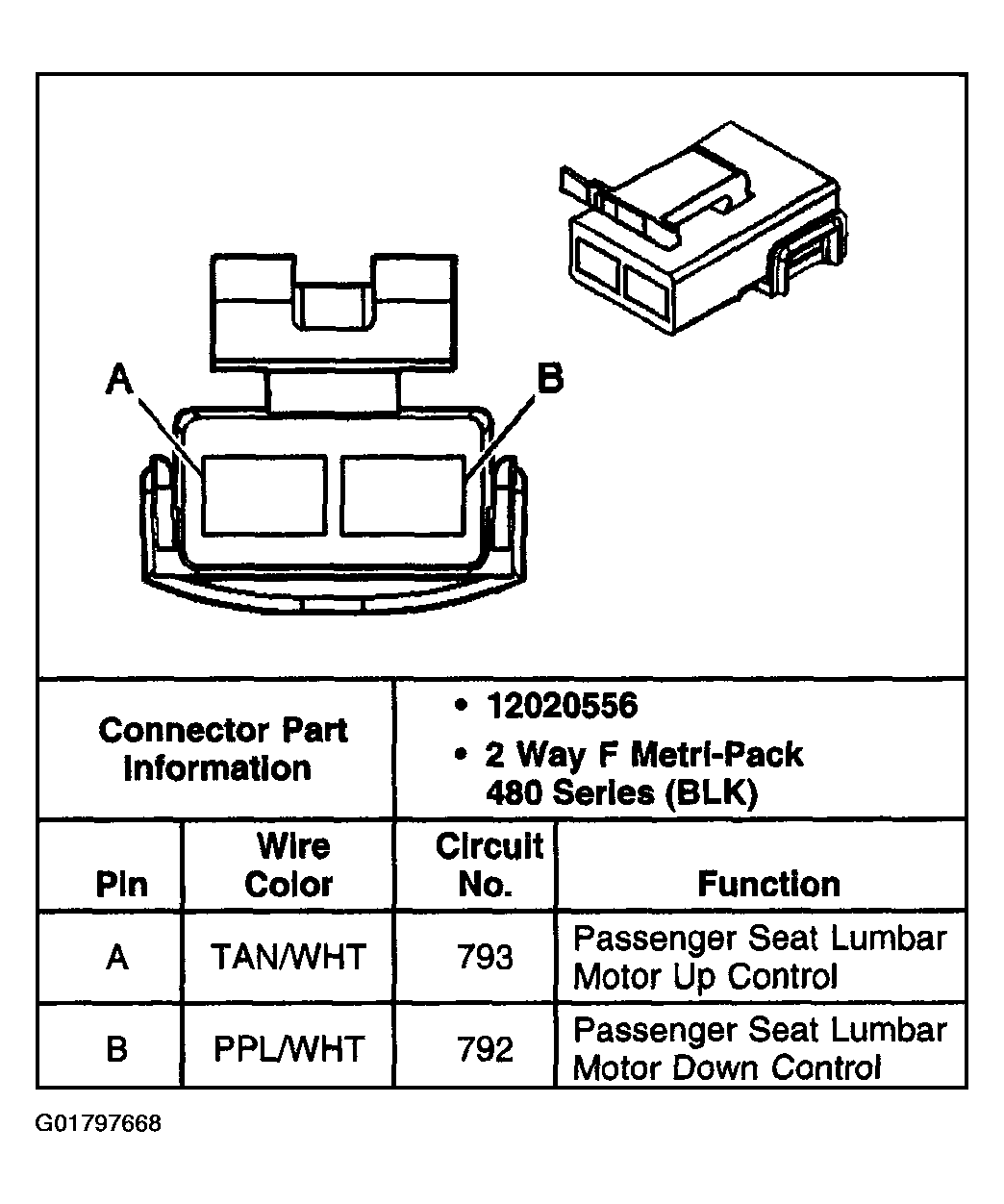

Fig 44: Seat Lumbar Vertical Motor - Front Passenger

G01797668

Courtesy of GENERAL MOTORS CORP.

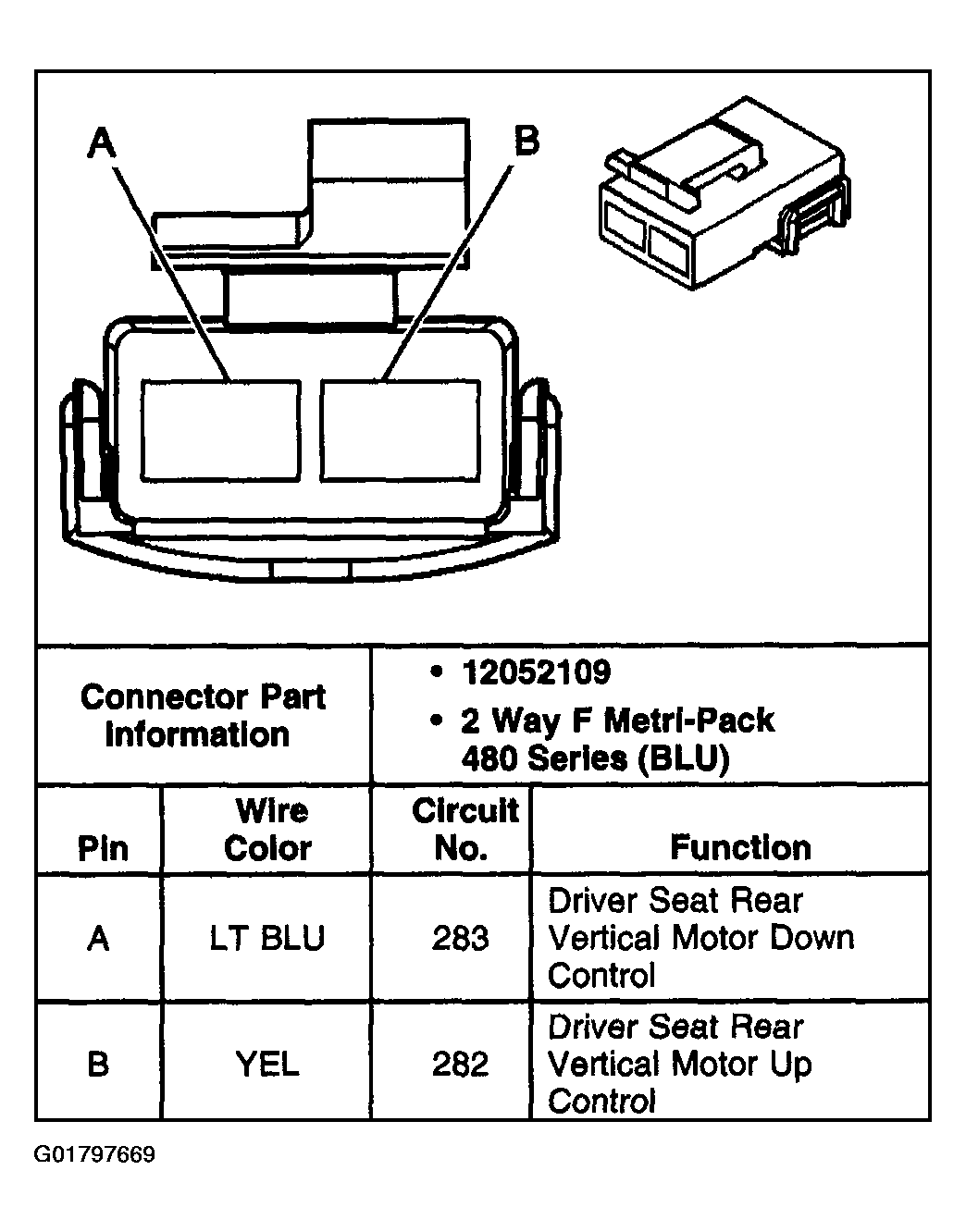

Fig 45: Seat Rear Vertical Motor - Driver

G01797669

Courtesy of GENERAL MOTORS CORP.

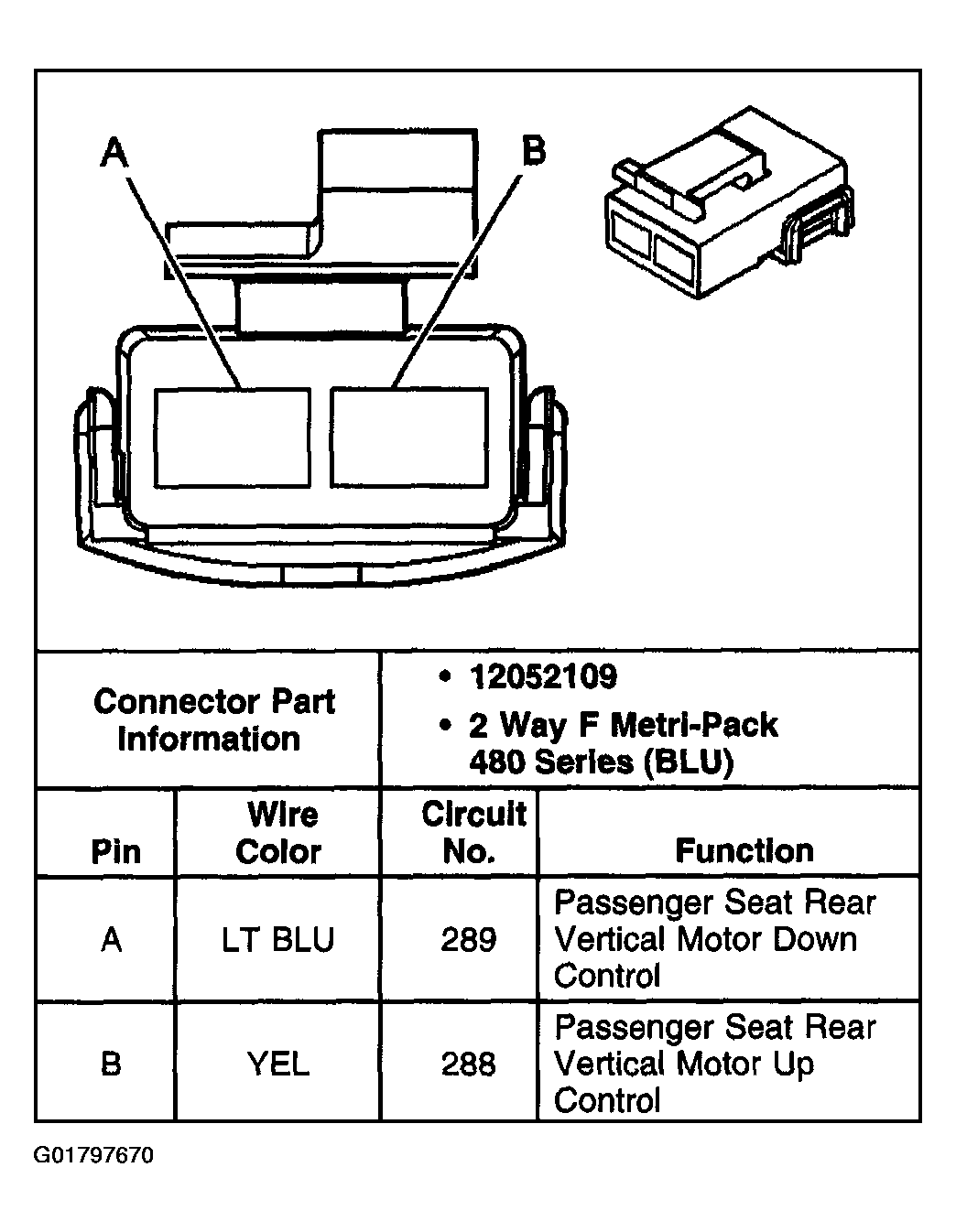

Fig 46: Seat Rear Vertical Motor - Front Passenger

G01797670

Courtesy of GENERAL MOTORS CORP.

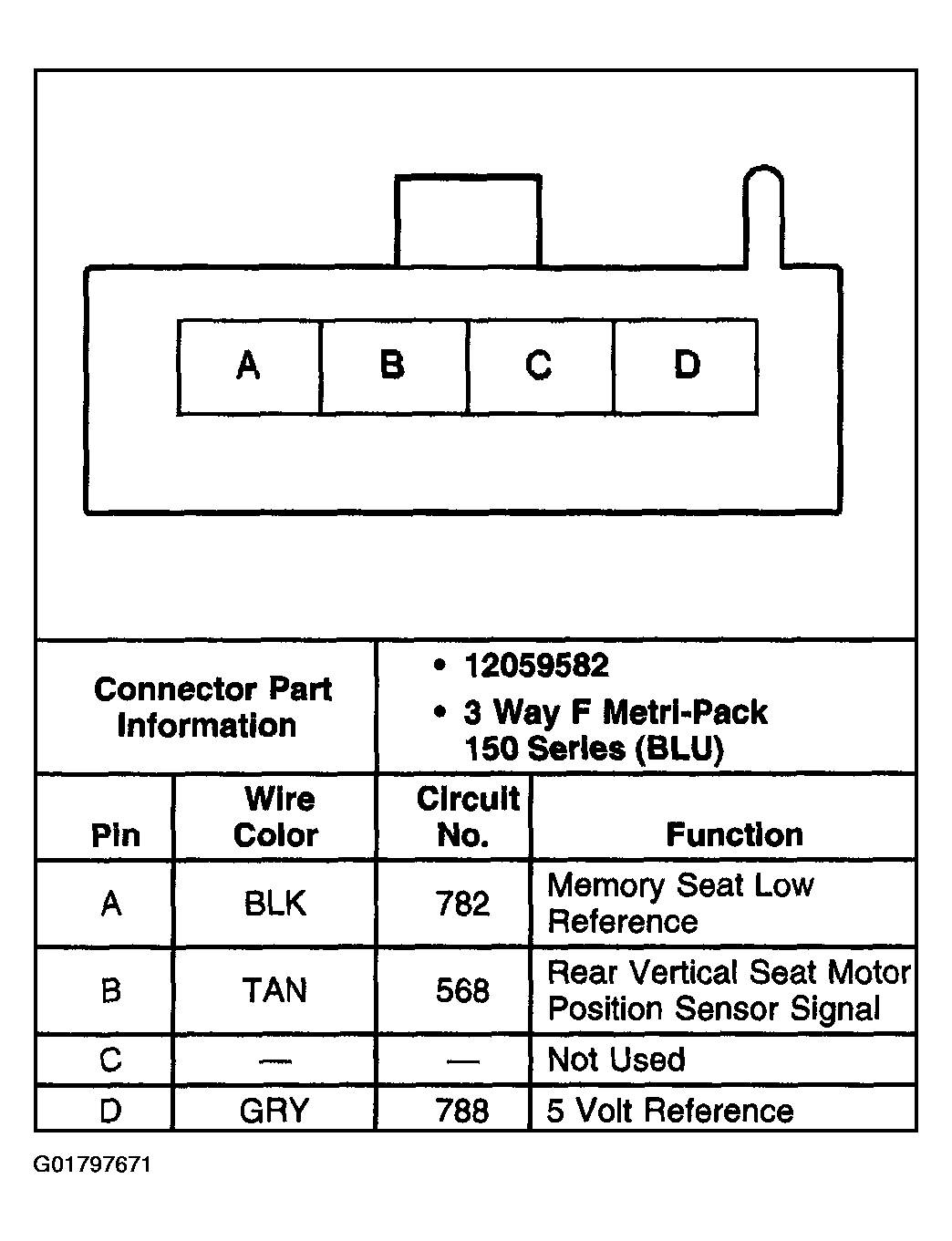

Fig 47: Seat Rear Vertical Position Sensor - Driver

G01797671

Courtesy of GENERAL MOTORS CORP.

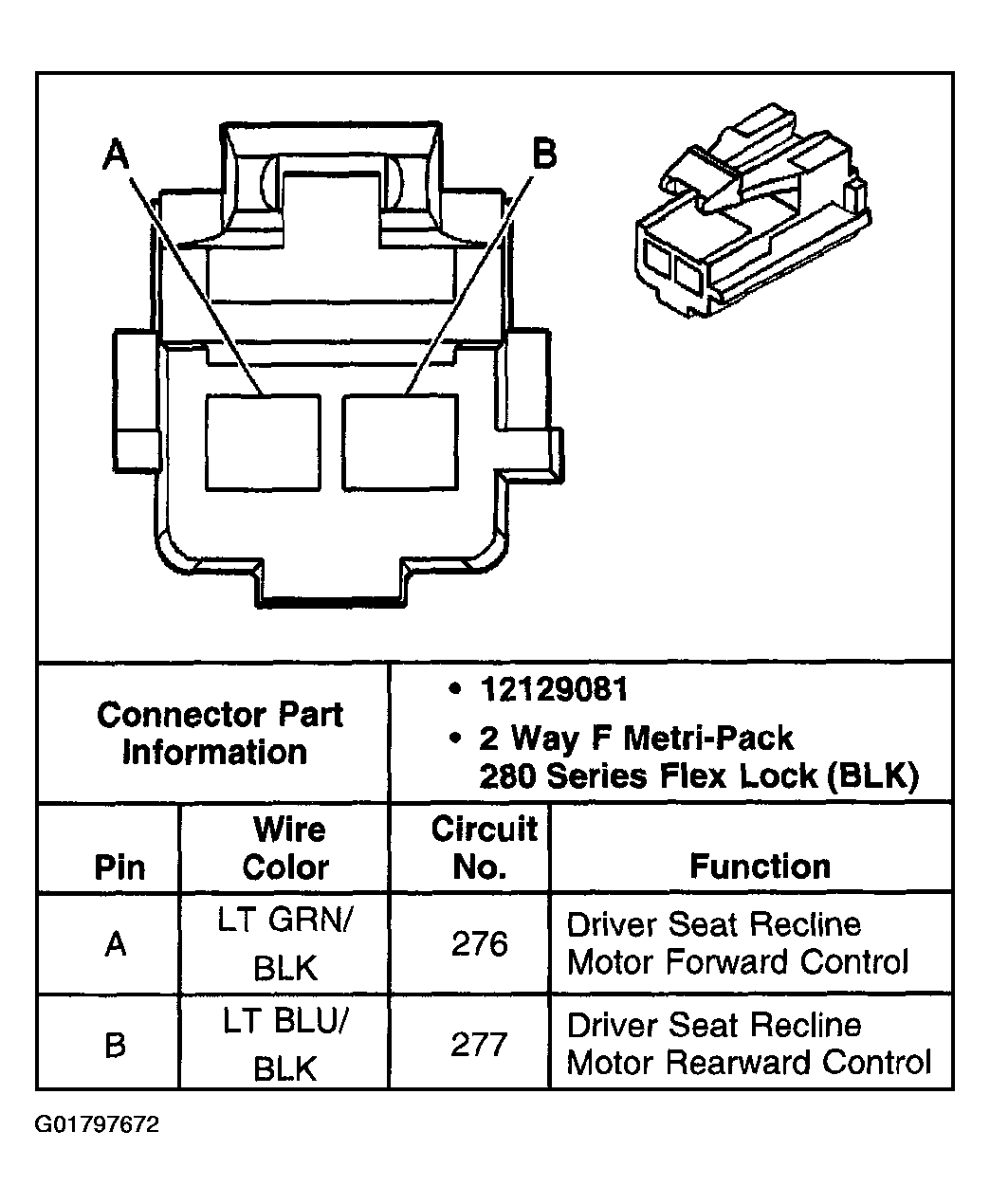

Fig 48: Seat Recline Motor - Driver (A45)

G01797672

Courtesy of GENERAL MOTORS CORP.

Fig 49: Seat Recline Motor - Driver (Without A45)

G01797673

Courtesy of GENERAL MOTORS CORP.

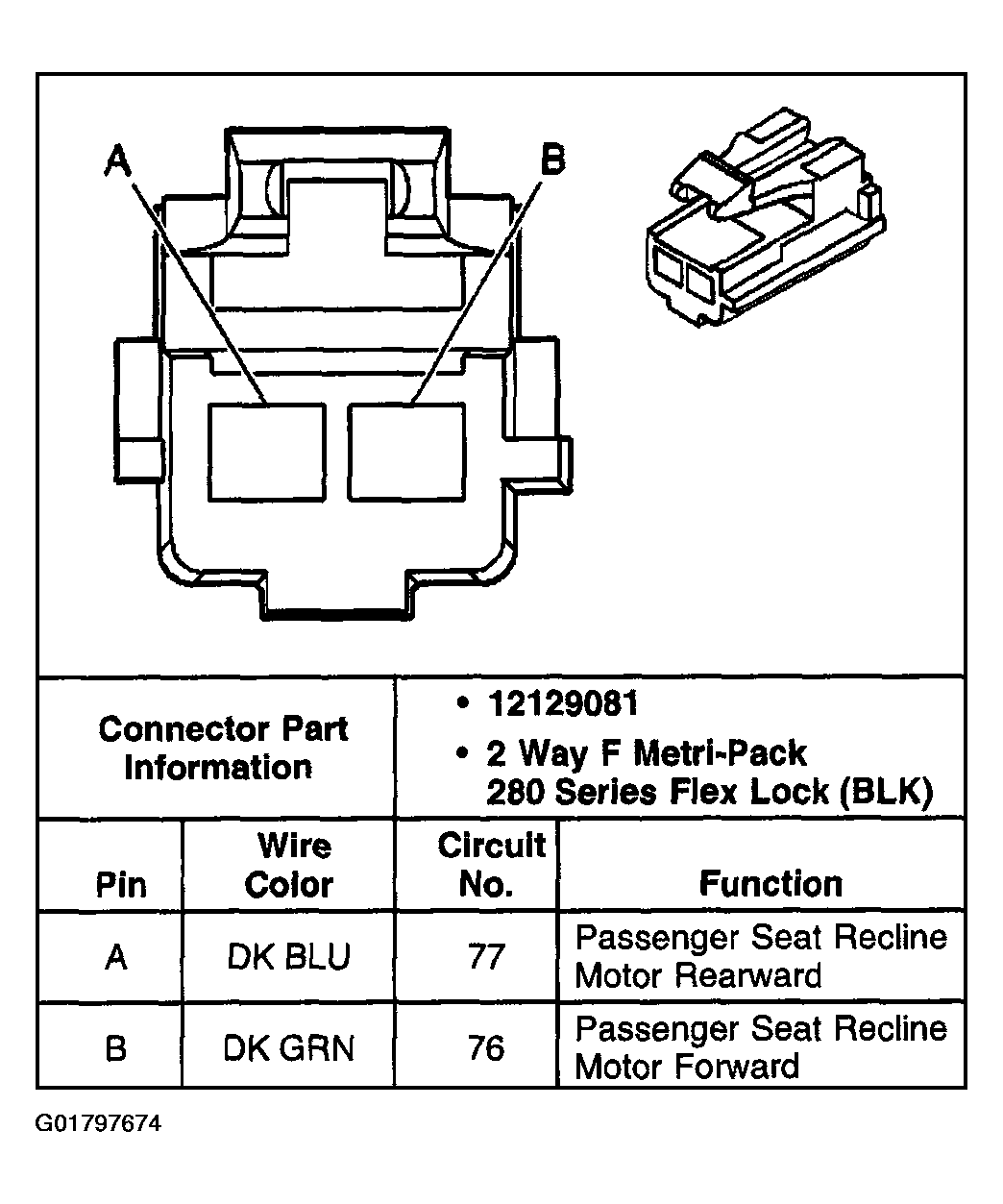

Fig 50: Seat Recline Motor - Front Passenger

G01797674

Courtesy of GENERAL MOTORS CORP.

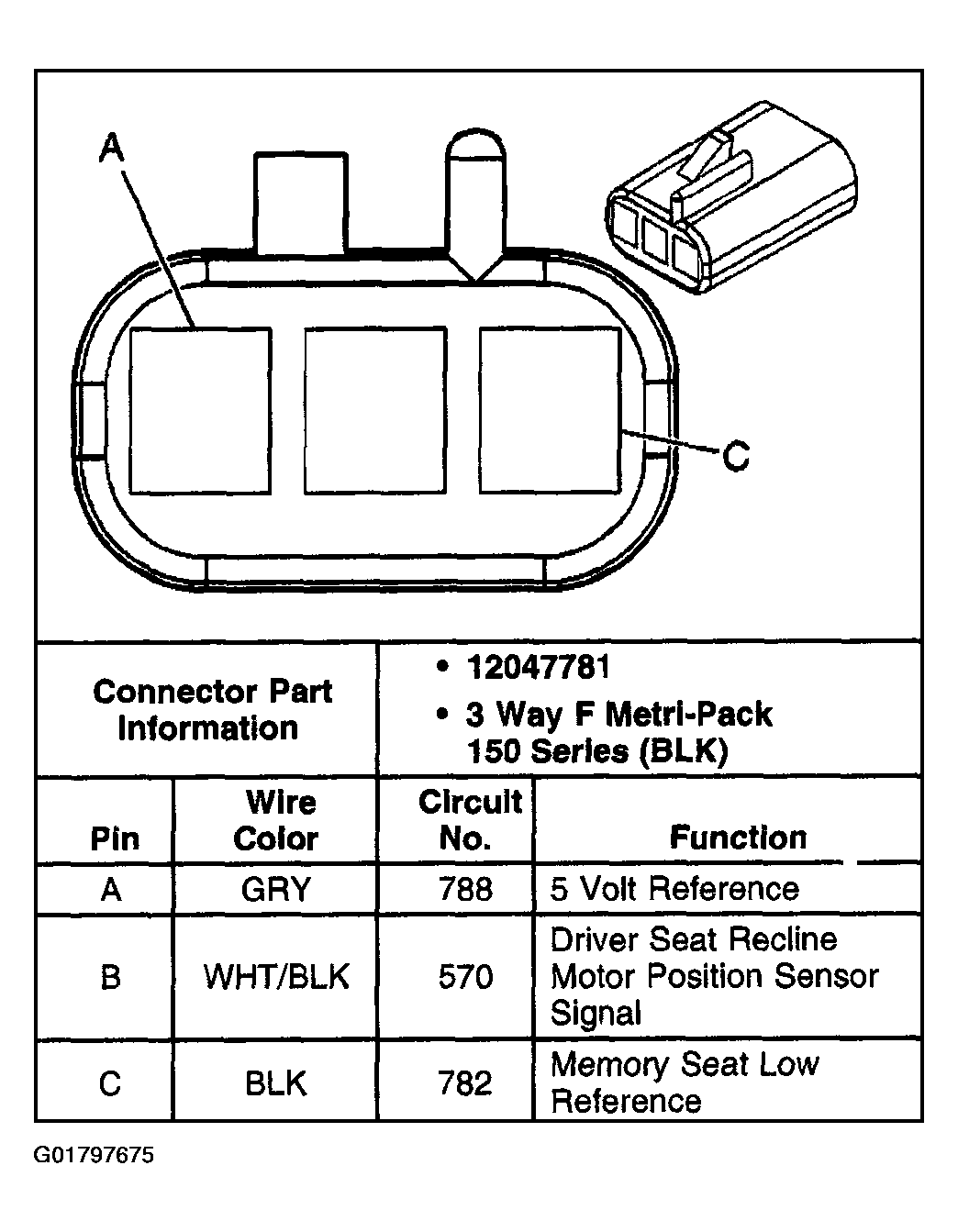

Fig 51: Seat Recline Position Sensor - Driver

G01797675

Courtesy of GENERAL MOTORS CORP.
