Installation Procedure

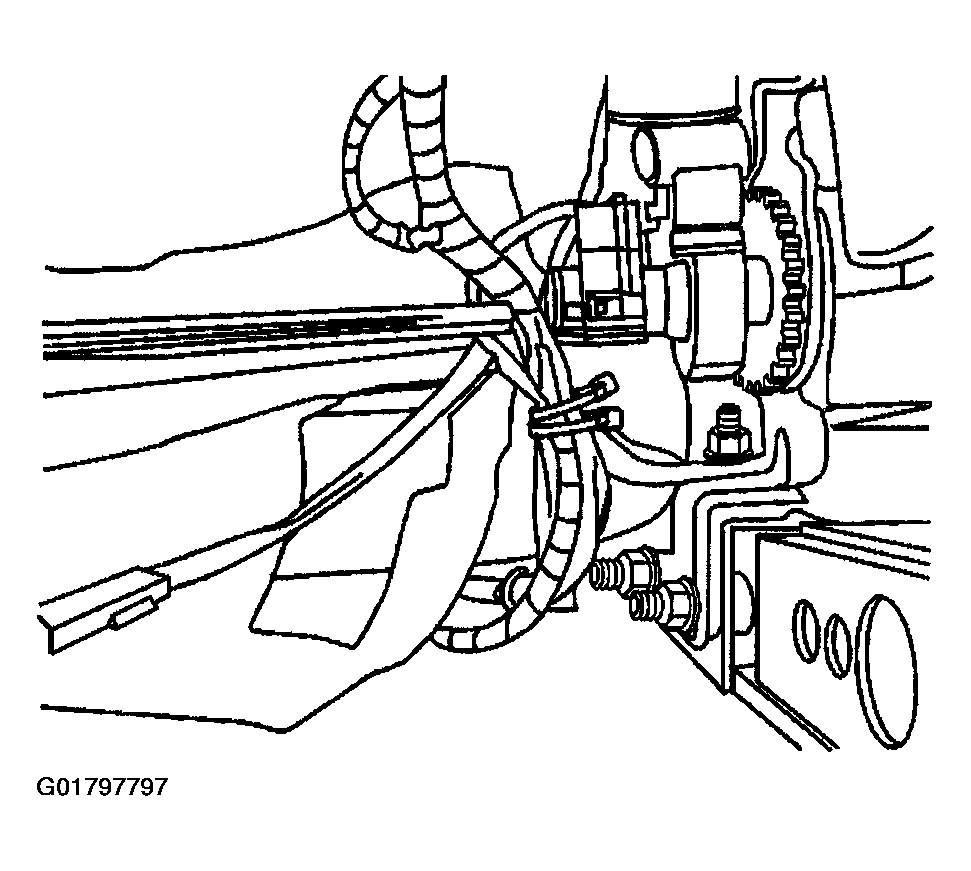

    Fig 1: Recliner Sensor
    G01797797Courtesy of GENERAL MOTORS CORP.
  1. Install the recliner sensor to the recliner motor. The recliner sensor snaps onto the recliner motor.
  2. Slide recliner shaft back through the recliner sensor and recliner motor.

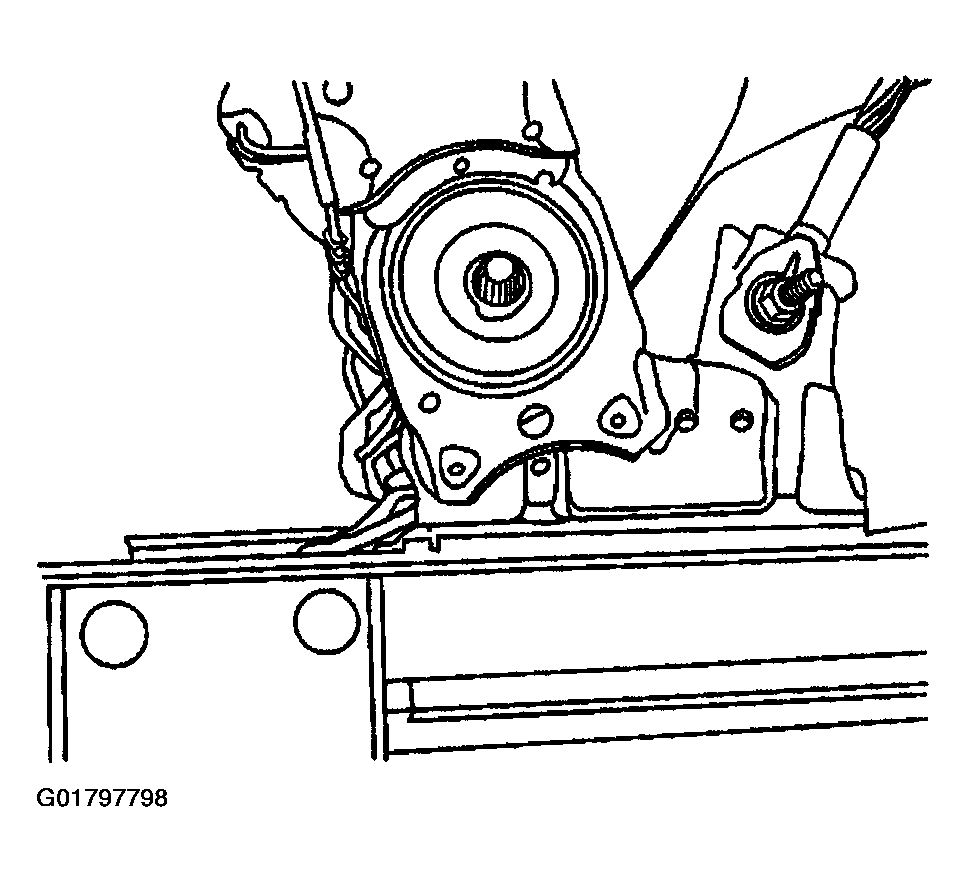

    3. Fig 2: Recliner Motor
    G01797798Courtesy of GENERAL MOTORS CORP.
  3. Install the retaining clip to the recliner shaft.
  4. Connect the recliner motor electrical connector.
  5. Install the seat back trim cover. Refer to Seat Back Cover and Pad Replacement - Front .
  6. Install the front bucket seat. Refer to Seat Replacement - Front Bucket .
  7. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
