Scan Tool Data List

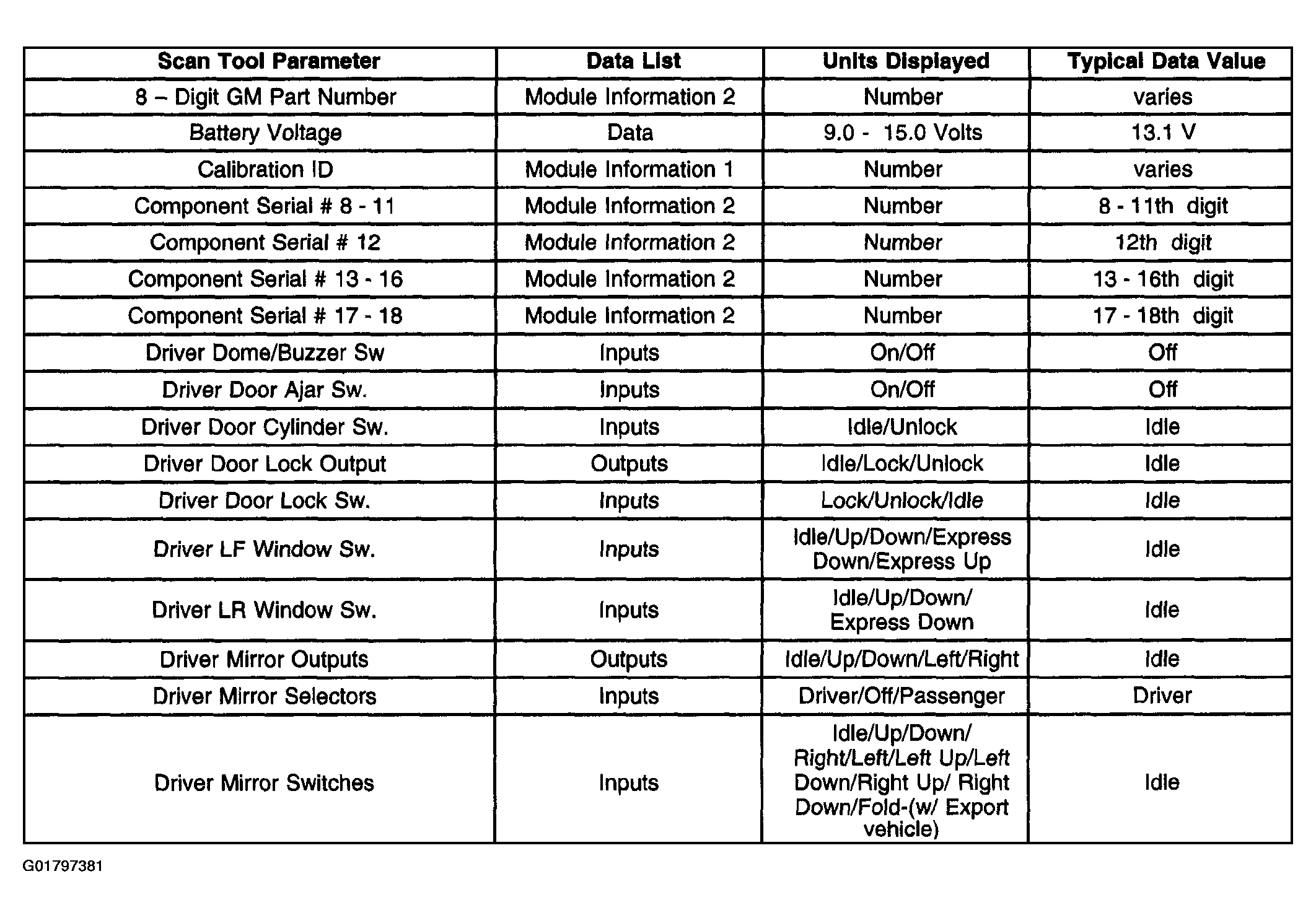

Fig 1: Driver Door Module (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

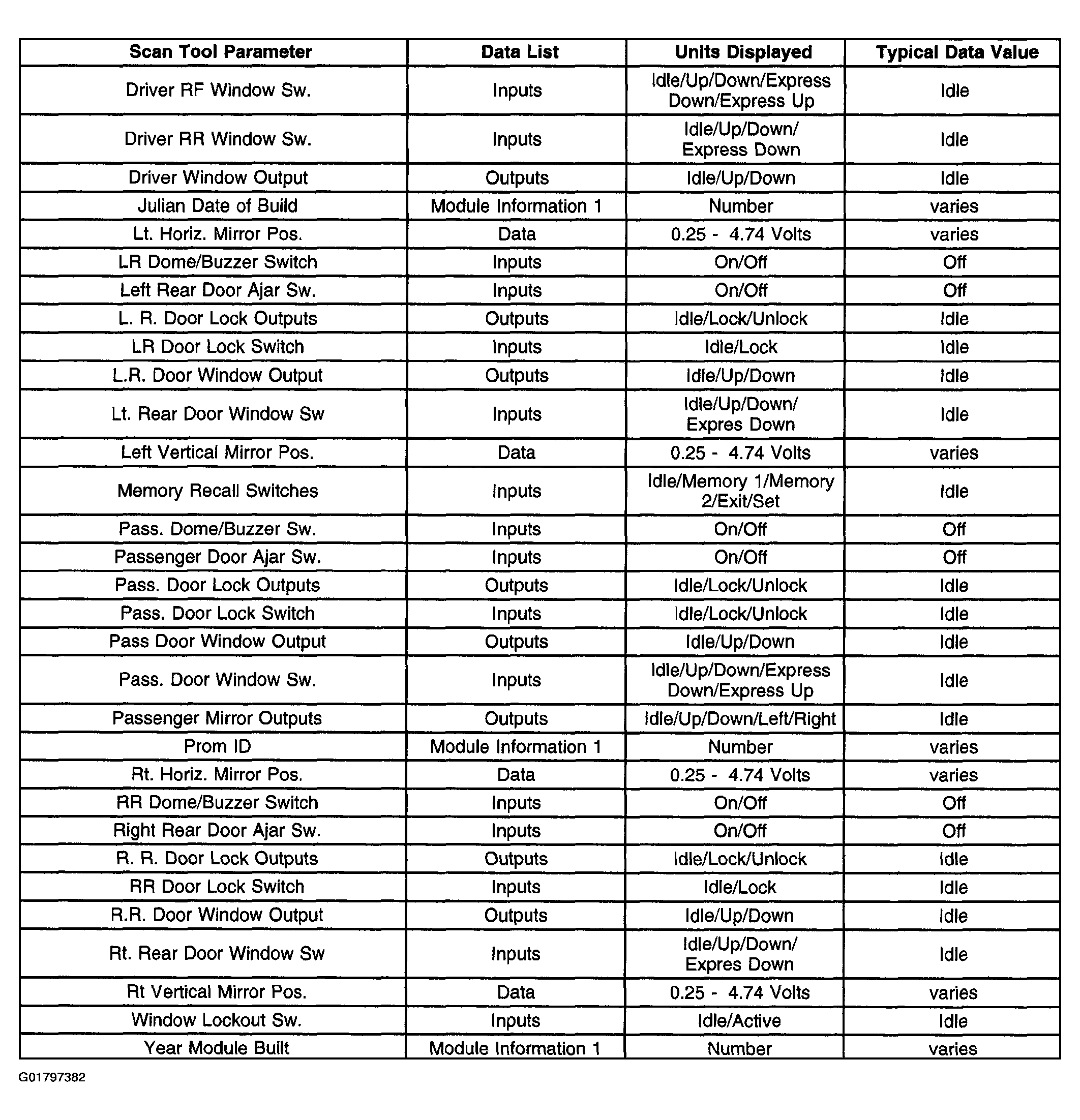

Fig 2: Driver Door Module (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

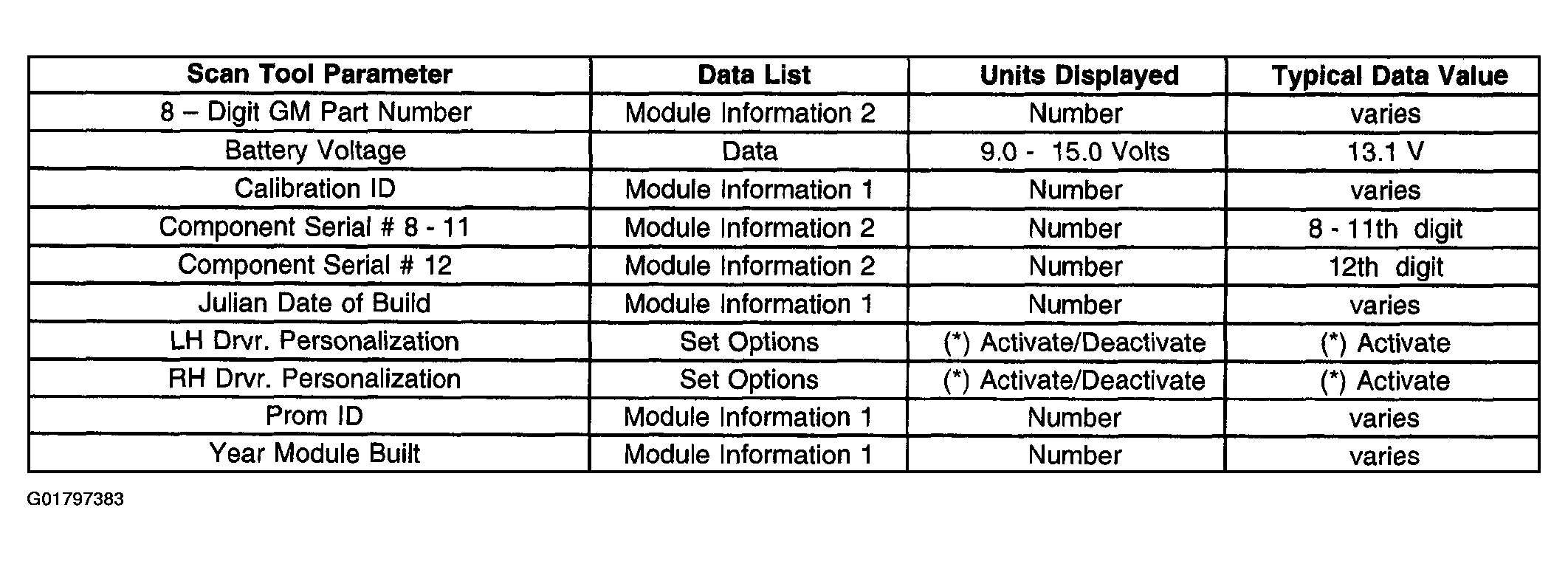

Fig 3: Dash Integration Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
