Power Window Schematics

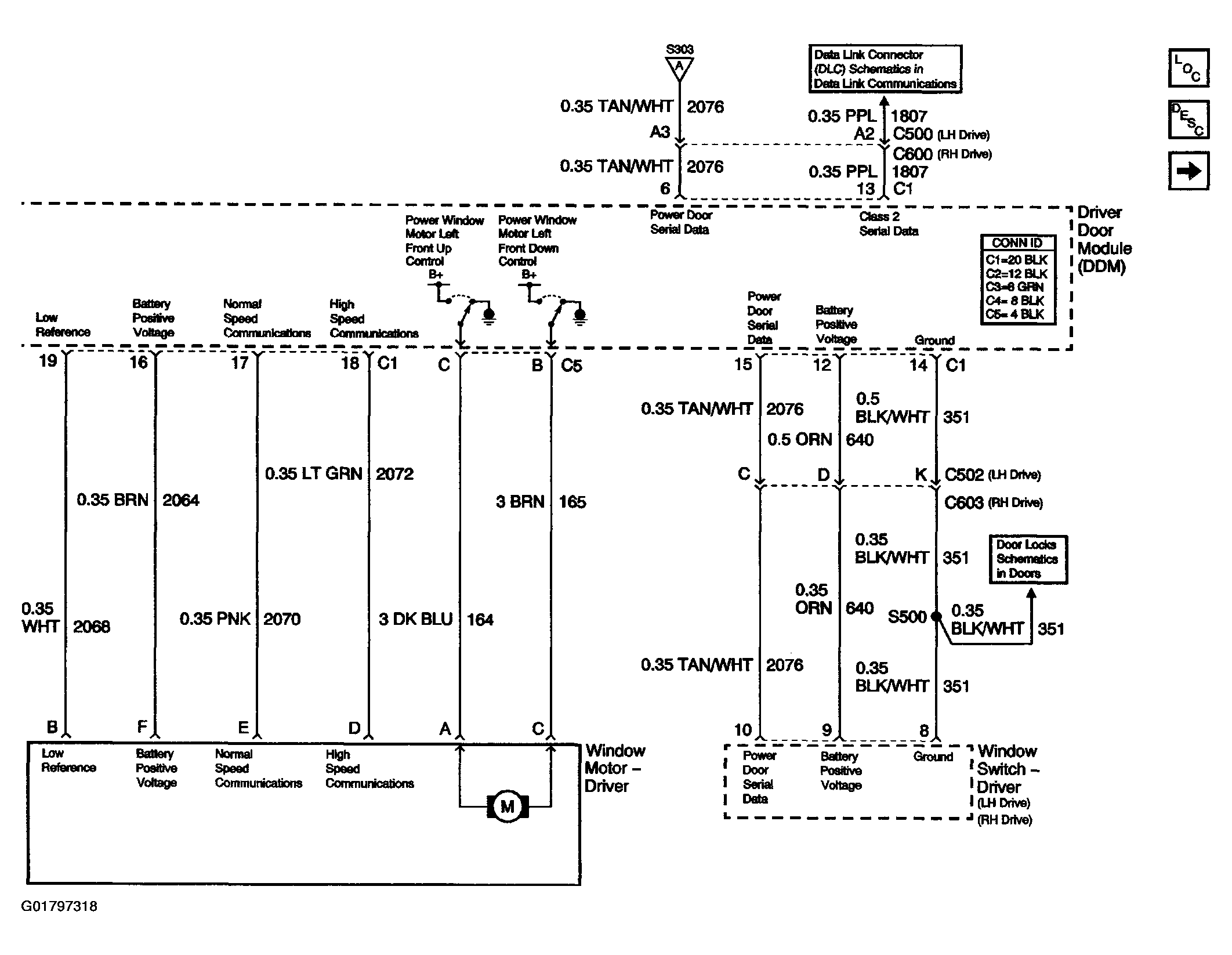

Fig 1: Power Window Schematics (Driver Power Windows)
G01797318Courtesy of GENERAL MOTORS CORP.

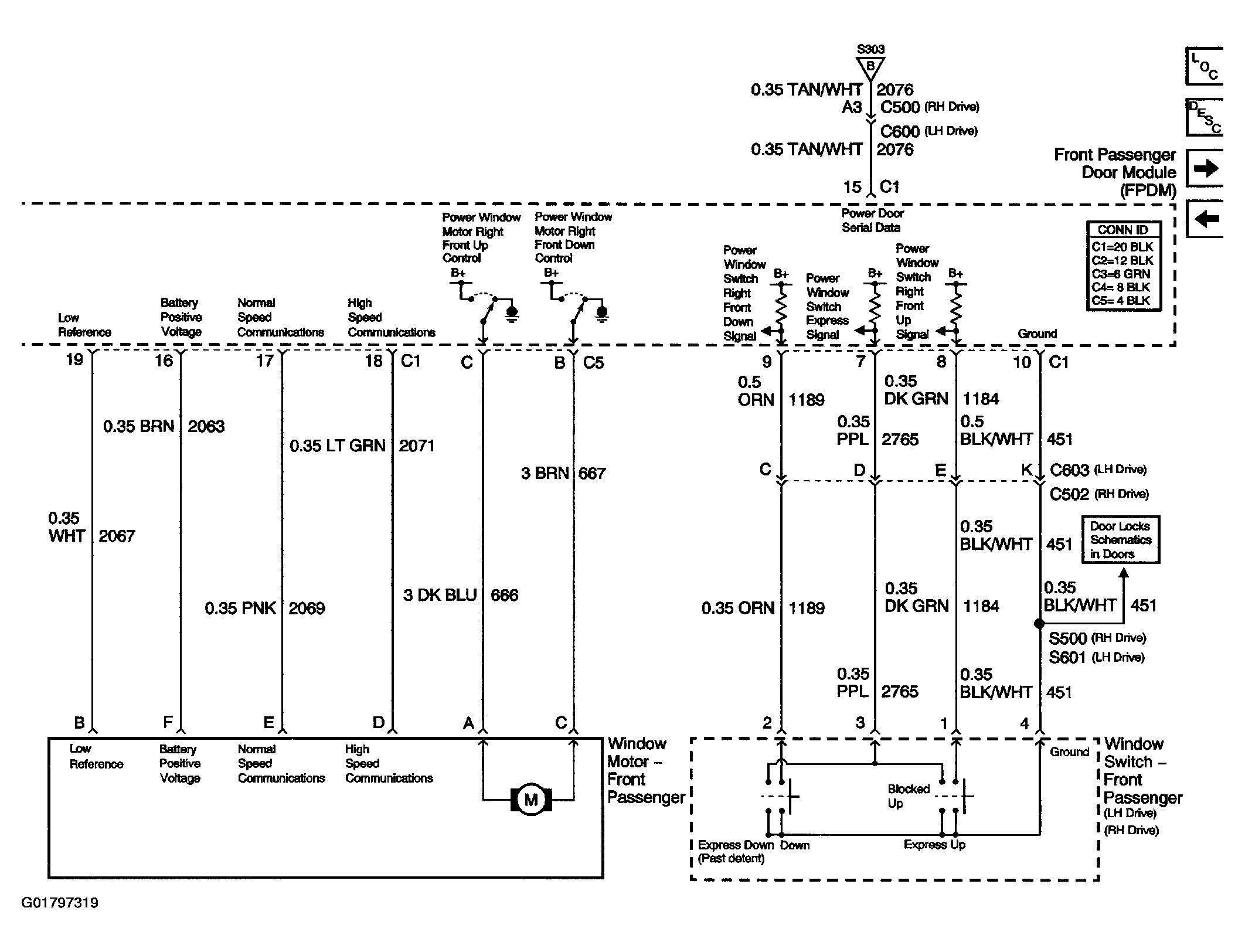

Fig 2: Power Window Schematics (Front Passenger Power Window)
G01797319Courtesy of GENERAL MOTORS CORP.

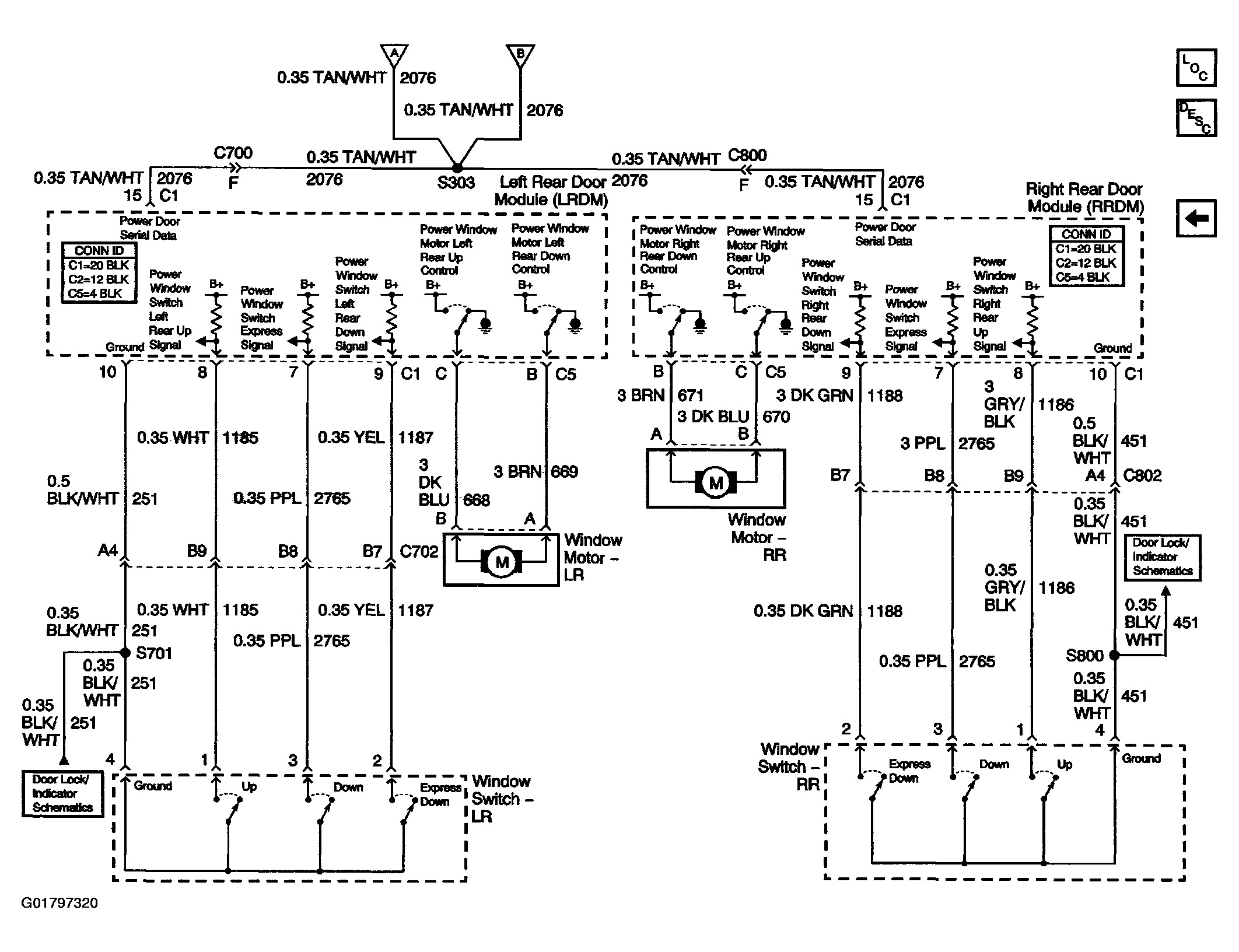

Fig 3: Power Window Schematics (Rear Power Windows)
G01797320Courtesy of GENERAL MOTORS CORP.
