Test Description

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Use the scan tool to check the normal state of the Traction Control indicator control.
  2. 3. Ensures that the instrument cluster can operate the Traction Control indicator.

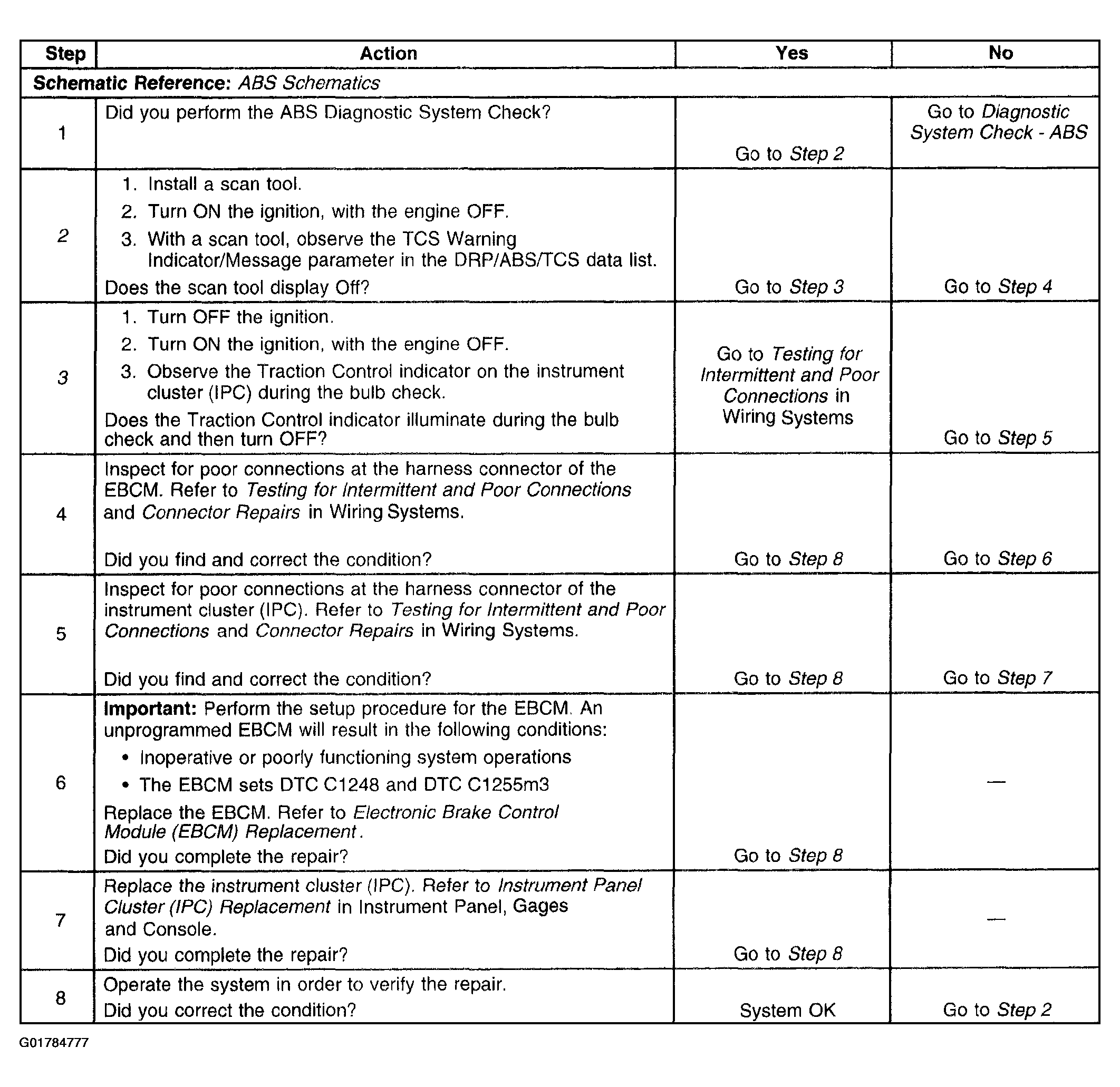

Fig 1: Identifying Traction Control Indicator Inoperative Diagnostic Table
G01784777Courtesy of GENERAL MOTORS CORP.
