Removal Procedure
- Turn OFF the ignition.
- Remove the rear compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .
- To access the mounting nuts, remove the rear trim panel shelf. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .

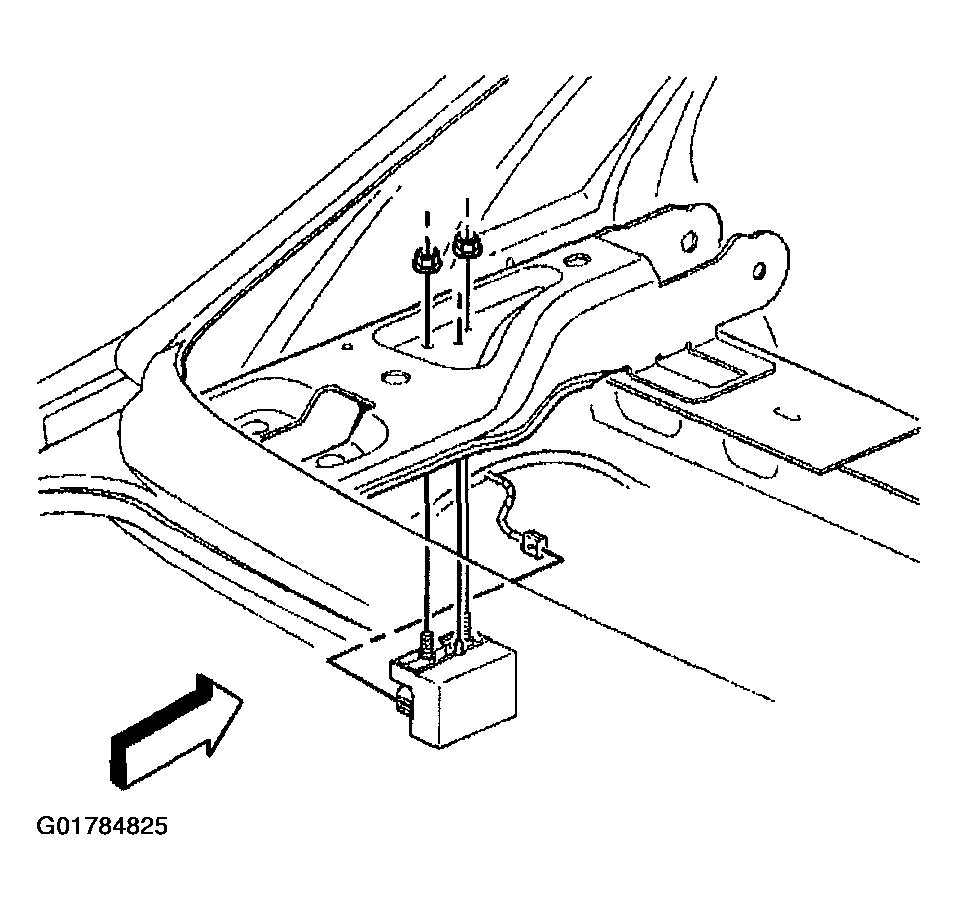

- Remove the 2 yaw rate sensor mounting nuts.
- Disconnect the yaw rate sensor electrical connector.
- Remove the yaw rate sensor from the mounting studs.
