Rear Compartment Key Cylinder Connector End View
Rear Compartment Key Cylinder Connector End View

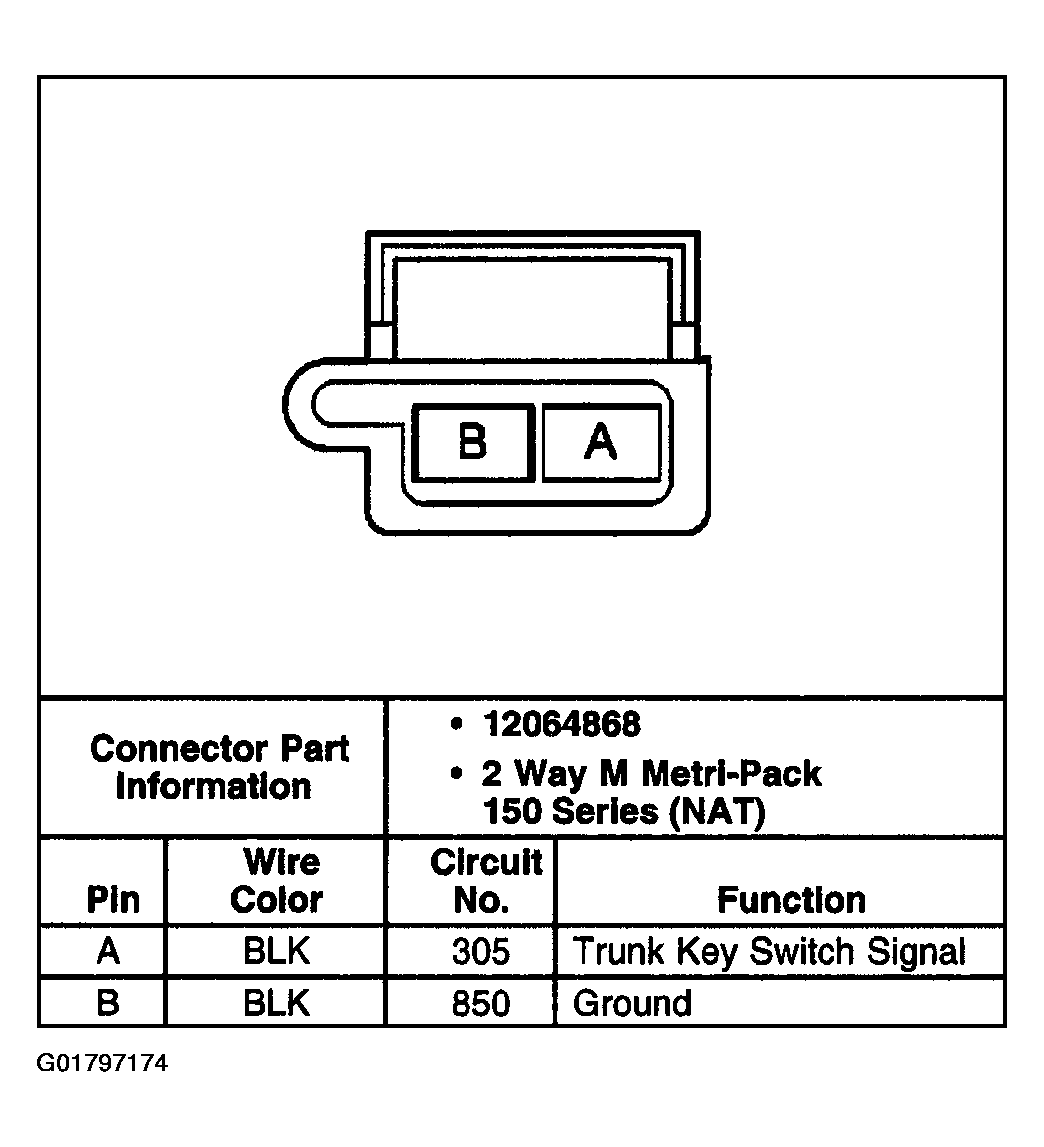

Fig 1: Rear Compartment Key Cylinder
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
