Suspension Position Sensor Connector End View - LF
Suspension Position Sensor Connector End View - LF

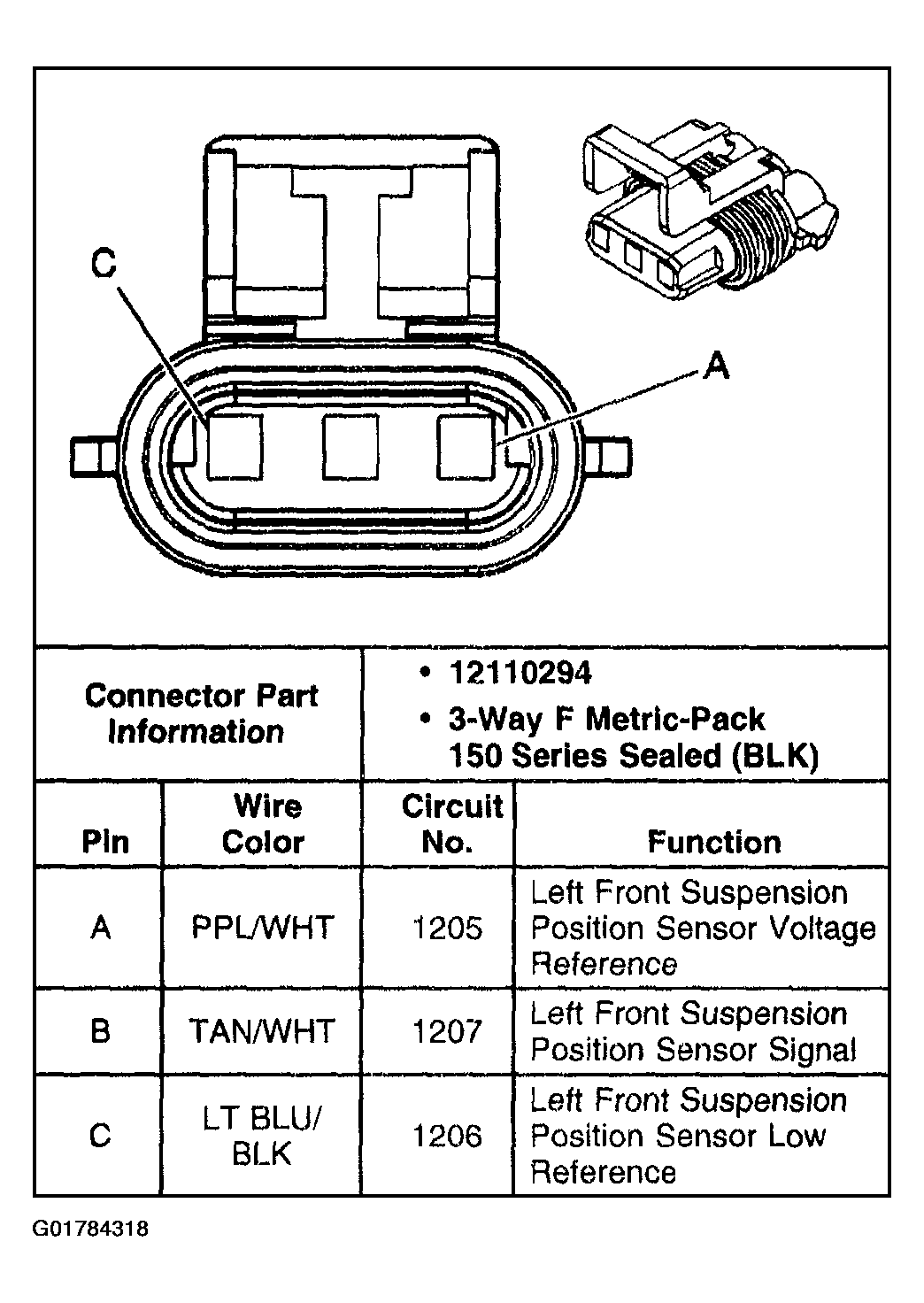

Fig 1: Suspension Position Sensor - LF
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
