Power Steering Gear Disassembled View (Magnasteer)

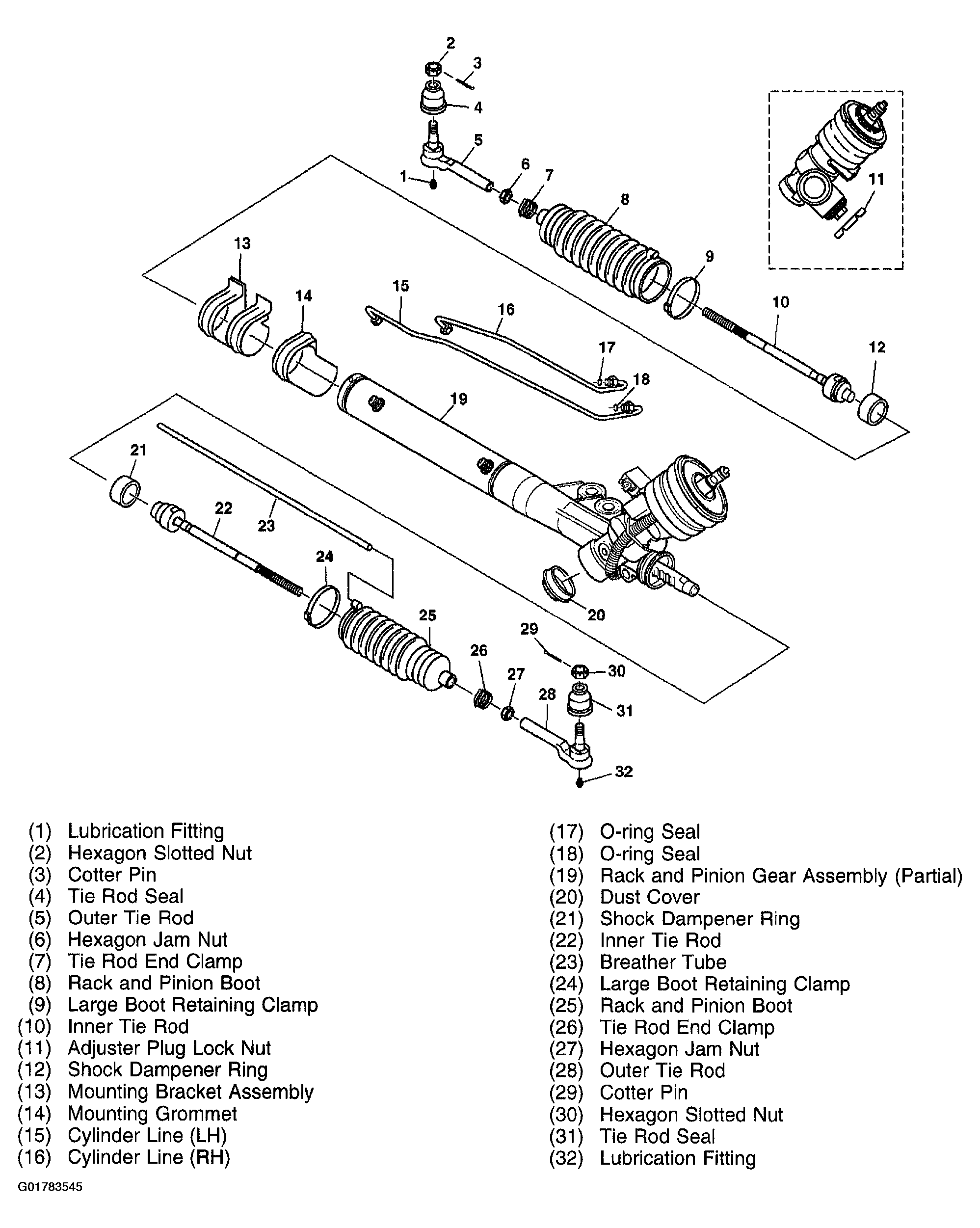

Fig 1: Identifying Magnasteer Power Steering Gear
G01783545Courtesy of GENERAL MOTORS CORP.
