Installation Procedure

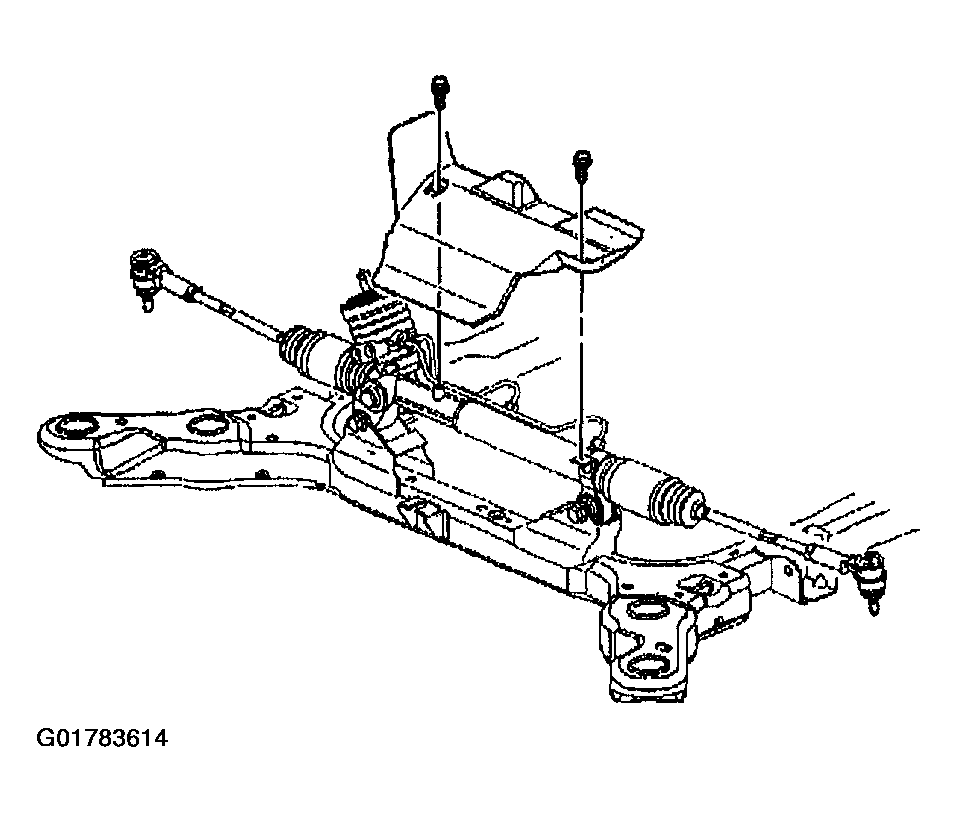

- Install the power steering gear heat shield.CAUTION: Refer to LIFTING AND JACKING THE VEHICLE .
- Install the power steering gear heat shield mounting bolts.
Tighten
Tighten the power steering gear heat shield mounting bolts to 9 N.m (79 lb in).
- Install the electrical harness clip to the power steering gear heat shield.
- Rotate the stabilizer shaft into position.
- Install the stabilizer shaft links. Refer to STABILIZER SHAFT LINK REPLACEMENT .
- Lower the vehicle.
