Installation Procedure

Important:  The electrical contact must rest on the turn signal cancel cam assembly.

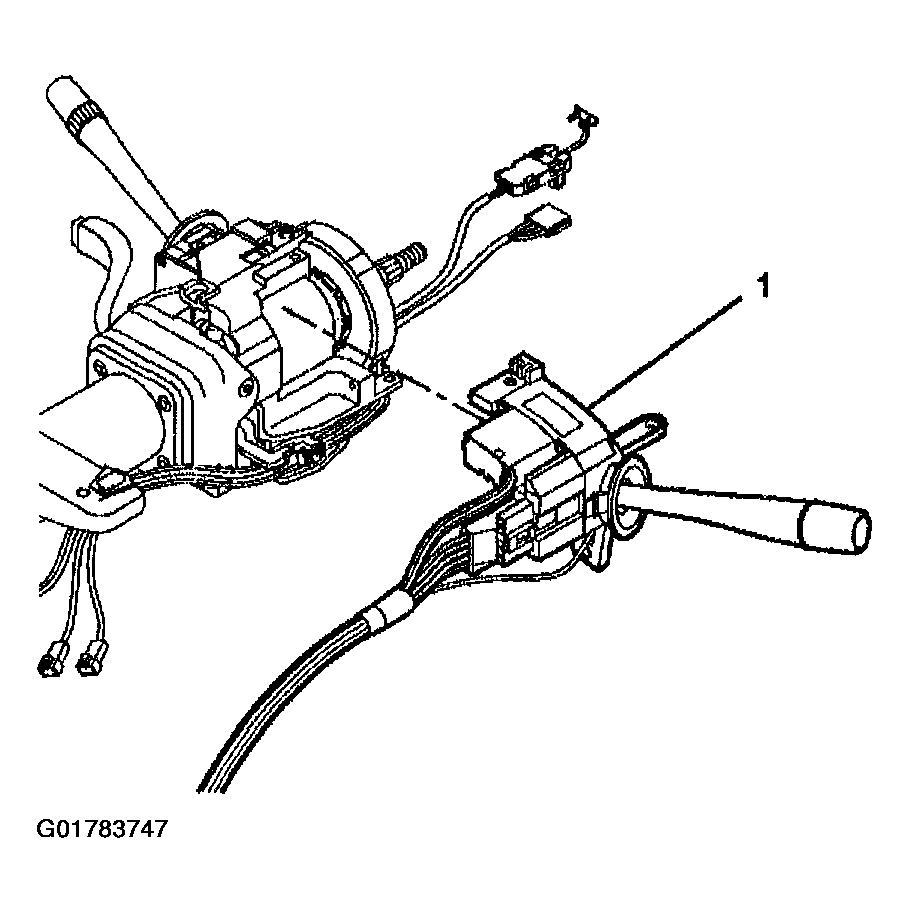

1. Install the multifunction switch (1).
   Fig 1: Installing Multifunction Switch

   Courtesy of GENERAL MOTORS CORP.
   CAUTION: Refer to FASTENER NOTICE .

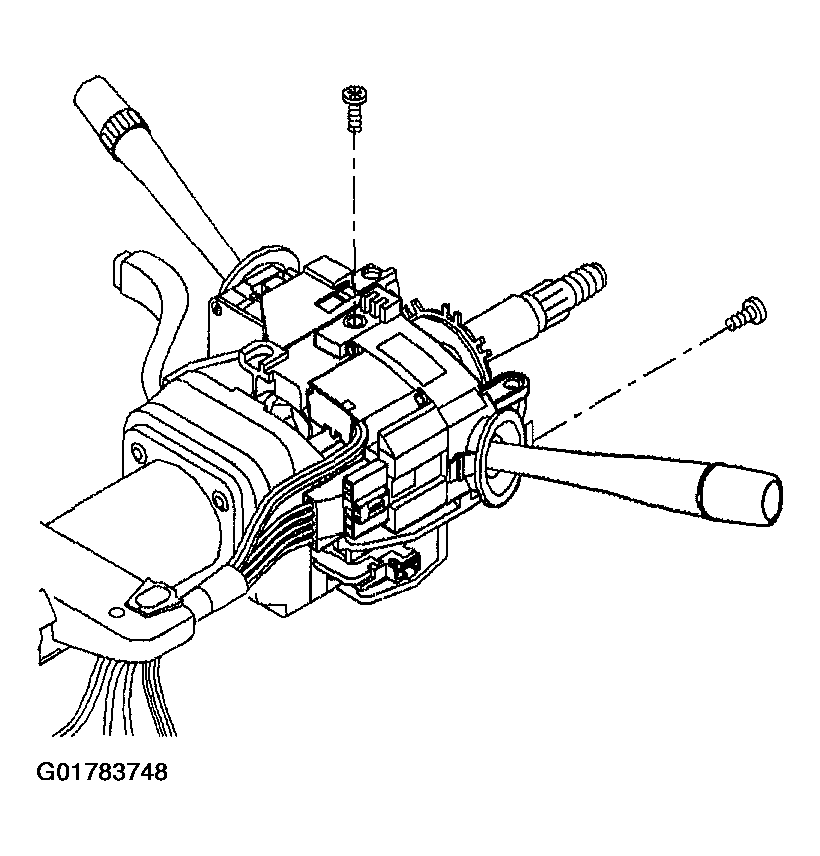

2. Install the multifunction switch retaining screws.

   Tighten

   Tighten the multifunction switch retaining screws to 7 N.m (62 lb in).

   Fig 2: Installing Multifunction Retaining Screws

   Courtesy of GENERAL MOTORS CORP.

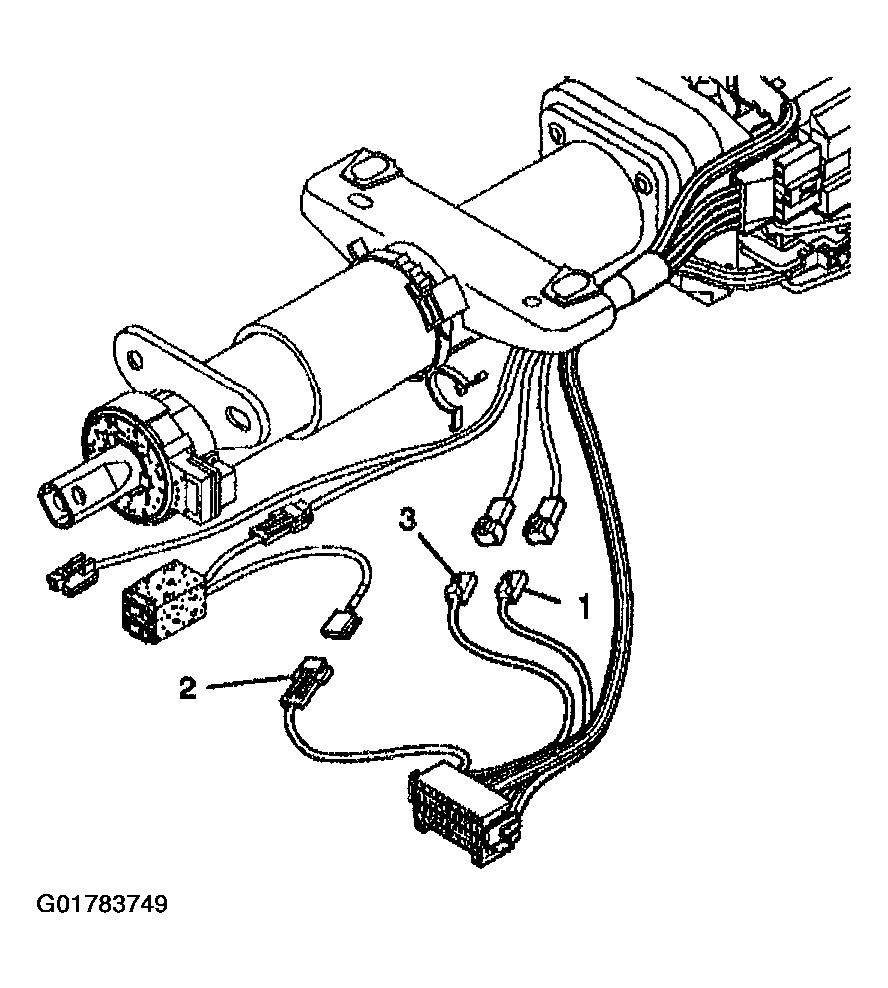

3. Connect the multifunction switch electrical connectors (1,2, and 3).
   Fig 3: Connecting Multifunction Switch Electrical Connectors

   Courtesy of GENERAL MOTORS CORP.

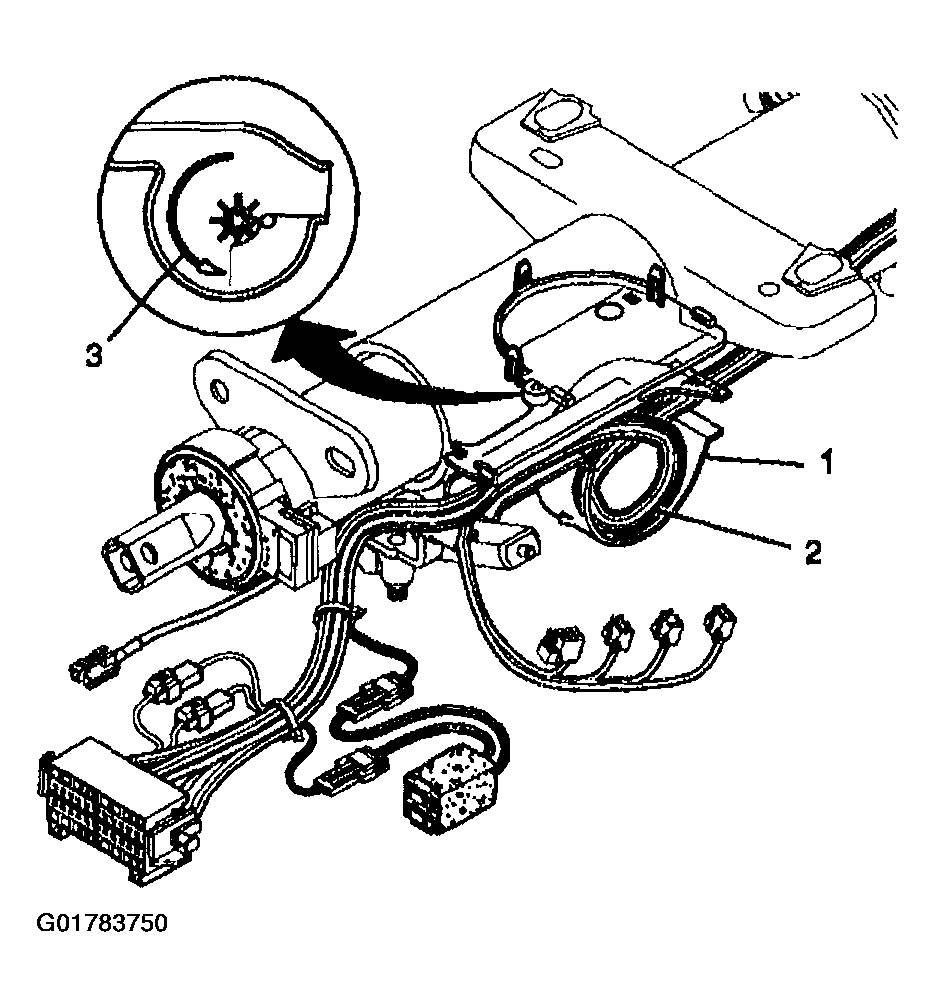

4. Install the steering column wire harness (2) to the lower steering column wire harness shield (1).
   Fig 4: Installing Steering Column Wire Harness

   Courtesy of GENERAL MOTORS CORP.

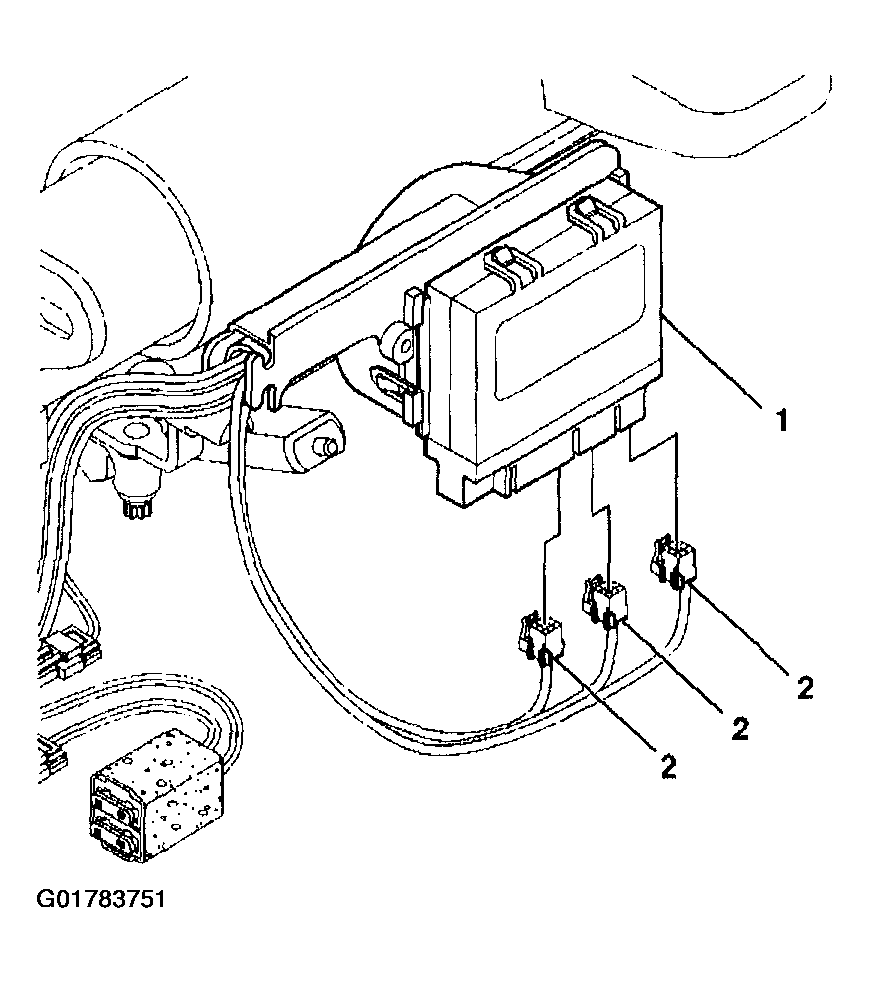

5. Connect the steering column control module electrical connectors
   Fig 5: Connecting Steering Column Control Module Electrical Connectors

   Courtesy of GENERAL MOTORS CORP.
6. Install the steering column wire harness tie straps.
7. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
8. Enable the SIR system. Refer to ACTIVATING SYSTEM .

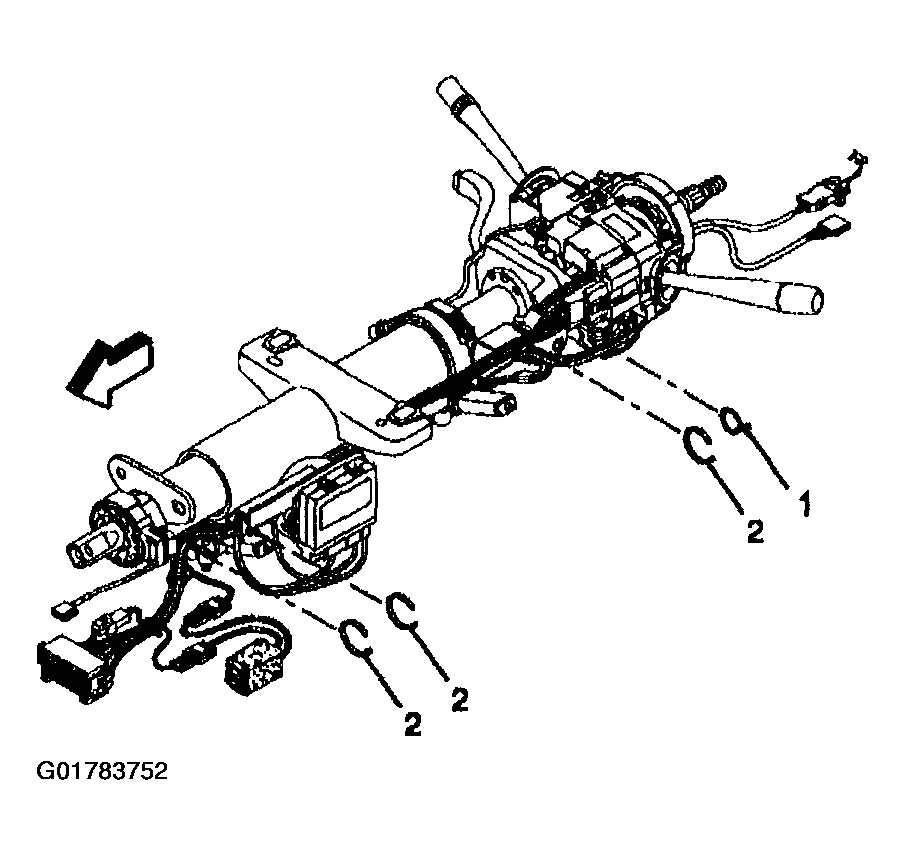

   Fig 6: Installing Steering Column Wire Harness Straps

   Courtesy of GENERAL MOTORS CORP.
