Cadillac
›
2003
›
CTS Automatic
›
Repair and Diagnosis
›
Accessories & Equipment
›
Communication Devices
›
Data Link Communication System
›
Component Locator
›
Data Link Communications Connector End Views
Data Link Communications Connector End Views

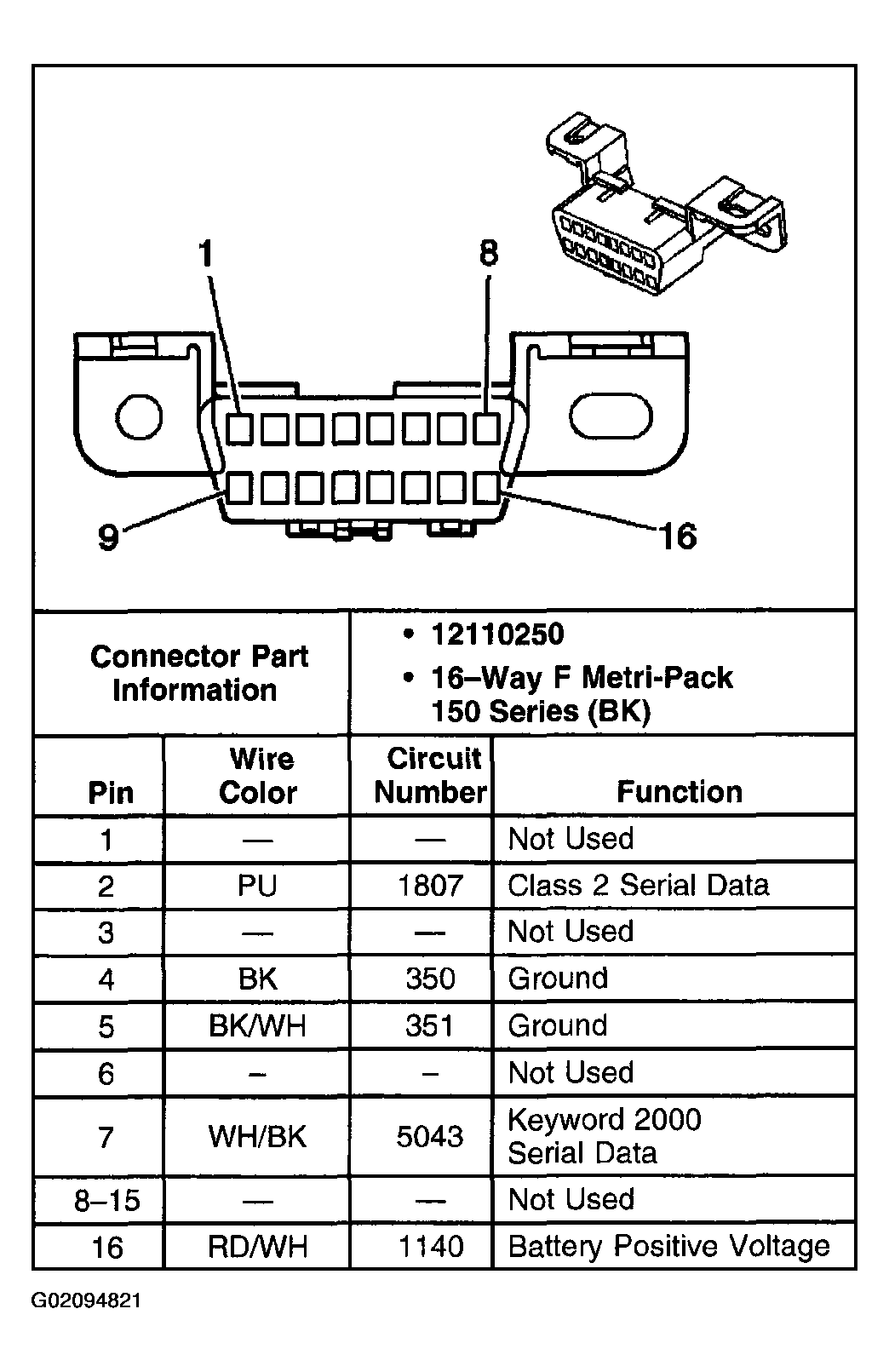

Fig 1: Data Link Communications Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
