Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the screws securing the data link connector to the I/P carrier.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

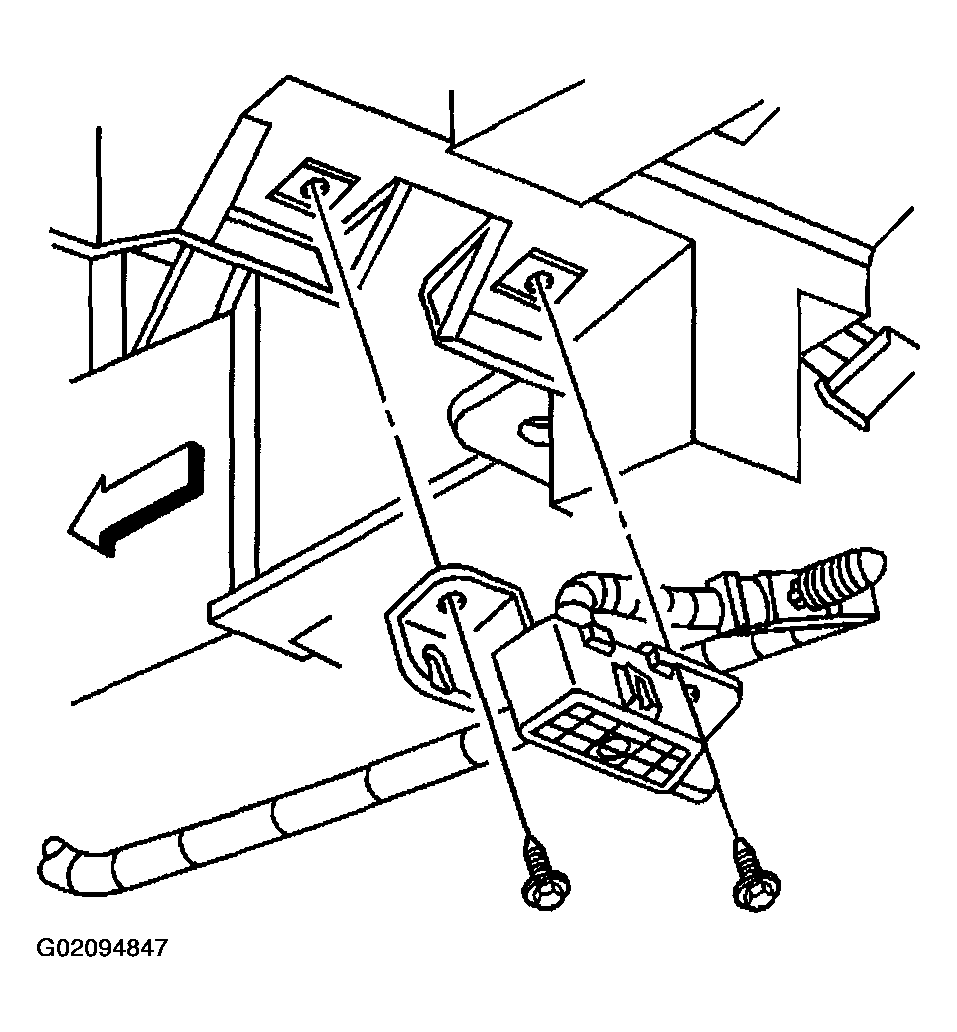

    Fig 1: Installing Screws Securing Data Link Connector To I/P Carrier
    G02094847Courtesy of GENERAL MOTORS CORP.
  2. Install the I/P closeout panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE .
