Removal Procedure

Lower the I/P closeout panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE .
Remove the screws securing the data link connector to the I/P carrier.

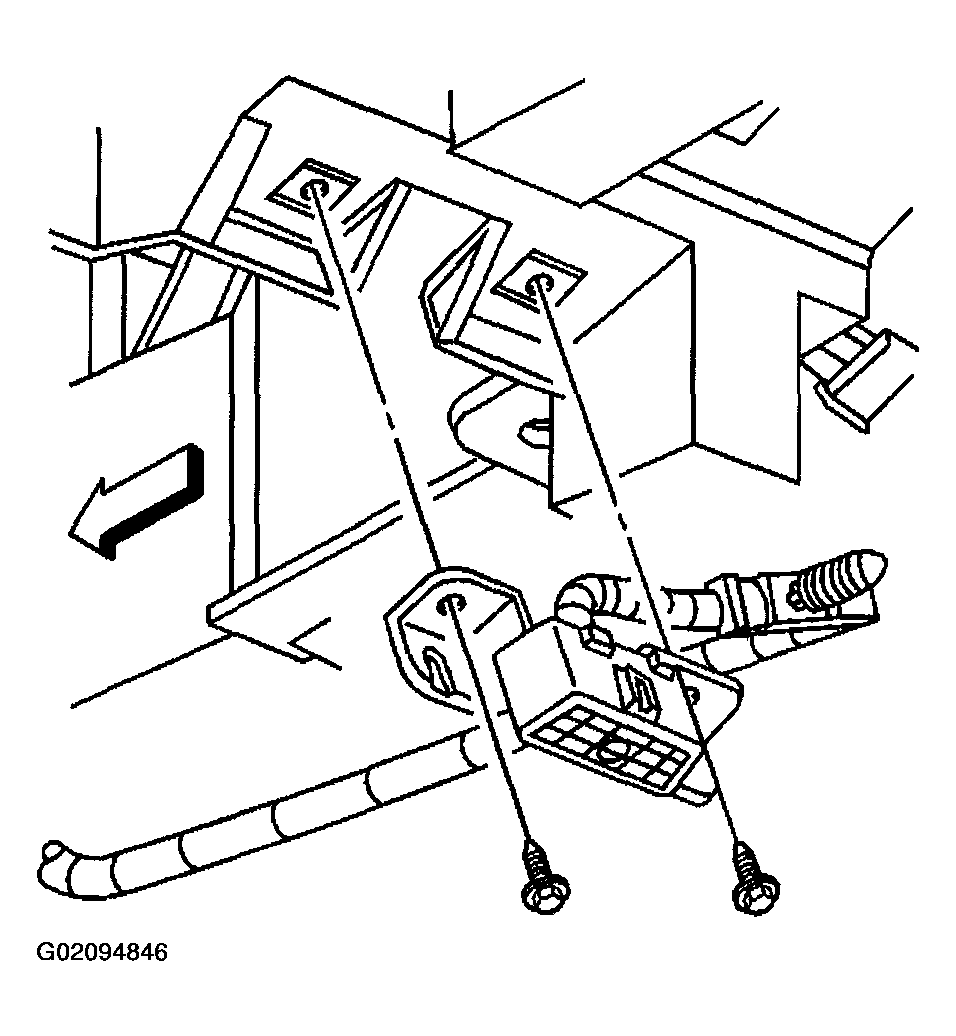

Fig 1: Removing Screws Securing Data Link Connector To I/P Carrier
Courtesy of GENERAL MOTORS CORP.
