Cellular Communication Component Views

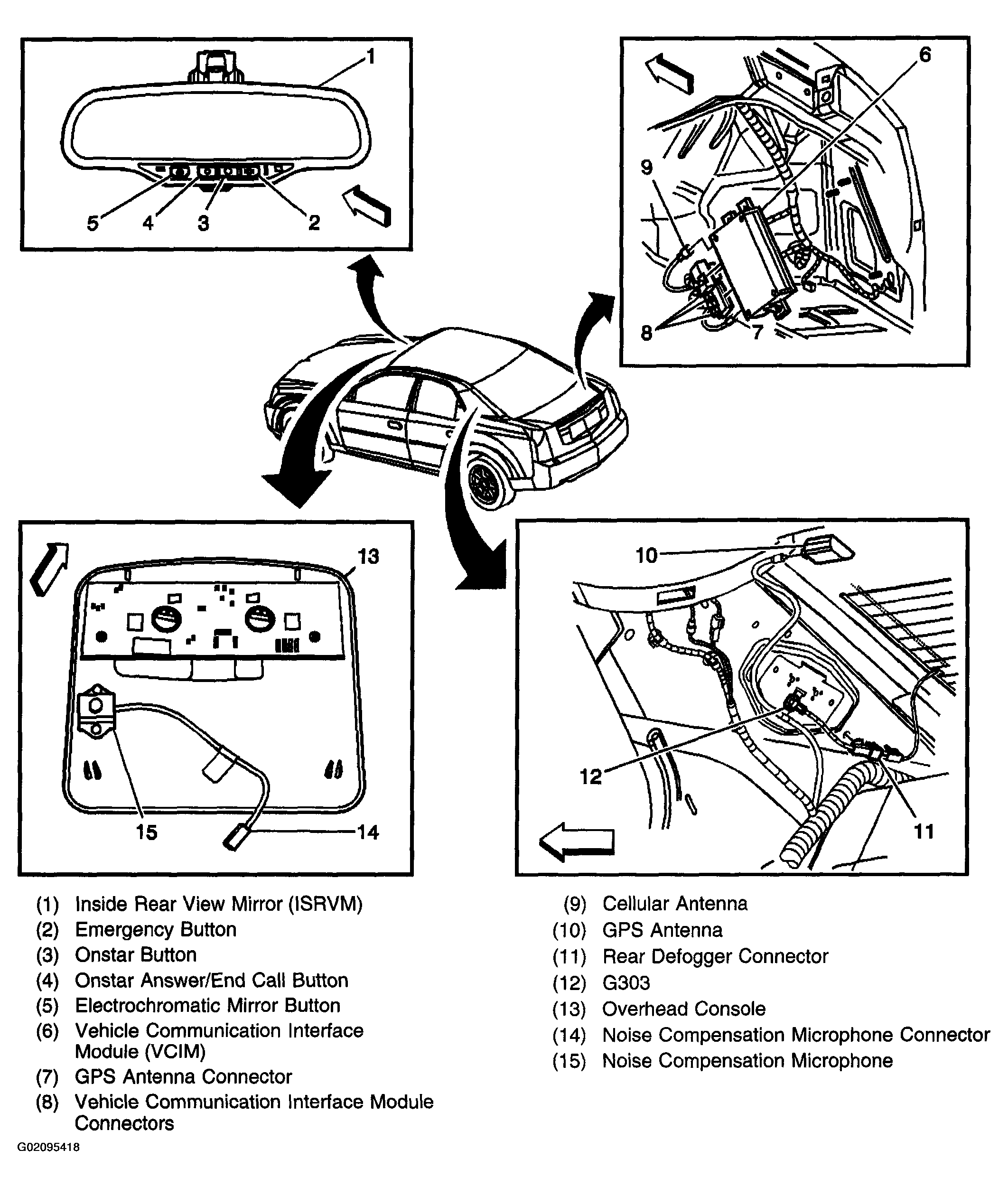

Fig 1: Component Location - Cellular Communication Sub-System
G02095418Courtesy of GENERAL MOTORS CORP.
