Power Door Systems Component Views

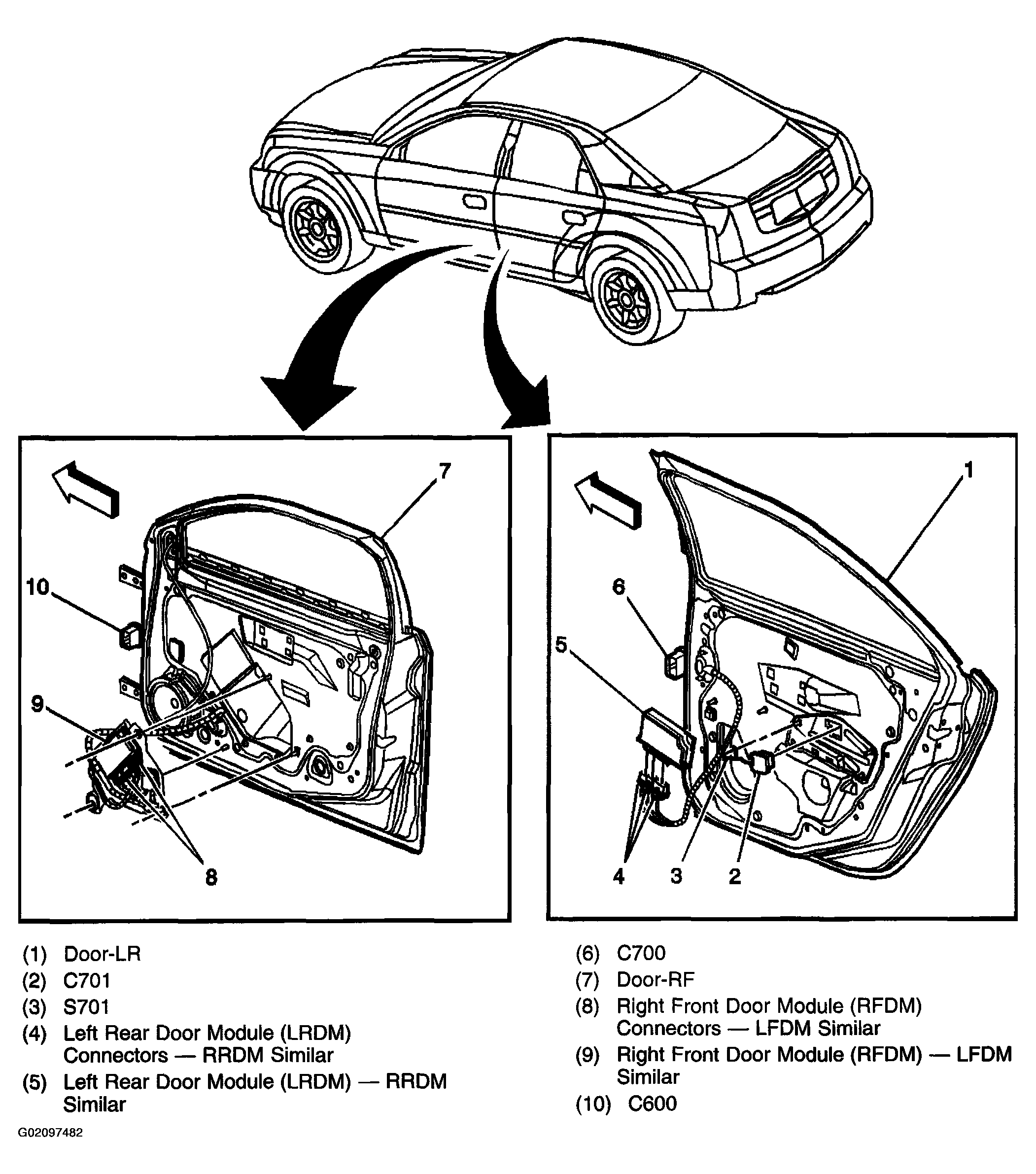

Fig 1: Locating Power Door Sub-System Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

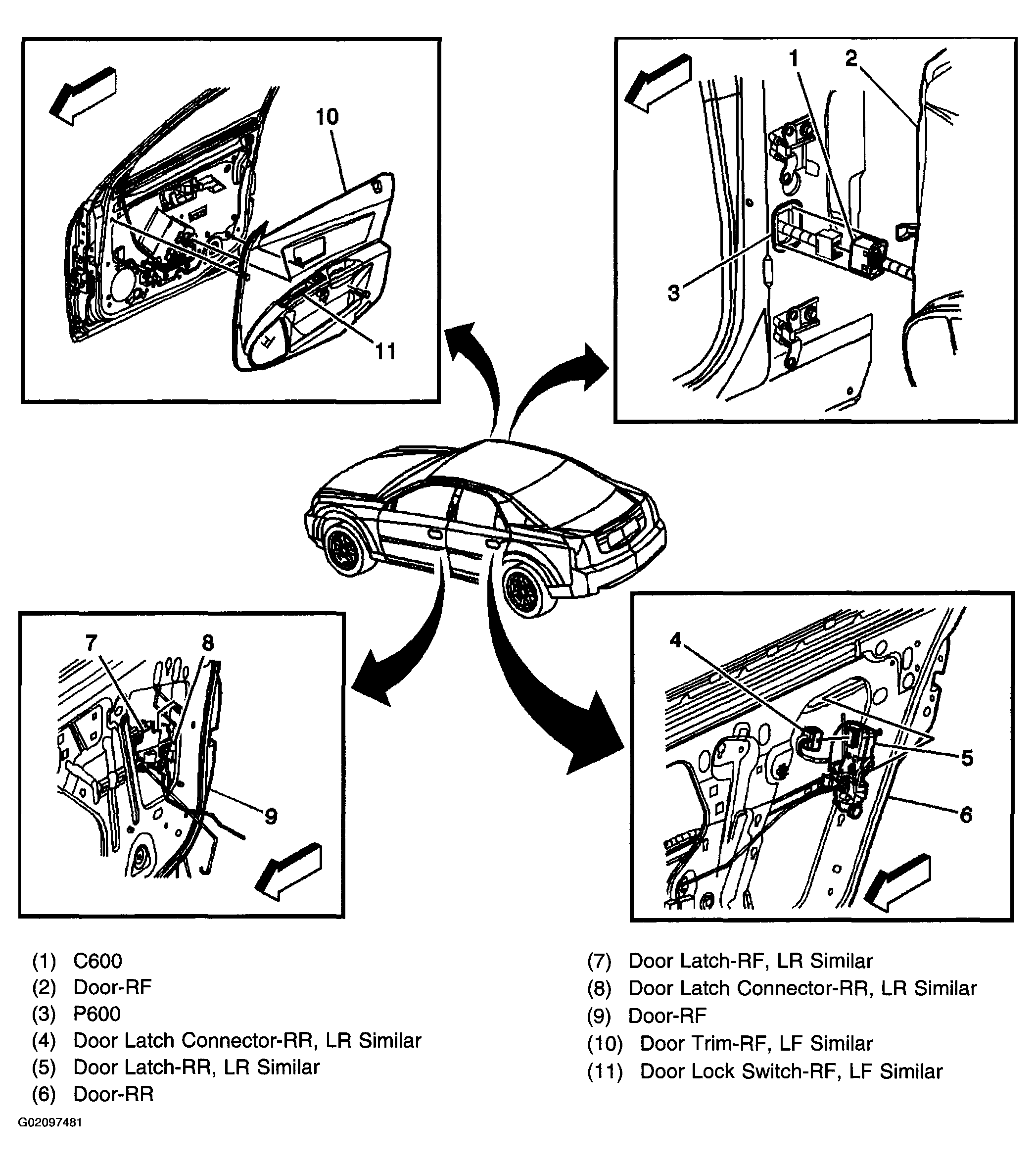

Fig 2: Locating Power Door Sub-System Components (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
