ABS Component Views
ABS Component Views

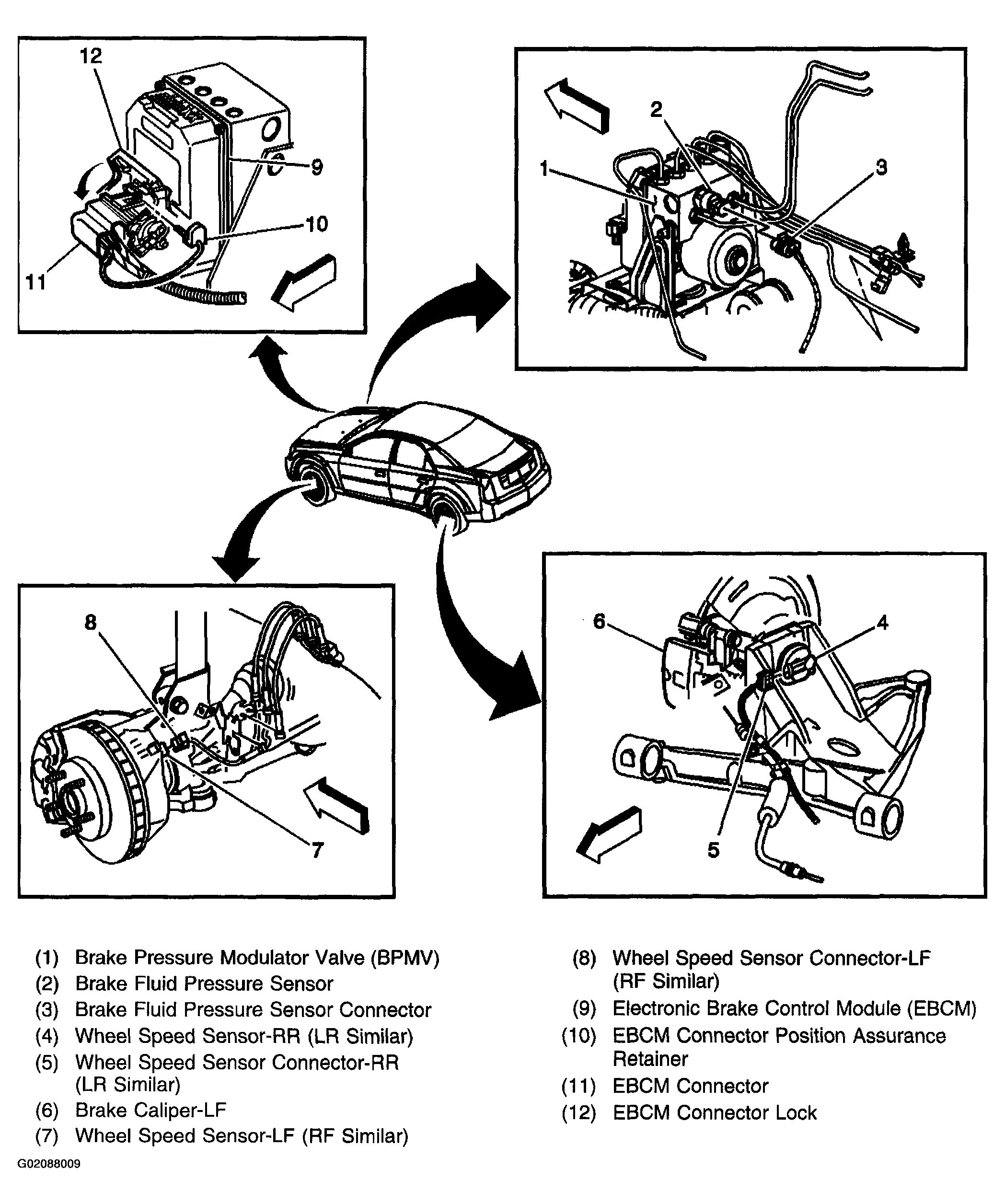

Fig 1: EBCM And Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.

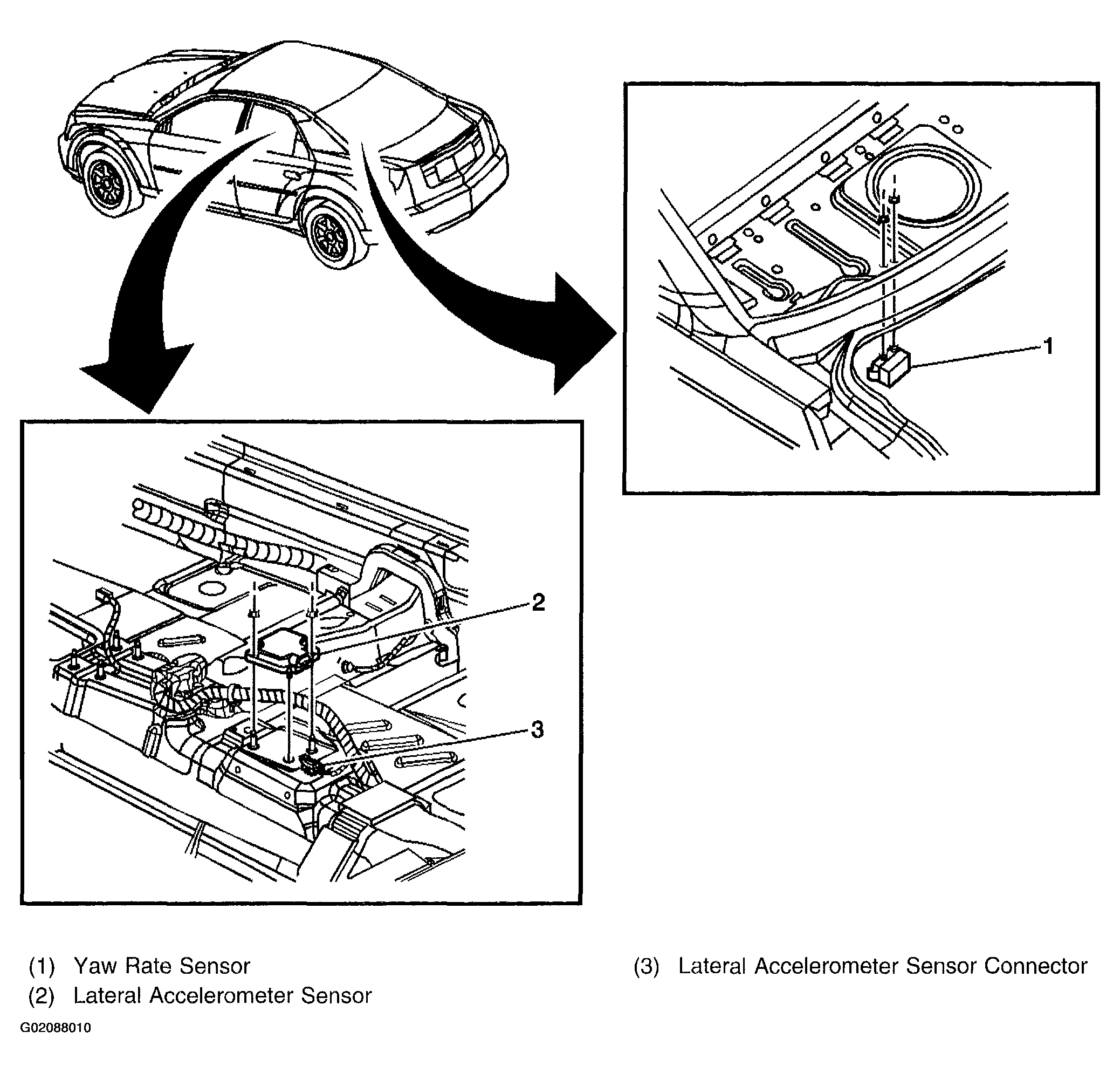

Fig 2: Yaw and Accelerometer Sensors
Courtesy of GENERAL MOTORS CORP.

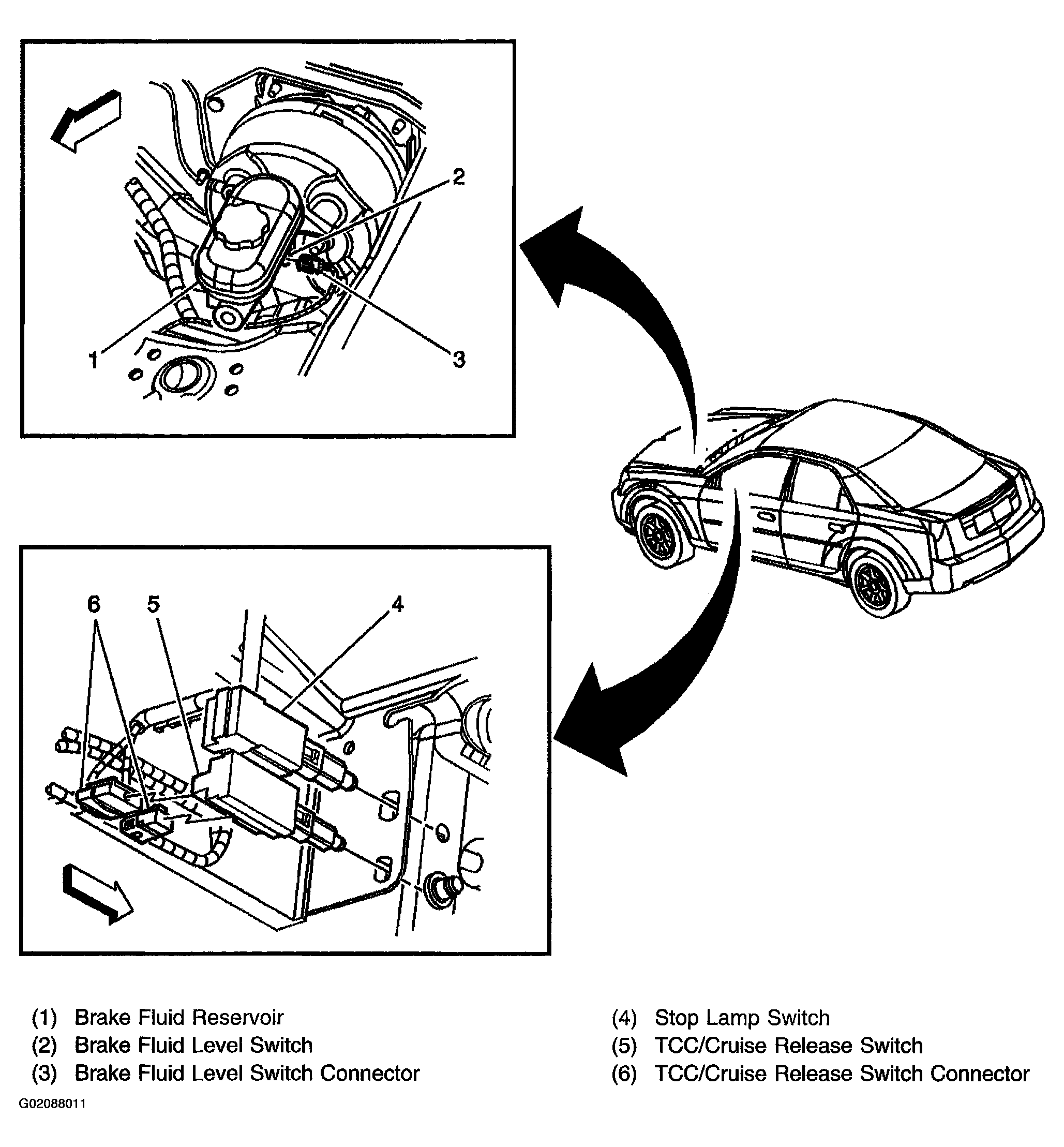

Fig 3: Brake and Brake Fluid Level Switches
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
