Removal Procedure

  1. Turn OFF the ignition.
  2. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT -- REAR WINDOW SHELF in Interior Trim.
  3. Disconnect the yaw rate sensor electrical connector.

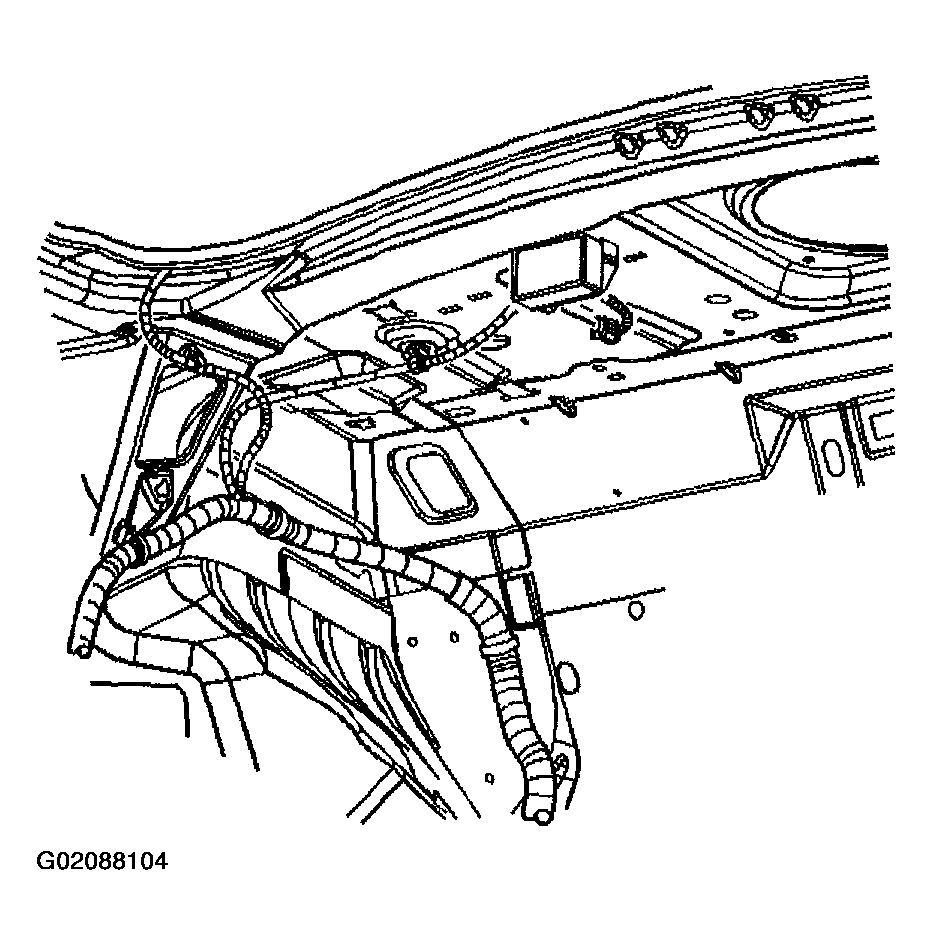

    Fig 1: Disconnecting Yaw Rate Sensor Electrical Connector
    G02088104Courtesy of GENERAL MOTORS CORP.
  4. Remove the 2 yaw rate sensor mounting nuts.
  5. Remove the yaw rate sensor.

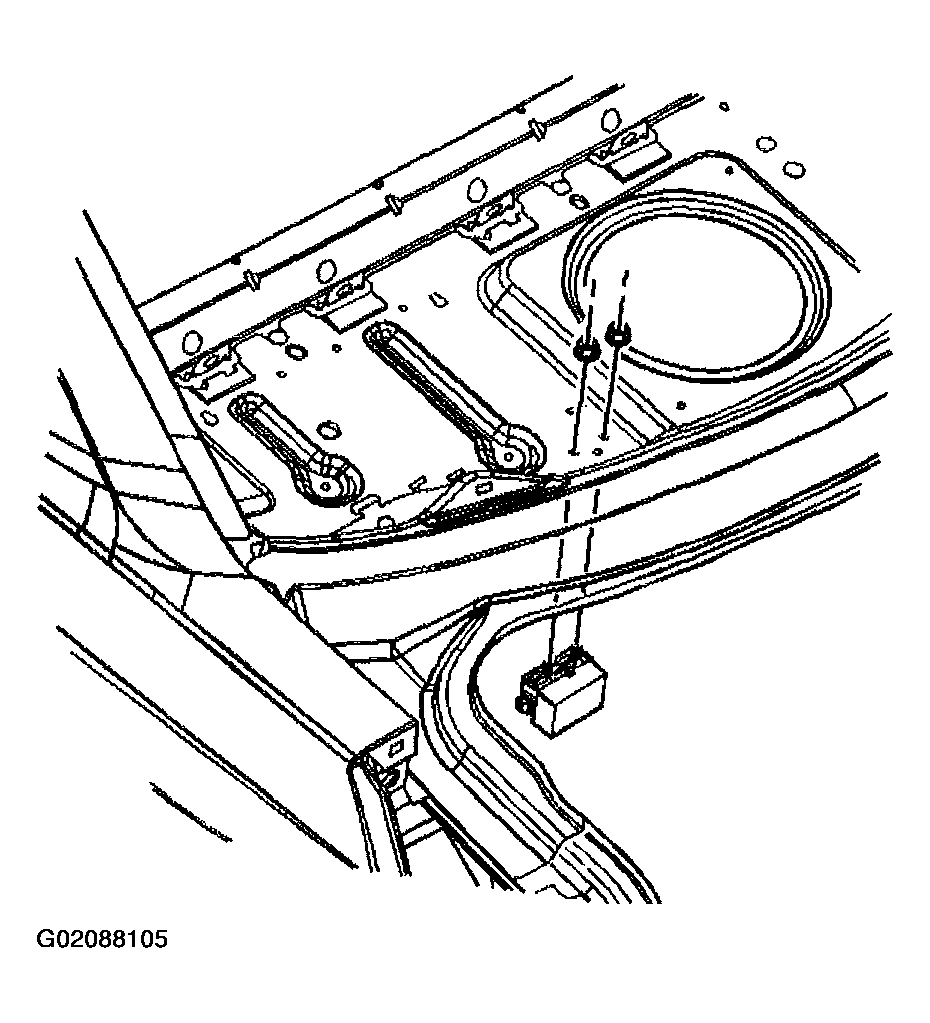

    Fig 2: Yaw Rate Sensor Mounting Nuts
    G02088105Courtesy of GENERAL MOTORS CORP.
