Installation Procedure

  1. Place a NEW exhaust manifold gasket over the cylinder head studs.
  2. Position the left exhaust manifold to the left cylinder head.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the left exhaust manifold nuts.

    Tighten

    Tighten the exhaust manifold nuts to 20 N.m (15 lb ft).

  4. Install the heated oxygen sensor if previously removed. Refer to HEATED OXYGEN SENSOR in Removal & Installation.
  5. Install the left catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT - LEFT  .

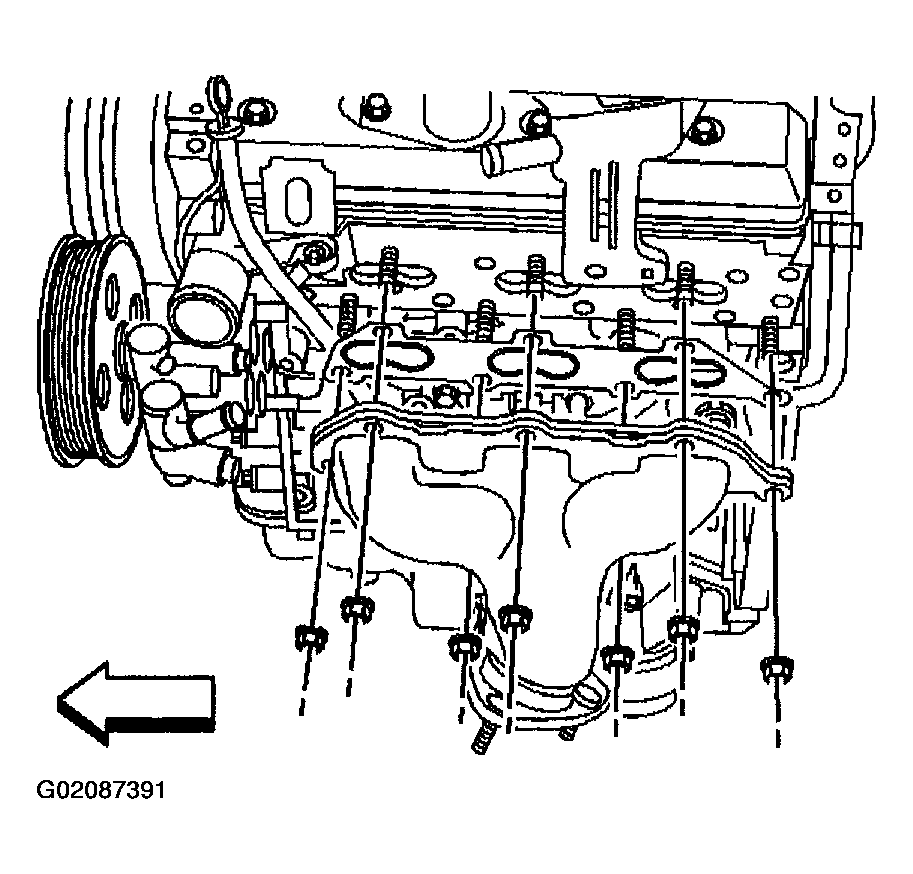

    Fig 1: Installing Left Exhaust Manifold Nuts
    G02087391Courtesy of GENERAL MOTORS CORP.
  6. Connect the heated oxygen sensor pigtail (1) to the wiring harness connector (2).

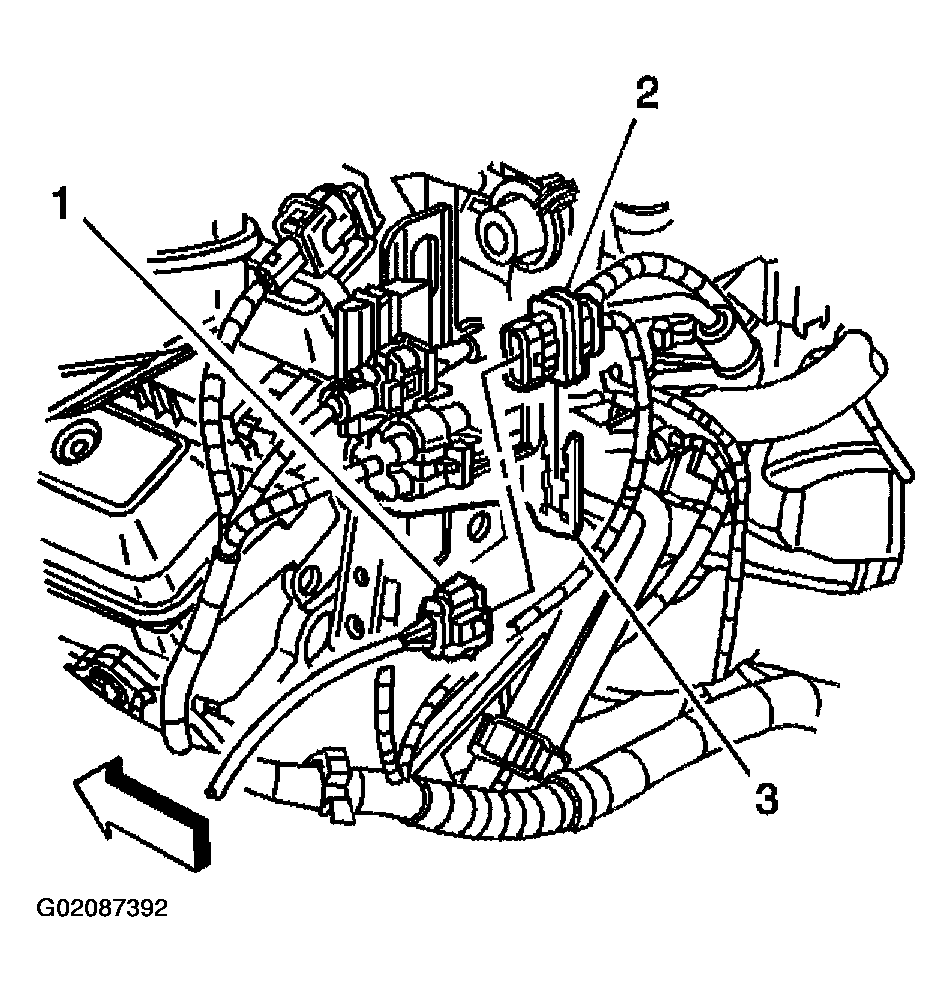

    Fig 2: Connecting Heated Oxygen Sensor Pigtail
    G02087392Courtesy of GENERAL MOTORS CORP.
  7. Install the accessory mounting bracket. Refer to ACCESSORY MOUNTING BRACKETS REPLACEMENT in Engine Mechanical - 2.6L and 3.2L.
