Installation Procedure

Loosely install the J 28467-501 (1) to the ends of the strut tower tube J 28467-3 (2).

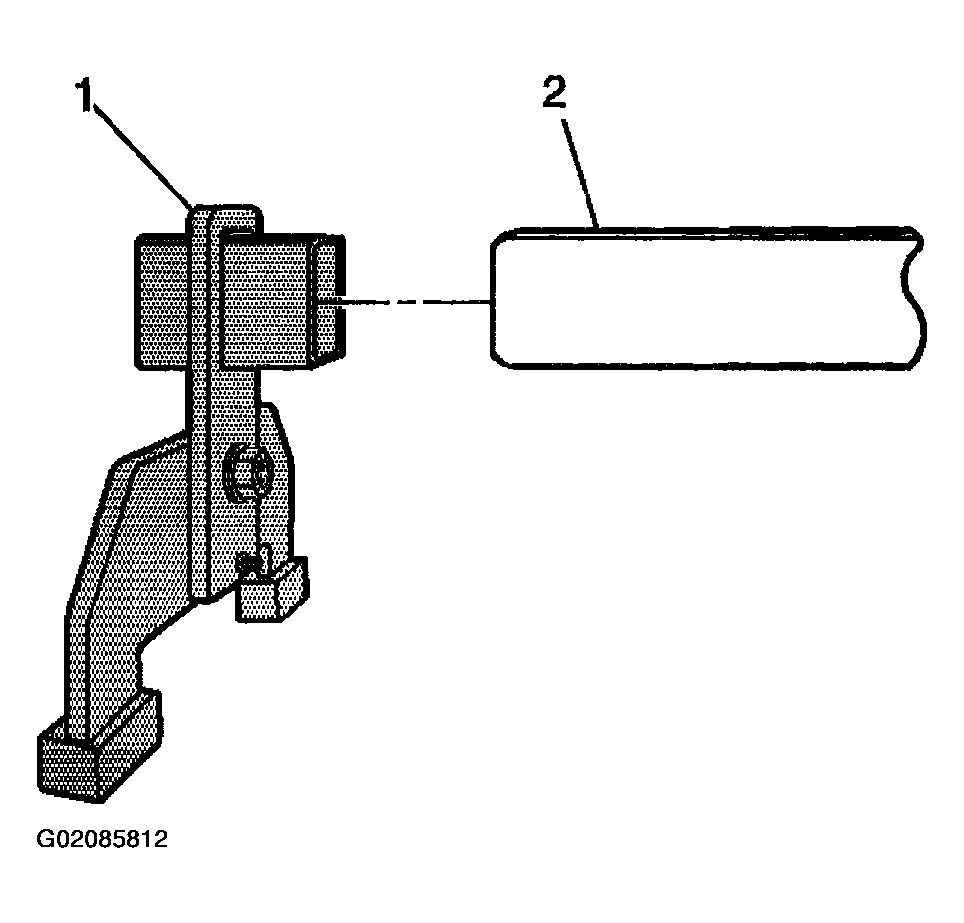

Fig 1: Installing J 28467-501 To J 28467-3
Courtesy of GENERAL MOTORS CORP.
Place the strut tower tube J 28467-3 and the J 28467-501 on top of both the left and right fender lips, over the engine rear lift bracket.

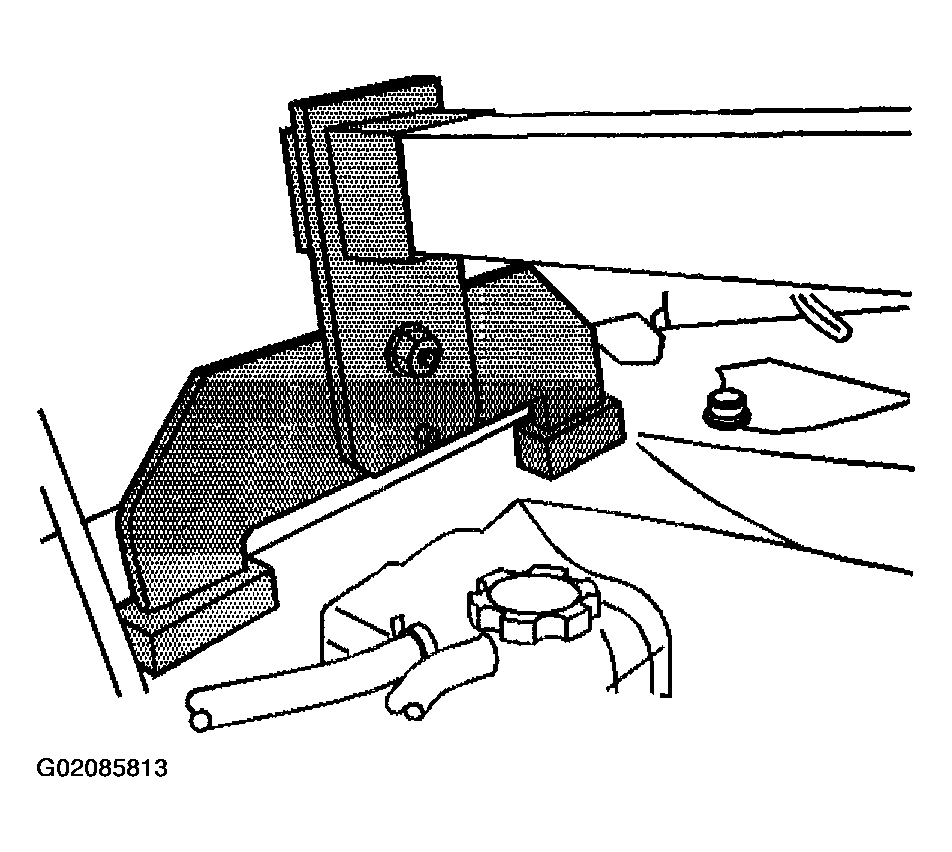

Fig 2: Aligning J 28467-3 & J 28467-501 On Fender Lips
Courtesy of GENERAL MOTORS CORP.

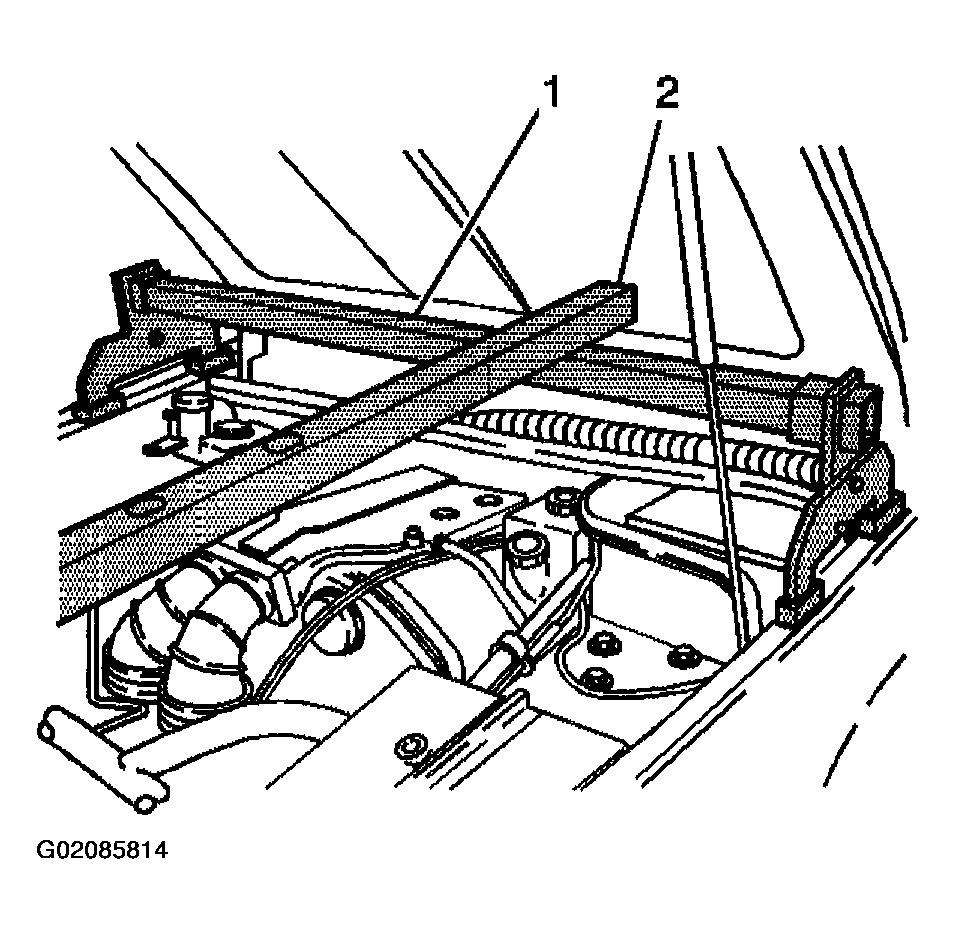

Install the radiator shelf tube J 28467-2A (2) on top of the strut tower tube J 28467-3 (1) over the engine front lift bracket.

Fig 3: Installing J 28467-2A On J 28467-3
Courtesy of GENERAL MOTORS CORP.
Install the round tube of the front support assembly J 28467-4A through the large hole in the radiator shelf tube J 28467-2A. The hole used in the radiator shelf tube J 28467-2A depends on the vehicle application.
Place the rubber padded foot of the front support assembly J 28467-4A on the upper tie bar.

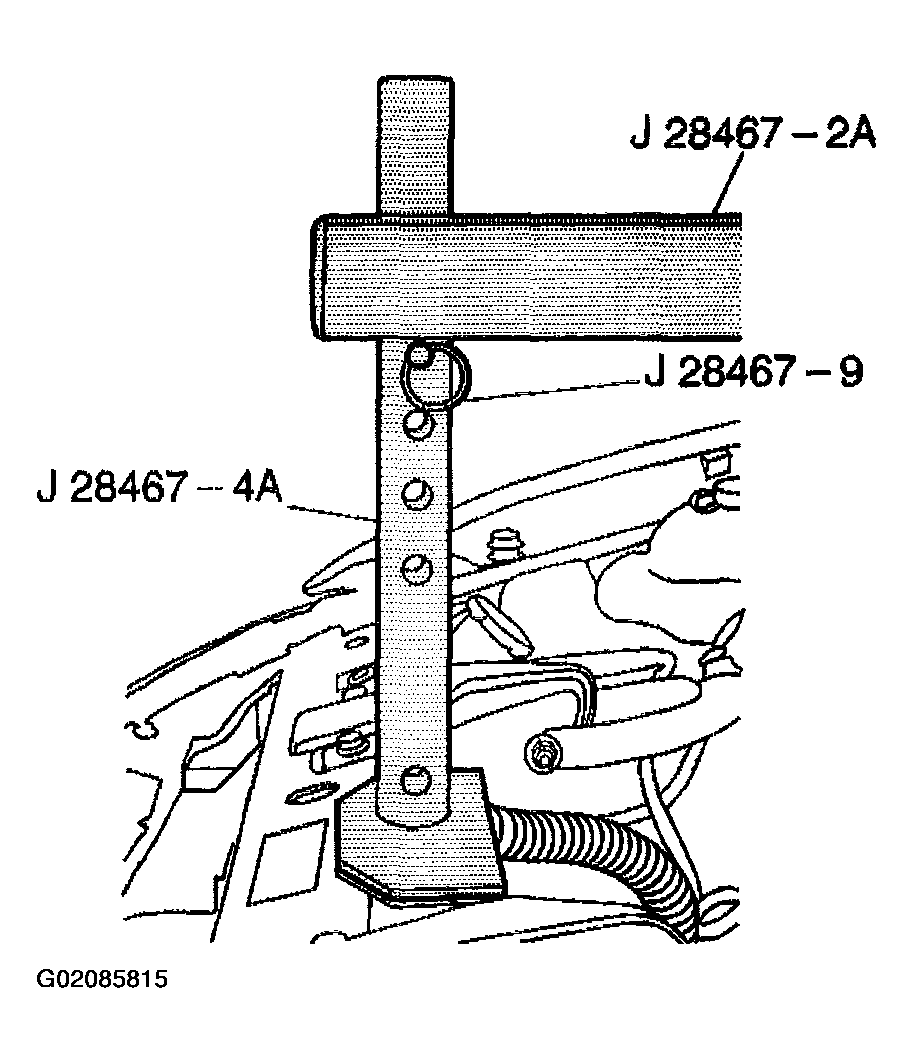

Install the 7/16 in x 2.0 in quick release pin J 28467-9 through the hole in the front support assembly J 28467-4A in order to level the radiator shelf tube J 28467-2A.

Fig 4: Installing Quick Release Pin In J 28467-4A
Courtesy of GENERAL MOTORS CORP.
Install the cross bracket assembly J 28467-1A.
Hand tighten the cross bracket assembly J 28467-1A wing nuts.

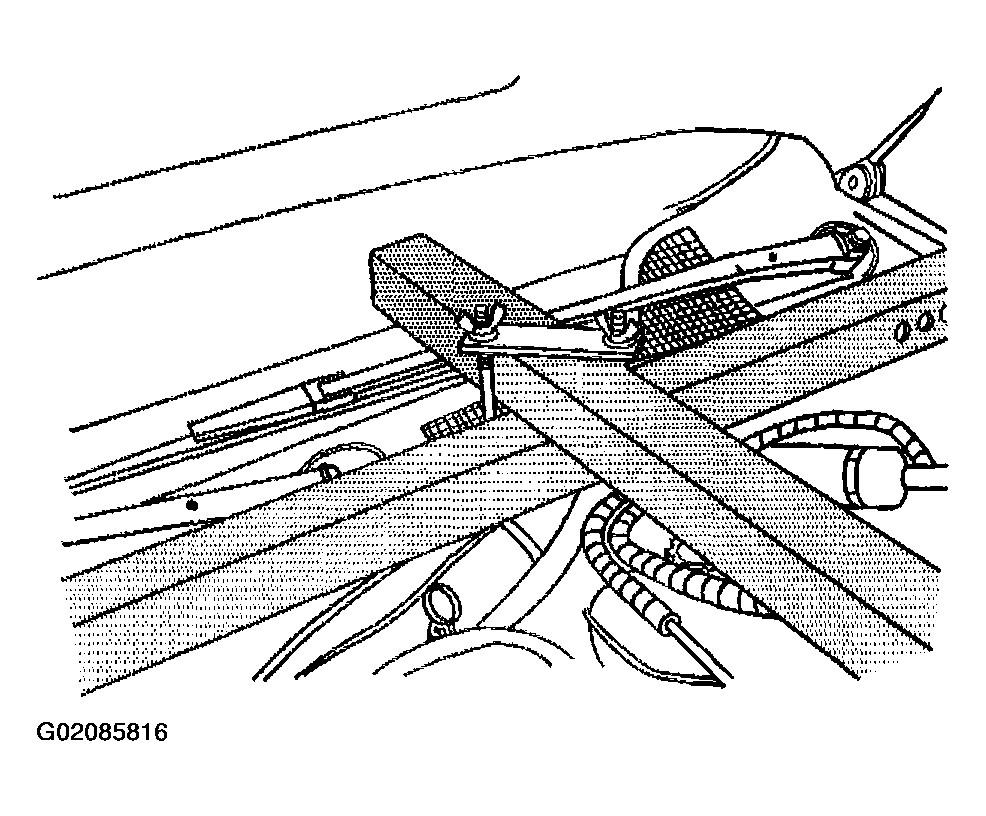

Fig 5: View Of J 28467-1A
Courtesy of GENERAL MOTORS CORP.
Install the lift hook J 28467-7A through the lift hook bracket J 28467-6A.
Install the 1/2 in lift hook washer and lift hook wing nut J 28467-34 onto the lift hook J 28467-7A.

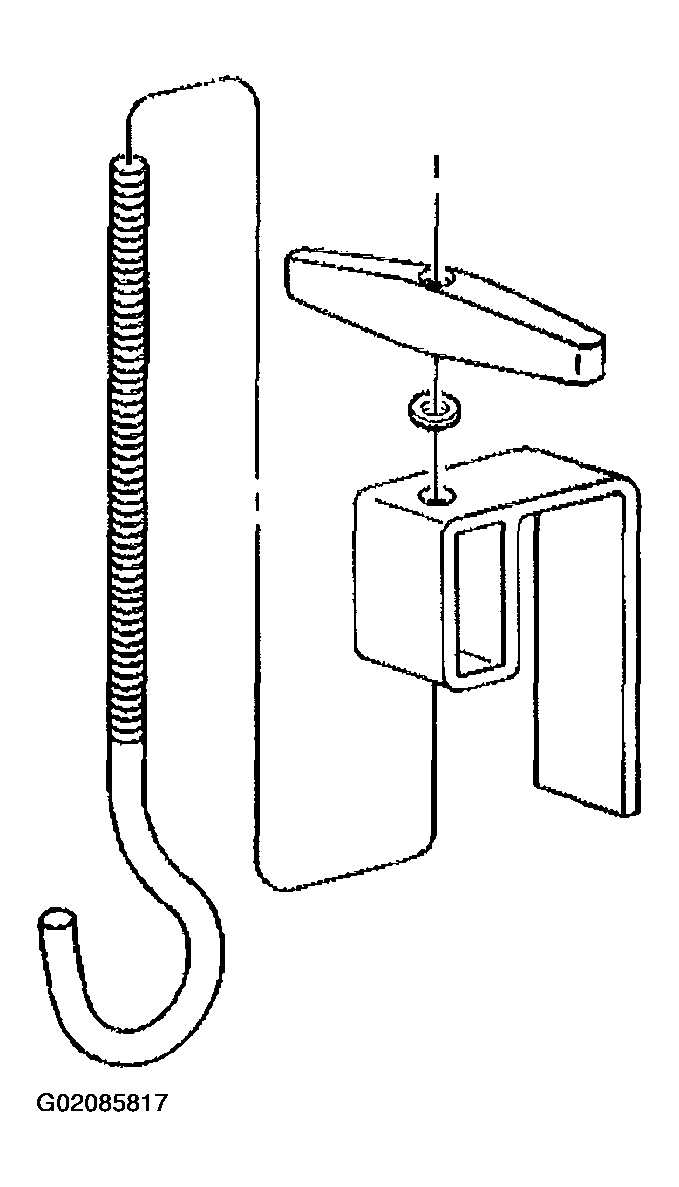

Fig 6: Installing Lift Hook Through Lift Hook Bracket
Courtesy of GENERAL MOTORS CORP.
Install the assembled lift hook bracket J 28467-6A (1) over the strut tower tube J 28467-3 (2).
Adjust the assembled lift hook bracket J 28467-6A (1) in order to align the hook with the engine rear lift bracket.

Fig 7: Installing Lift Hook Bracket Over Strut Tower Tube
Courtesy of GENERAL MOTORS CORP.
Install the lift hook J 28467-7A through the engine rear lift bracket. Ensure the hook does not damage the surrounding components.

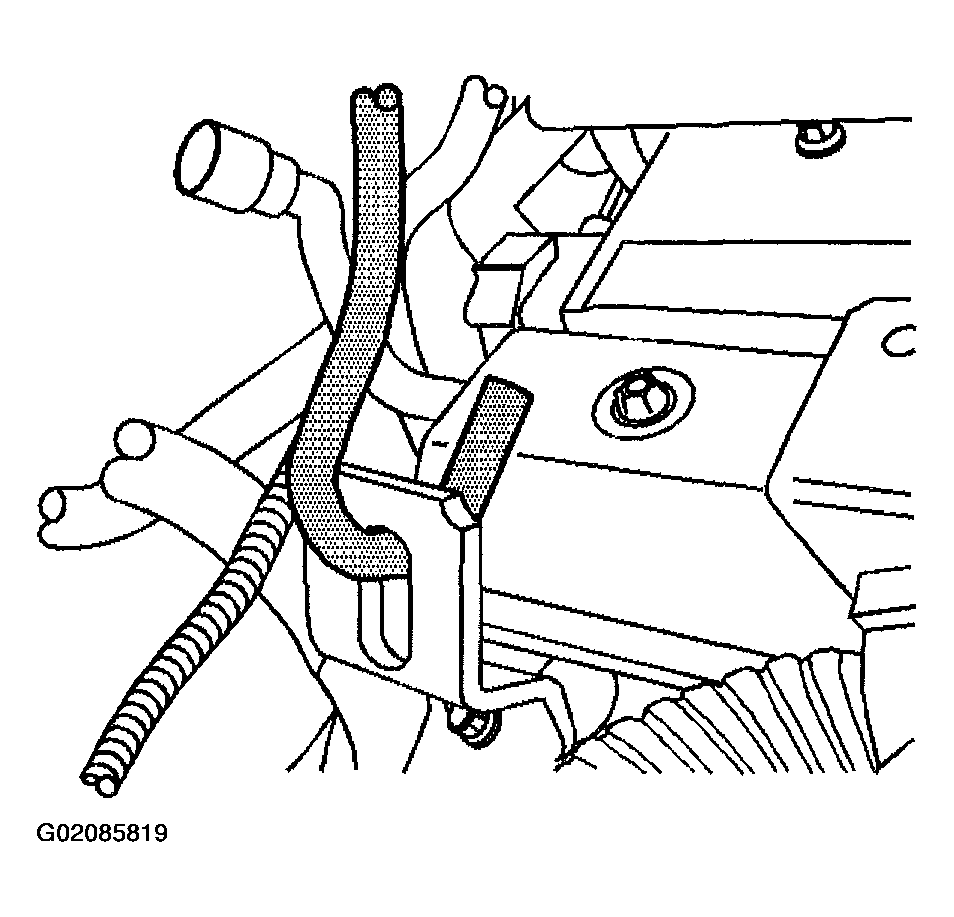

Fig 8: Installing Lift Hook Through Engine Rear Lift Bracket
Courtesy of GENERAL MOTORS CORP.
Repeat steps 9 and 10.
Install the assembled lift hook bracket J 28467-6A (1) over the radiator shelf tube J 28467-2A (2).
Adjust the assembled lift hook bracket J 28467-6A (1) in order to align the hook with the engine front lift bracket.

Fig 9: Installing Lift Hook Bracket Over Radiator Shelf Tube
Courtesy of GENERAL MOTORS CORP.
Install the lift hook J 28467-7A through the engine front lift bracket. Ensure the hook does not damage the surrounding components.

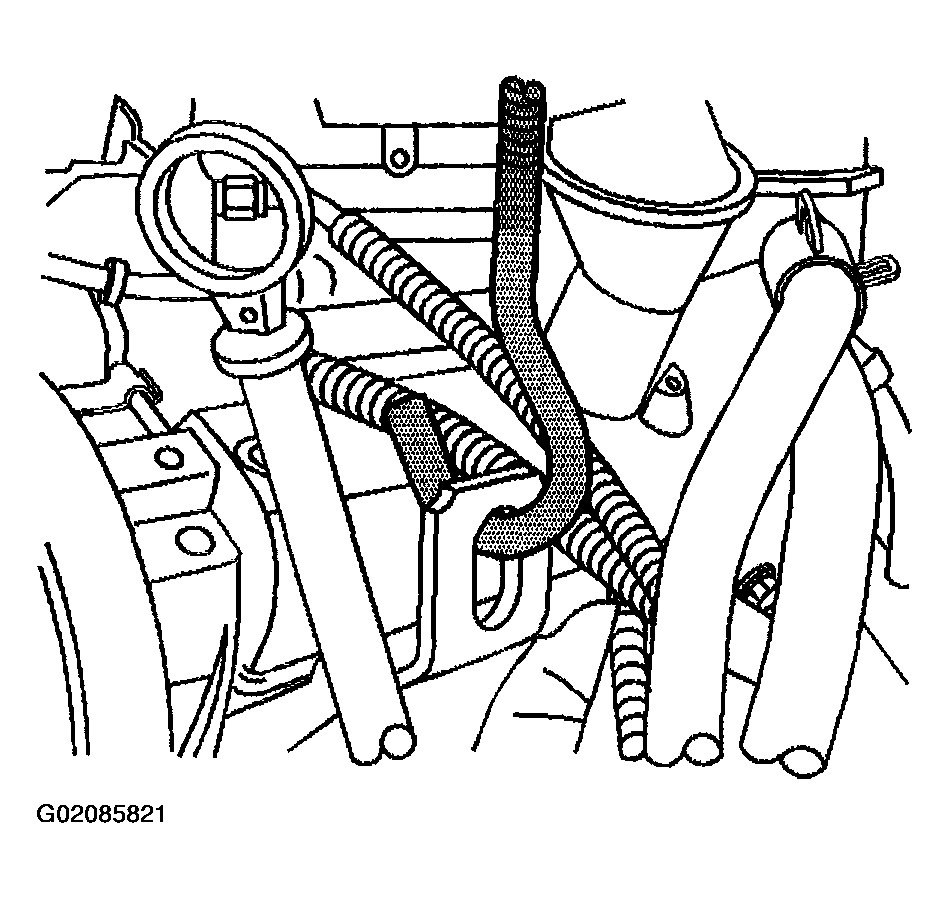

Fig 10: Installing Lift Hook Through Engine Front Lift Bracket
Courtesy of GENERAL MOTORS CORP.
Hand tighten the lift hook wing nuts J 28467-34 securely to remove all slack from the engine support fixture assembly.

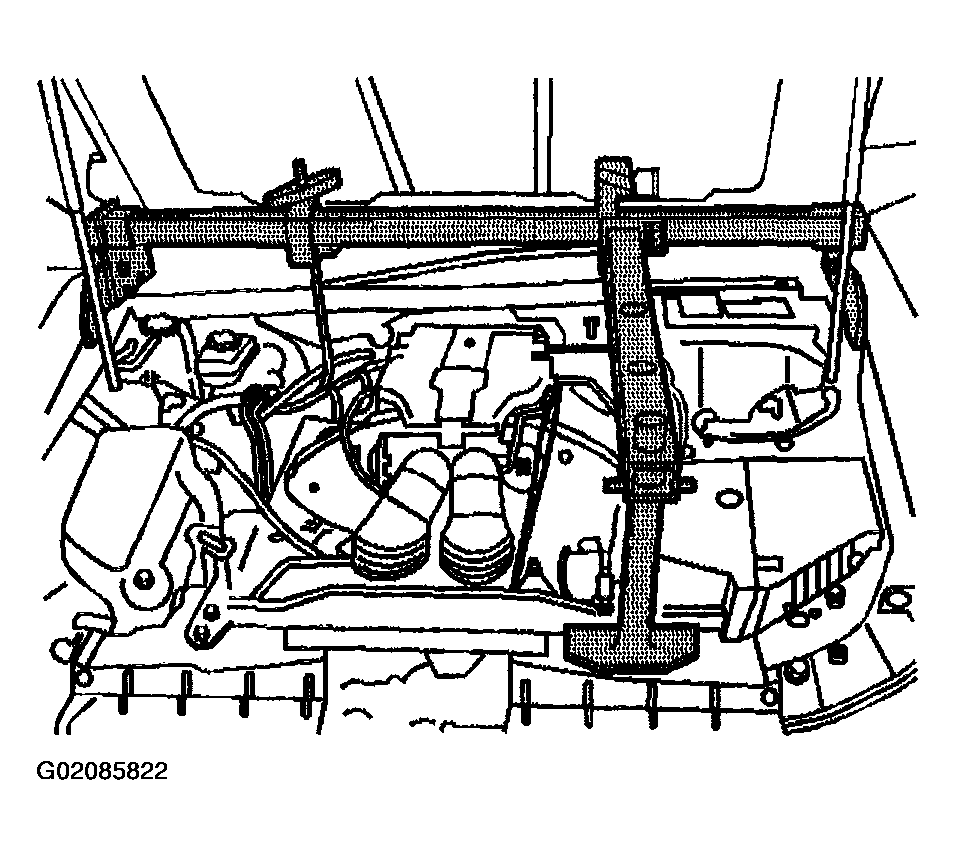

Fig 11: View Of Engine Support Fixture
Courtesy of GENERAL MOTORS CORP.
