Fuel Tank Draining
WARNING:
Gasoline or gasoline vapors are highly flammable. A fire could occur if an ignition source is present. Never drain or store gasoline in an open container, due to the possibility of fire or explosion. Place a dry chemical (Class B) fire extinguisher nearby before performing any on-vehicle service procedures. Failure to follow these precautions may result in personal injury.
NOTE:
Transjel Lubricant (J-36850), Fuel Flapper Door Holder (J-42960-2) and Fuel Drain Hose (J-45004) are required to perform this procedure. See Figure
-Figure
.
- Remove fuel filler cap. Install Fuel Flapper Door Holder into fuel fill pipe in order to hold door open. Lubricate fuel drain hose with Transjel Lubricant or equivalent to aid in hose insertion and removal. Do not use an unapproved lubricant.

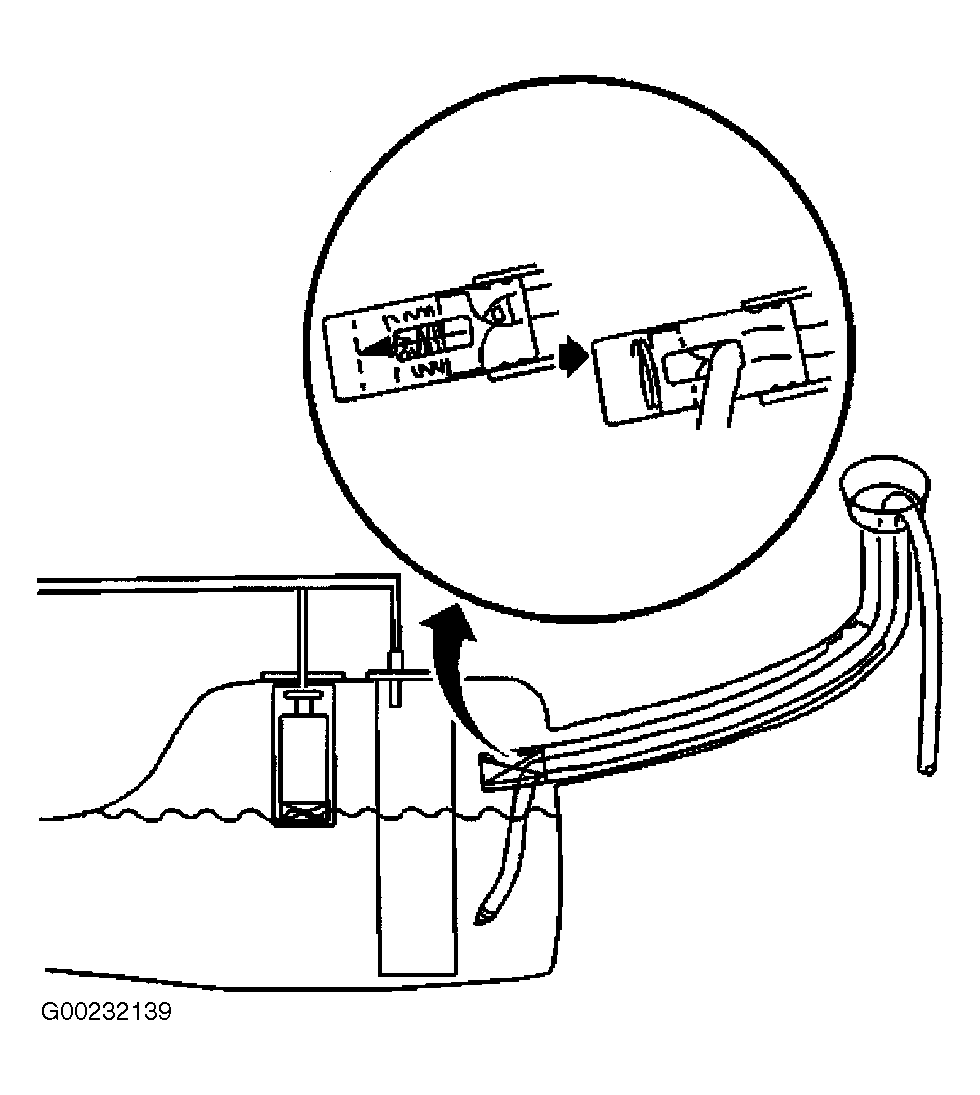

- Insert Fuel Drain Hose into fuel tank until hose reaches bottom of fuel tank. See Fig 1 . Use an air operated pump device in order to drain fuel into an approved gasoline container. Up to 7 gallons (26 liters) of residual fuel may remain in secondary side of fuel tank. Simultaneously twist and pull in order to remove Fuel Drain Hose from fuel tank.
