Diagnostic Procedures

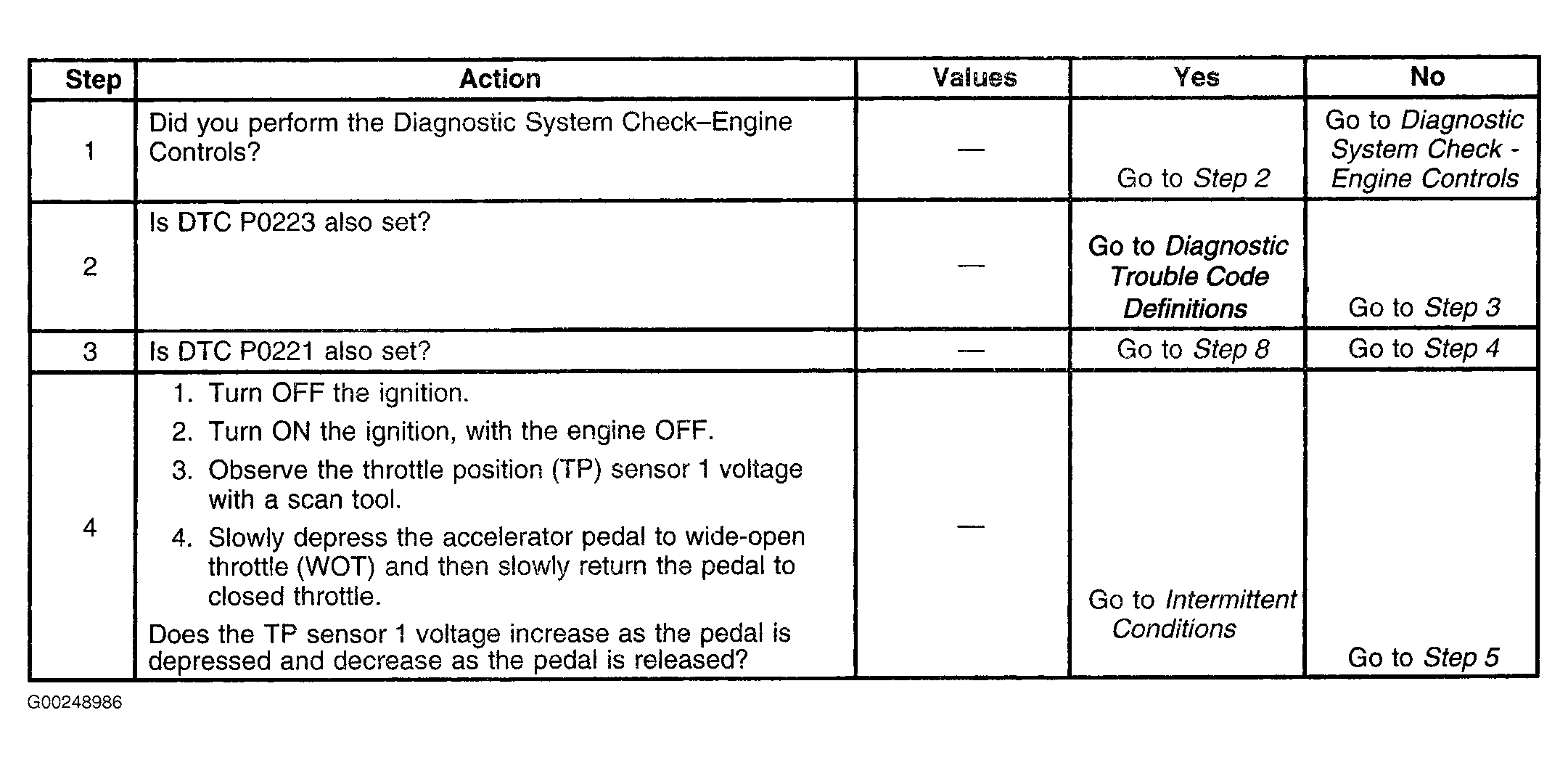

Fig 1: DTC P0121: Throttle Position Sensor Circuit Insufficient Activity (Steps 1-4)
G00248986Courtesy of GENERAL MOTORS CORP.

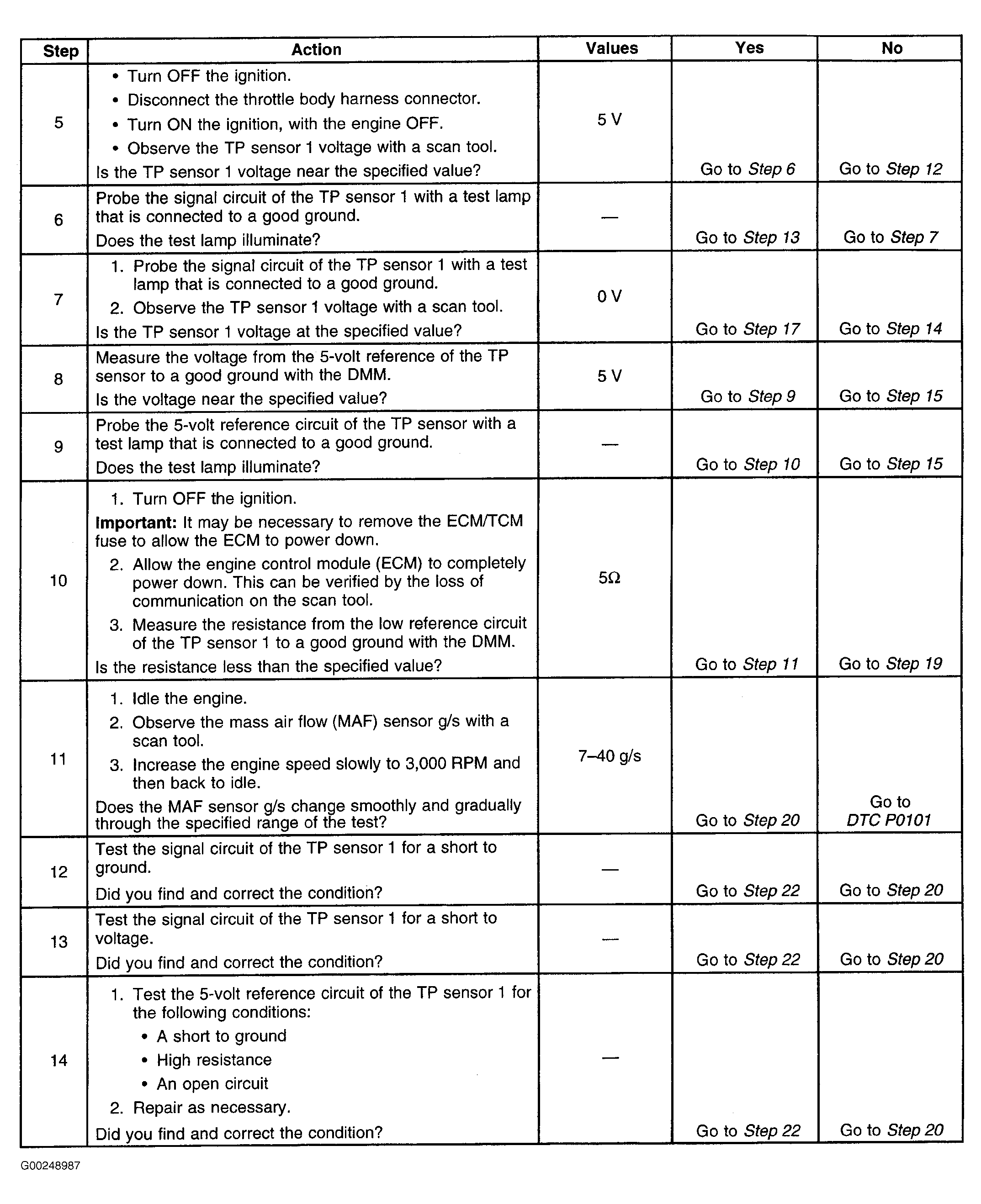

Fig 2: DTC P0121: Throttle Position Sensor Circuit Insufficient Activity (Steps 5-14)
G00248987Courtesy of GENERAL MOTORS CORP.

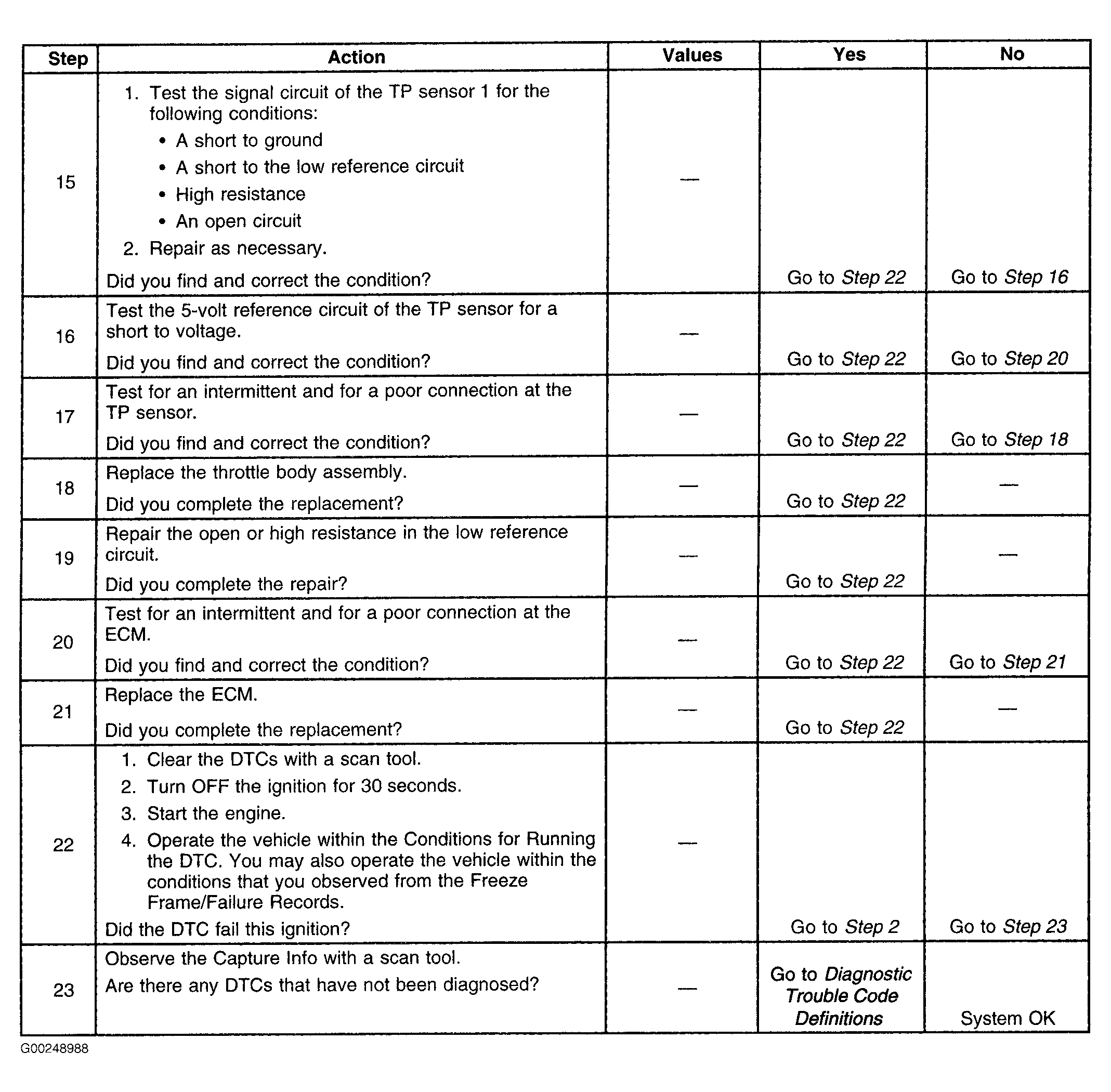

Fig 3: DTC P0121: Throttle Position Sensor Circuit Insufficient Activity (Steps 15-23)
G00248988Courtesy of GENERAL MOTORS CORP.
